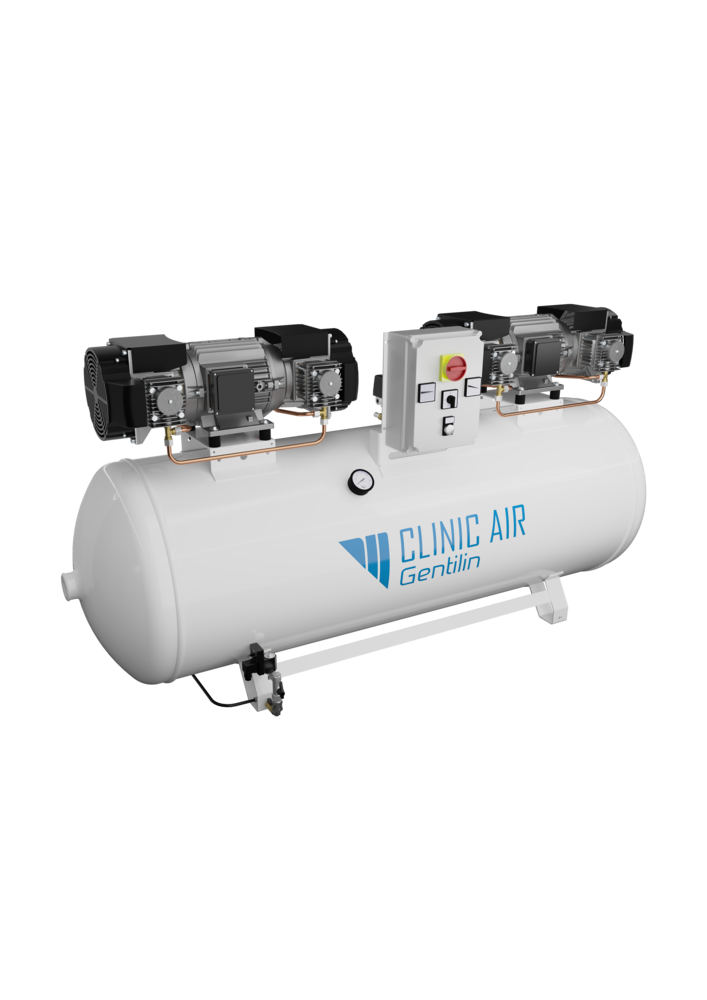

Gentilin Clinic 12.500 - Quiet Oil-Free Compressor with Large 500L Tank (10 Bar)
The Gentilin Clinic 12.500 is a very powerful air compressor designed for heavy, continuous-duty work. Built in Italy, it is made for large clinics, laboratories, hospitals, and industrial environments where a constant supply of clean, oil-free compressed air is needed every day.
Strong and continuous performance
This model is powered by a 6.0 kW (8 HP) motor with eight cylinders, operating at 1,400 rpm. It provides an air intake of 960 L/min, with 620 L/min delivered at 5 bar and 480 L/min at 8 bar, reaching a maximum pressure of 10 bar. Thanks to its S1 duty cycle (100% on), the Clinic 12.500 can run non-stop without breaks, delivering reliable airflow for the most demanding applications.
Large 500L tank for maximum efficiency
The compressor comes with a 500-liter epoxy-coated tank, treated both inside and outside to prevent corrosion and extend service life. The large tank ensures longer operating cycles, steady air supply, and high efficiency in demanding environments.
Reliable and durable operation
Despite its size and strength, the compressor is designed for dependable performance with minimal maintenance. The first service is only required after 3,000 hours of operation, which keeps running costs low.
Quiet enough for large facilities
Even at this scale, the Clinic 12.500 maintains controlled noise levels of 78 dB at 3 meters and 5 bar. With soundproofed pumps and robust construction, it offers acoustic comfort compared to traditional industrial compressors of similar capacity.
Standard equipment included
The Clinic 12.500 is supplied with an hour meter for precise workload tracking and an automatic condensate drain valve to keep the tank clean and free of moisture.
Technical highlights
-
Voltage: 400 V, 50 Hz - Absorption: 13 A
-
Motor: 6.0 kW (8 HP), 8 cylinders
-
Air intake: 960 L/min
-
Air delivery: 620 L/min at 5 bar, 480 L/min at 8 bar
-
Max pressure: 10 bar
-
Tank: 500 L, epoxy coated
-
Duty cycle: S1 100% continuous duty
-
Noise level: 78 dB
-
Dimensions: 2040 × 670 × 980 mm
-
Weight: 340 kg (385 kg packaged)
The Gentilin Clinic 12.500 is the right choice for facilities that need a large, continuous-duty compressor with high airflow and long-lasting reliability.
Catalog Download
Certifications Download
| Condensate Treatment | - |
|---|---|
| Particulate Treatment | - |
| Air purity class (ISO 8573-1) | X-X-0 |
| Voltage (V) | 400,00 |
| Frequency (Hz) | 50,00 |
| Nominal rating (kW) | 6,00 |
| Nominal rating (HP) | 8,00 |
| Rotation speed (rpm) | 1.400,00 |
| Absorption (A) | 13,00 |
| Number of cylinders | 8 |
| Air intake (L/min) | 960,00 |
| Air Delivery (L/min @5 bar) | 620,00 |
| Air Delivery (L/min @8 bar) | 480,00 |
| Maximum pressure (bar) | 10,00 |
| Noise level (3,00m @ 5,00 bar) (dB(A)) | 78,00 |
| Duty cycle | S1 100% |
| Tank Coating | Epoxy (interior/exterior) |
| Tank capacity (lt) | 500,00 |
| First Maintenance (hours) | 3000 |
| Hour Meter | Included |
| Tank Automatic Drain Valve | Included |
| Length (mm) | Width (mm) | Height (mm) | Weight (Kg) |
|---|---|---|---|
| 2040,00 | 670,00 | 980,00 | 340,00 |
| Length (mm) | Width (mm) | Height (mm) | Weight (Kg) |
|---|---|---|---|
| 2100,00 | 770,00 | 1140,00 | 385,00 |
| Dimensions (cm) - LxWxH | Weight (Kg) | Pieces |
|---|---|---|
| - | - | - |
