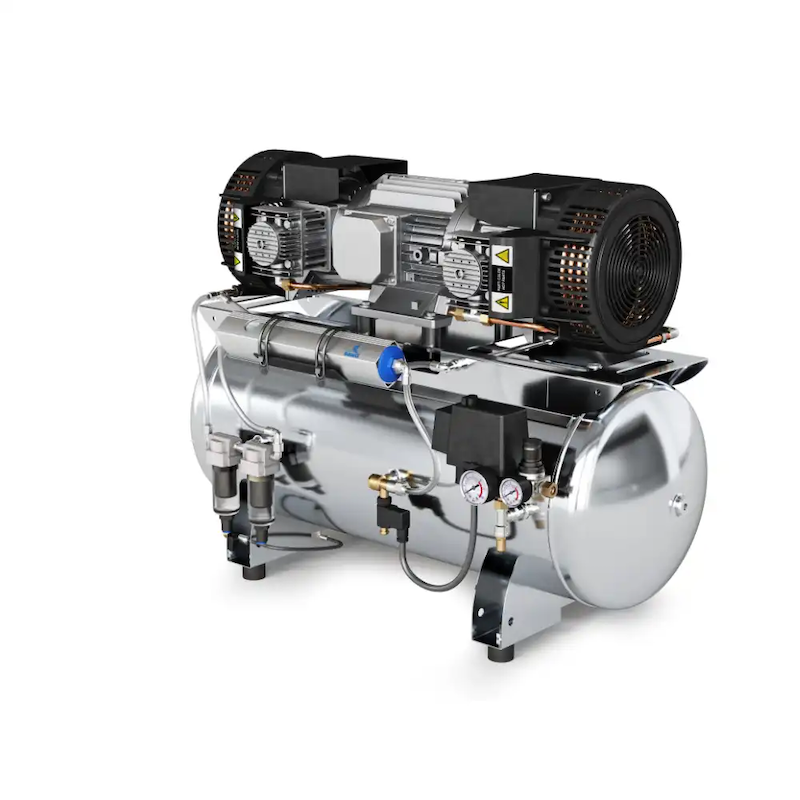

GENTILIN - Clinic 6/90 H - Dry Air Compressor 230-50V-Hz
Gentilin Clinic 6/90 H Dry - Quiet Oil-Free Compressor with Membrane Dryer (90L Stainless Steel Tank)
The Gentilin Clinic 6/90 H Dry is a reliable compressor designed for clinics, laboratories, and medical facilities that require very dry, clean, and oil-free air. Built in Italy, it combines advanced membrane drying technology, a stainless steel tank, and continuous-duty performance, ensuring long-lasting reliability and safety in demanding environments.
Strong and continuous performance
This compressor is powered by a 2.8 kW (3.75 HP) motor with four cylinders, operating at 1,400 rpm. It provides an air intake of 430 L/min, with 235 L/min delivered at 5 bar and 180 L/min at 8 bar, while reaching a maximum pressure of 10 bar. With an S1 duty cycle (100% on), the Clinic 6/90 H Dry can run continuously, guaranteeing a stable and reliable supply of compressed air throughout the day.
Advanced membrane dryer
The integrated membrane dryer reduces the dew point to -40 °C and filters particles down to 0.3 µm, delivering air that meets ISO 8573-1 Class 3-2-0 standards. This ensures that the compressed air is dry, clean, and safe, protecting sensitive medical and laboratory equipment from damage caused by moisture and particles.
Durable stainless steel tank
The compressor features a 90-liter tank made of stainless steel AISI 304, which is rust-free, highly durable, and built for long-term use. The large tank ensures a generous reserve of air and supports steady operation during demanding applications.
Quiet operation
Even with its strong performance, the Clinic 6/90 H Dry operates at just 72 dB measured at 3 meters and 5 bar, making it quiet enough to be installed directly in clinical or laboratory environments.
Reliable and low-maintenance
Standard equipment includes an hour meter for tracking operating hours. An automatic condensate drain valve can be added as an option. With the first maintenance required only after 3,000 hours, the unit is cost-efficient and reliable for long-term daily use.
Technical highlights
-
Voltage: 230 V, 50 Hz - Absorption: 14 A
-
Motor: 2.8 kW (3.75 HP), 4 cylinders
-
Air intake: 430 L/min
-
Air delivery: 235 L/min at 5 bar, 180 L/min at 8 bar
-
Max pressure: 10 bar
-
Tank: 90 L, stainless steel AISI 304
-
Duty cycle: S1 100% continuous duty
-
Noise level: 72 dB
-
First maintenance: 3,000 hours
The Gentilin Clinic 6/90 H Dry is the perfect solution for professionals who need a quiet, oil-free compressor with membrane drying technology and a rust-free stainless steel tank for safe, clean, and dry air every day.
Catalog Download
Certifications Download
| Condensate Treatment | Membrane dryer | Dew Point -40°C |
|---|---|
| Particulate Treatment | 0.3 µm |
| Air purity class (ISO 8573-1) | 3-2-0 |
| Voltage (V) | 230.00 |
| Frequency (Hz) | 50.00 |
| Nominal rating (kW) | 2.80 |
| Nominal rating (HP) | 3.75 |
| Rotation speed (rpm) | 1,400.00 |
| Absorption (A) | 14.00 |
| Number of cylinders | 4 |
| Air intake (L/min) | 430.00 |
| Air Delivery (L/min @5 bar) | 235.00 |
| Air Delivery (L/min @8 bar) | 180.00 |
| Maximum pressure (bar) | 10.00 |
| Noise level (3.00m @ 5.00 bar) (dB(A)) | 72.00 |
| Duty cycle | S1 100% |
| Tank Coating | Stainless Steel AISI 304 |
| Tank capacity (lt) | 90.00 |
| First Maintenance (hours) | 3000 |
| Hour Meter | Included |
| Tank Automatic Drain Valve | Optional |
