GENTILIN - Hush ESK 1320/500 - Air Compressor 400-50V-Hz

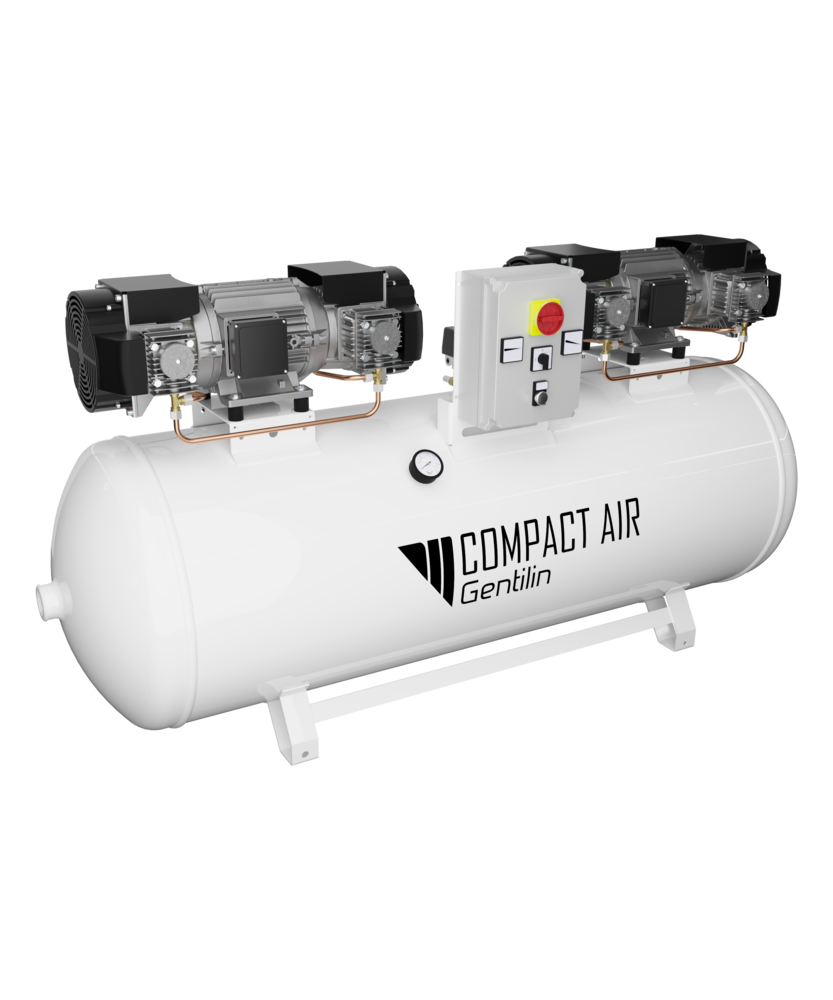

Gentilin Hush ESK 1320/500 - Quiet Oil-Free Compressor with Large 500L Tank
The Gentilin Hush ESK 1320/500 is the most powerful compressor in the Hush line, designed for very heavy and constant work. Made in Italy, it combines extremely high airflow, strong durability, and controlled noise levels, making it ideal for industrial facilities, workshops, and large projects that demand a continuous and reliable supply of compressed air.
Strong and continuous performance
This model is powered by a 8.0 kW (11 HP) motor with eight cylinders, running at 1,400 rpm. It provides an air intake of 1320 L/min, with 720 L/min delivered at 5 bar and 630 L/min at 8 bar, reaching a maximum pressure of 10 bar. With an S1 duty cycle (100% on), the ESK 1320/500 is built for non-stop use, delivering constant air throughout the day without downtime.
Large 500L tank with epoxy coating
The compressor comes with a 500-liter epoxy-coated tank, protected both inside and outside to prevent corrosion and extend lifetime. The large tank ensures a stable and continuous reserve of air, which is essential for demanding operations requiring uninterrupted performance.
Quiet operation for its capacity
For a machine of this size and output, the noise level remains controlled at 78 dB measured at 3 meters and 5 bar. This allows the compressor to deliver very high airflow without producing excessive noise, making it more suitable for large-scale operations than traditional industrial compressors.
Included and optional features
The compressor is equipped with an hour meter for monitoring usage and scheduling maintenance. Optional features include condensate treatment and an automatic condensate drain valve, which improve air purity and make tank management easier.
Technical highlights
-
Voltage: 400 V, 50 Hz - Absorption: 13 A
-
Motor: 8.0 kW (11 HP), 8 cylinders
-
Air intake: 1320 L/min
-
Air delivery: 720 L/min at 5 bar, 630 L/min at 8 bar
-
Max pressure: 10 bar
-
Tank: 500 L, epoxy coated
-
Duty cycle: S1 100% continuous duty
-
Noise level: 78 dB
-
Dimensions: 2040 × 670 × 980 mm
-
Weight: 340 kg (380 kg packaged)
The Gentilin Hush ESK 1320/500 is the ultimate choice for professionals who need a quiet, oil-free compressor with maximum airflow and a large tank, built for continuous industrial performance.
Catalog Download
Certifications Download
| Condensate Treatment | Optional |
|---|---|
| Particulate Treatment | - |
| Air purity class (ISO 8573-1) | X-X-0 |
| Voltage (V) | 400,00 |
| Frequency (Hz) | 50,00 |
| Nominal rating (kW) | 8,00 |
| Nominal rating (HP) | 11,00 |
| Rotation speed (rpm) | 1.400,00 |
| Absorption (A) | 13,00 |
| Number of cylinders | 8 |
| Air intake (L/min) | 1320,00 |
| Air Delivery (L/min @5 bar) | 720,00 |
| Air Delivery (L/min @8 bar) | 630,00 |
| Maximum pressure (bar) | 10,00 |
| Noise level (3,00m @ 5,00 bar) (dB(A)) | 78,00 |
| Duty cycle | S1 100% |
| Tank Coating | Epoxy (internal/external) |
| Tank capacity (lt) | 500,00 |
| First Maintenance (hours) | 3000 |
| Hour Meter | Included |
| Tank Automatic Drain Valve | Optional |
| Length (mm) | Width (mm) | Height (mm) | Weight (Kg) |
|---|---|---|---|
| 2040,00 | 670,00 | 980,00 | 340,00 |
| Length (mm) | Width (mm) | Height (mm) | Weight (Kg) |
|---|---|---|---|
| 2100,00 | 770,00 | 1140,00 | 380,00 |
| Dimensions (cm) - LxWxH | Weight (Kg) | Pieces |
|---|---|---|
| 2100X770X1140 | 380,00 | 1 |

**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
