GENTILIN - Qube 300/270 HS - Dry Air Compressor With Filter 230-50V-Hz

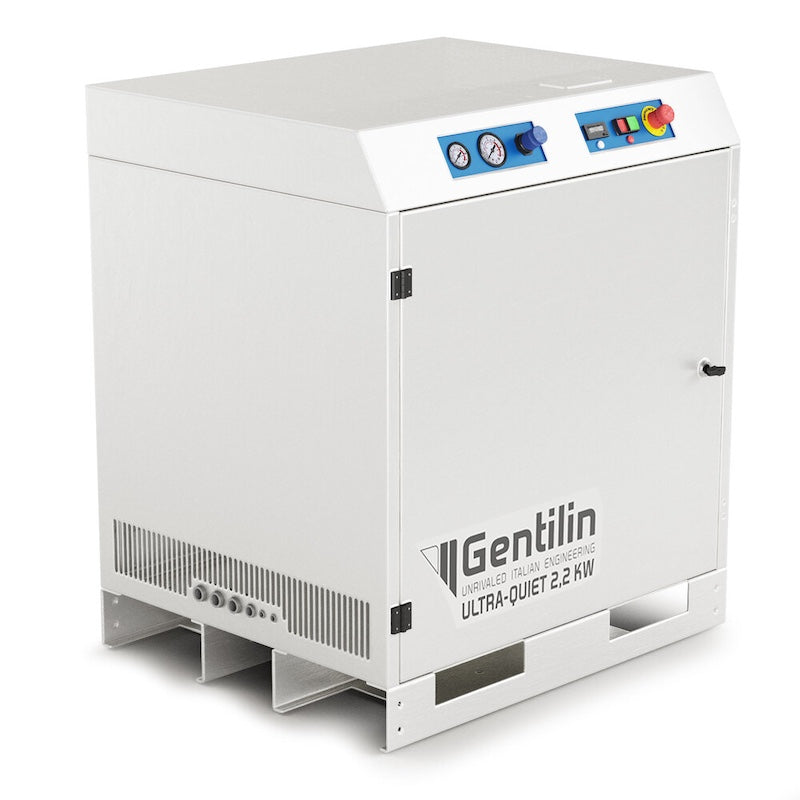

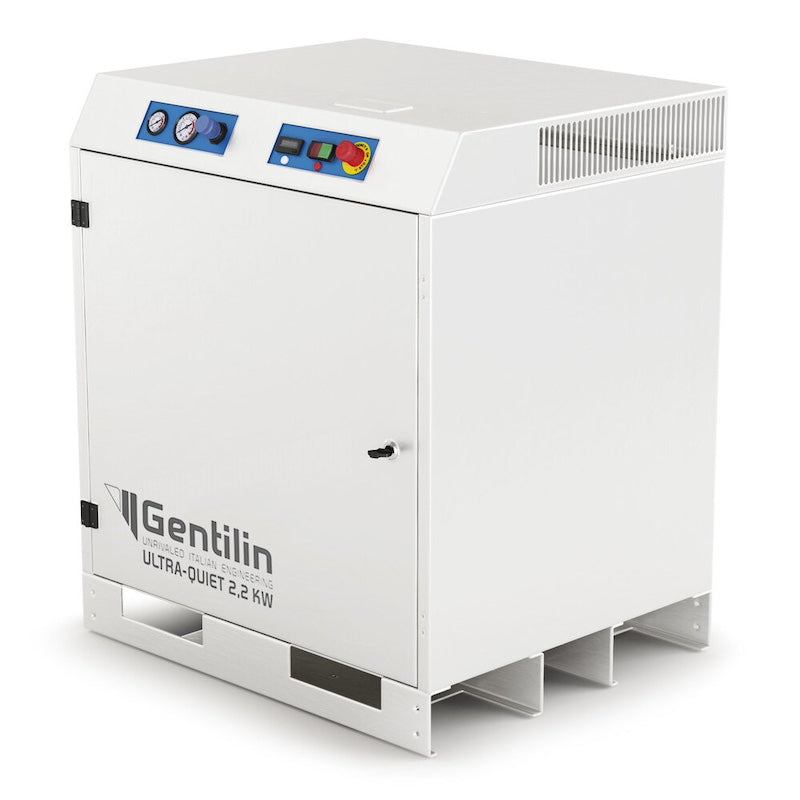

Gentilin Qube 300/270 HS Dry - Ultra-Quiet Oil-Free Compressor with Membrane Dryer and Sterile Filter (270L Tank)
The Gentilin Qube 300/270 HS Dry is a premium compressor designed for professionals who need sterile, dry, and oil-free air with minimal noise. Built in Italy, it combines advanced drying and filtration systems with continuous-duty performance and a large 270-liter tank, making it perfect for clinics, laboratories, food production, and sensitive industrial environments.
Strong and continuous performance
This model is powered by a 2.2 kW (3 HP) motor with two cylinders, operating at 1,400 rpm. It provides an air intake of 330 L/min, with 180 L/min delivered at 5 bar and 160 L/min at 8 bar, while reaching a maximum pressure of 10 bar. With its S1 duty cycle (100% on), the Qube 300/270 HS Dry can run all day without interruption, guaranteeing a reliable and steady air supply.
Membrane dryer and sterile filter
The standout feature of this model is its membrane dryer, which lowers the dew point to -40 °C, producing very dry air. It also includes a sterile filter capable of removing particles as small as 0.01 µm, ensuring maximum purity. The compressor meets the strict ISO 8573-1 Class 0-2-0 standard, which guarantees oil-free, sterile-quality air for applications where contamination cannot be tolerated.
Large 270L tank with epoxy coating
The Qube 300/270 HS Dry includes a 270-liter epoxy-coated tank, treated internally and externally for corrosion resistance and long-lasting durability. This large tank ensures a stable air reserve and greater efficiency during demanding operations.
Ultra-quiet operation
Despite its power and large tank, the compressor operates at only 47 dB measured at 3 meters and 5 bar. This makes it one of the quietest in its class, suitable for installation directly in clinics, labs, or offices where silence is required.
Standard features
The compressor comes with an hour meter for workload monitoring and an optional automatic condensate drain valve. The first maintenance interval is after 10,000 hours, ensuring long-term reliability and low operating costs.
Technical highlights
-
Voltage: 230 V, 50 Hz - Absorption: 15 A
-
Motor: 2.2 kW (3 HP), 2 cylinders
-
Air intake: 330 L/min
-
Air delivery: 180 L/min at 5 bar, 160 L/min at 8 bar
-
Max pressure: 10 bar
-
Tank: 270 L, epoxy coated
-
Duty cycle: S1 100% continuous duty
-
Noise level: 47 dB
-
Dimensions: 1590 × 660 × 1550 mm
-
Weight: 275 kg (305 kg packaged)
The Gentilin Qube 300/270 HS Dry is the ideal solution for professionals who need a quiet, oil-free compressor with sterile and moisture-free air for critical daily applications.
Catalog Download
Certifications Download
| Condensate Treatment | Membrane dryer | Dew point -40°C |
|---|---|
| Particulate Treatment | 0.01µm | Sterilizing filter |
| Air purity class (ISO 8573-1) | 0-2-0 |
| Voltage (V) | 230.00 |
| Frequency (Hz) | 50.00 |
| Nominal rating (kW) | 2.20 |
| Nominal rating (HP) | 3.00 |
| Rotation speed (rpm) | 1,400.00 |
| Absorption (A) | 15.00 |
| Number of cylinders | 2 |
| Air intake (L/min) | 330.00 |
| Air Delivery (L/min @5 bar) | 180.00 |
| Air Delivery (L/min @8 bar) | 160.00 |
| Maximum pressure (bar) | 10.00 |
| Noise level (3.00m @ 5.00 bar) (dB(A)) | 47.00 |
| Duty cycle | S1 100% |
| Tank Coating | Epoxy (internal/external) |
| Tank capacity (lt) | 270.00 |
| First Maintenance (hours) | 10000 |
| Hour Meter | Included |
| Tank Automatic Drain Valve | Optional |
| Length (mm) | Width (mm) | Height (mm) | Weight (Kg) |
|---|---|---|---|
| 1590.00 | 660.00 | 1550.00 | 275.00 |
| Length (mm) | Width (mm) | Height (mm) | Weight (Kg) |
|---|---|---|---|
| 1700.00 | 750.00 | 1700.00 | 305.00 |
| Dimensions (cm) - LxWxH | Weight (Kg) | Pieces |
|---|---|---|
| 1700x750x1700 | 305.00 | 1 |
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
