GENTILIN - Qube 300/270 - Air Compressor 230-50V-Hz

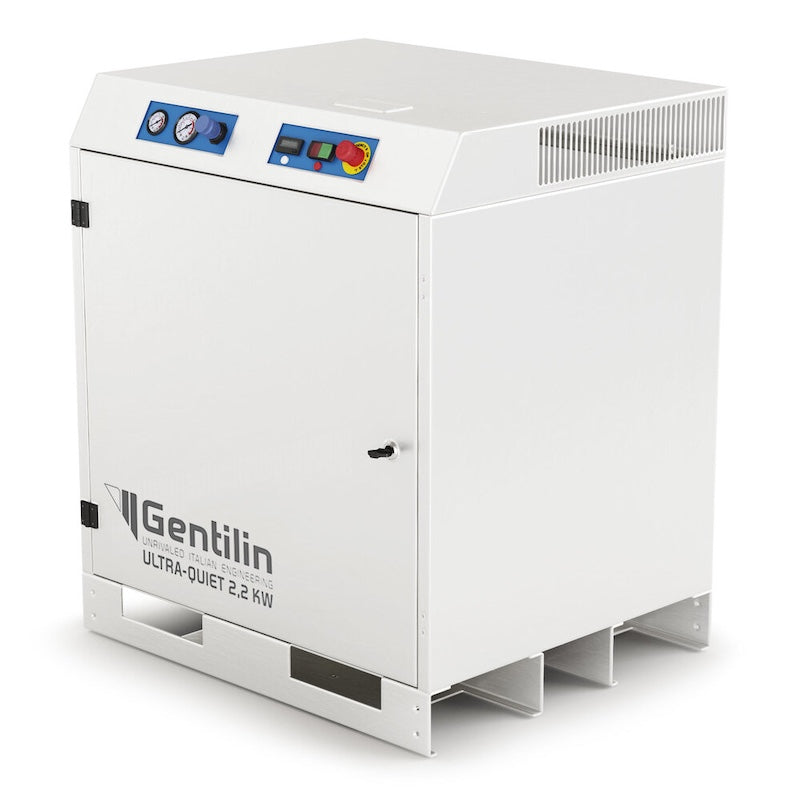

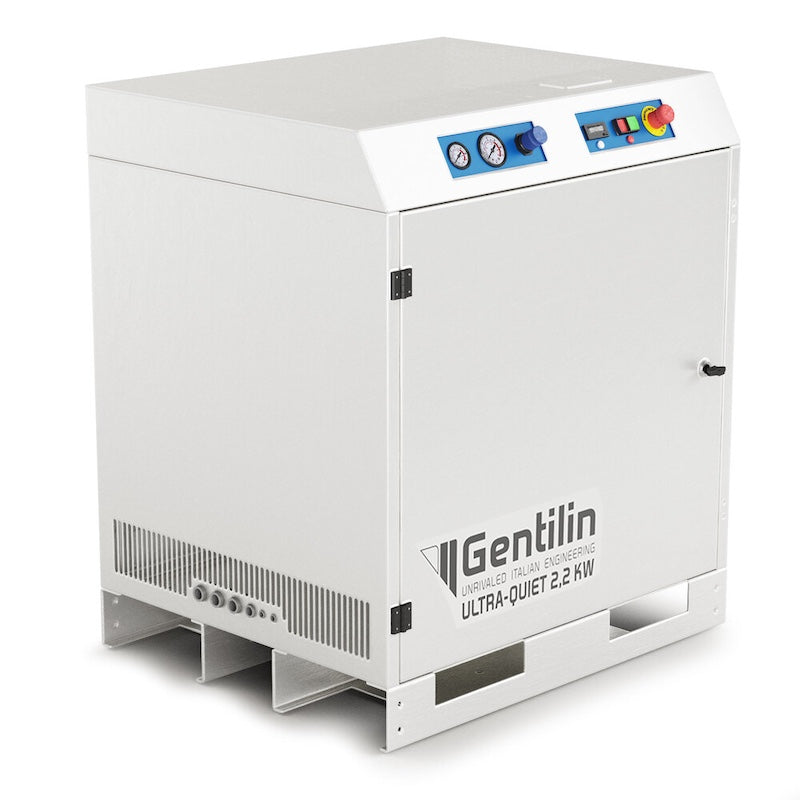

Gentilin Qube 300/270 - Ultra-Quiet Oil-Free Compressor (270L Tank)
The Gentilin Qube 300/270 is a quiet and powerful compressor designed for long, steady, and continuous work. Built in Italy, it offers reliable performance, a large storage tank, and extremely low noise, making it an excellent choice for workshops, laboratories, clinics, and other professional environments where both high airflow and silence are required.
Strong and continuous performance
This compressor is equipped with a 2.2 kW (3 HP) motor and two cylinders, running at 1,400 rpm. It provides an air intake of 330 L/min, with 210 L/min delivered at 5 bar and 185 L/min at 8 bar, reaching a maximum pressure of 10 bar. With its S1 duty cycle (100% on), the Qube 300/270 is built for continuous operation, delivering a reliable supply of compressed air all day long.
Large 270L tank with epoxy coating
One of the standout features of this model is its 270-liter tank, which provides a generous air reserve for demanding applications. The tank is epoxy coated inside and outside, protecting it against corrosion and ensuring long-term durability. This large capacity allows for longer working cycles and reduces the need for frequent restarts, increasing efficiency.
Extremely low noise
The Qube 300/270 operates at only 47 dB measured at 3 meters and 5 bar, making it one of the quietest compressors in its class. This ultra-low noise level means it can be placed in clinics, laboratories, or offices without disturbing the environment.
Included features
The compressor comes with an hour meter for tracking workload and scheduling maintenance. An automatic condensate drain valve is also included, helping keep the tank clean and free of moisture. The first maintenance is required only after 10,000 hours, highlighting the machine’s long-term reliability.
Technical highlights
-
Voltage: 230 V, 50 Hz - Absorption: 15 A
-
Motor: 2.2 kW (3 HP), 2 cylinders
-
Air intake: 330 L/min
-
Air delivery: 210 L/min at 5 bar, 185 L/min at 8 bar
-
Max pressure: 10 bar
-
Tank: 270 L, epoxy coated
-
Duty cycle: S1 100% continuous duty
-
Noise level: 47 dB
-
Dimensions: 1590 × 660 × 1550 mm
-
Weight: 275 kg (305 kg packaged)
The Gentilin Qube 300/270 is the perfect solution if you need a quiet, oil-free compressor with a large tank and continuous-duty performance for demanding daily use.
Catalog Download
Certifications Download
| Condensate Treatment | - |
|---|---|
| Particulate Treatment | - |
| Air purity class (ISO 8573-1) | X-X-0 |
| Voltage (V) | 230.00 |
| Frequency (Hz) | 50.00 |
| Nominal rating (kW) | 2.20 |
| Nominal rating (HP) | 3.00 |
| Rotation speed (rpm) | 1,400.00 |
| Absorption (A) | 15.00 |
| Number of cylinders | 2 |
| Air intake (L/min) | 330.00 |
| Air Delivery (L/min @5 bar) | 210.00 |
| Air Delivery (L/min @8 bar) | 185.00 |
| Maximum pressure (bar) | 10 |
| Noise level (3.00m @ 5.00 bar) (dB(A)) | 47.00 |
| Duty cycle | S1 100% |
| Tank Coating | Epoxy (internal/external) |
| Tank capacity (lt) | 270.00 |
| First Maintenance (hours) | 10000 |
| Hour Meter | Included |
| Tank Automatic Drain Valve | Included |
| Length (mm) | Width (mm) | Height (mm) | Weight (Kg) |
|---|---|---|---|
| 1590.00 | 660.00 | 1550.00 | 275.00 |
| Length (mm) | Width (mm) | Height (mm) | Weight (Kg) |
|---|---|---|---|
| 1700.00 | 750.00 | 1700.00 | 305.00 |
| Dimensions (cm) - LxWxH | Weight (Kg) | Pieces |
|---|---|---|
| 1700x750x1700 | 305.00 | 1 |
