GENTILIN - Qube Dry 300 H - Dry Air Compressor 230-50V-Hz

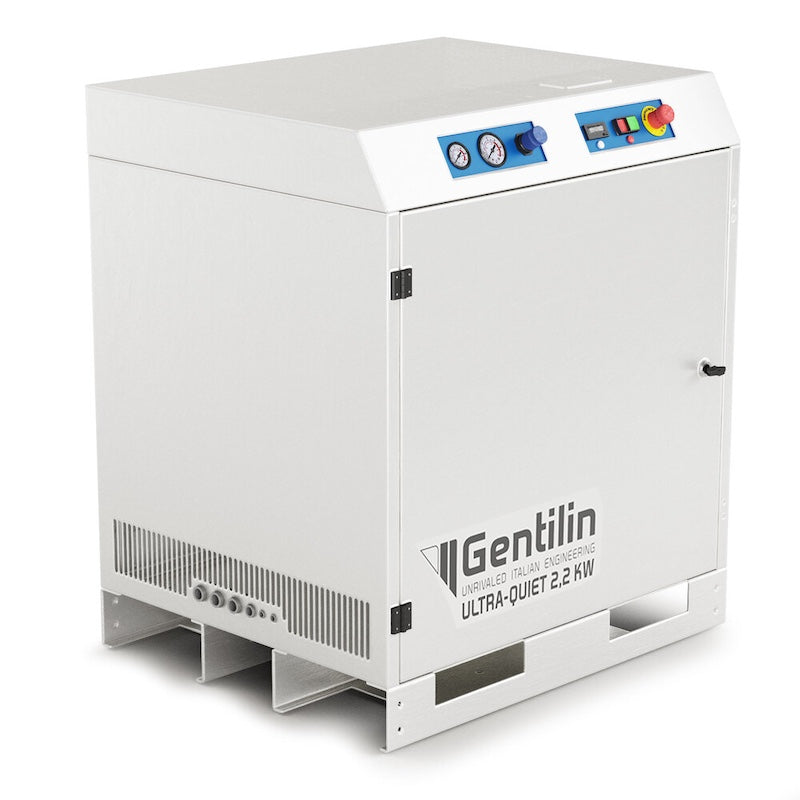

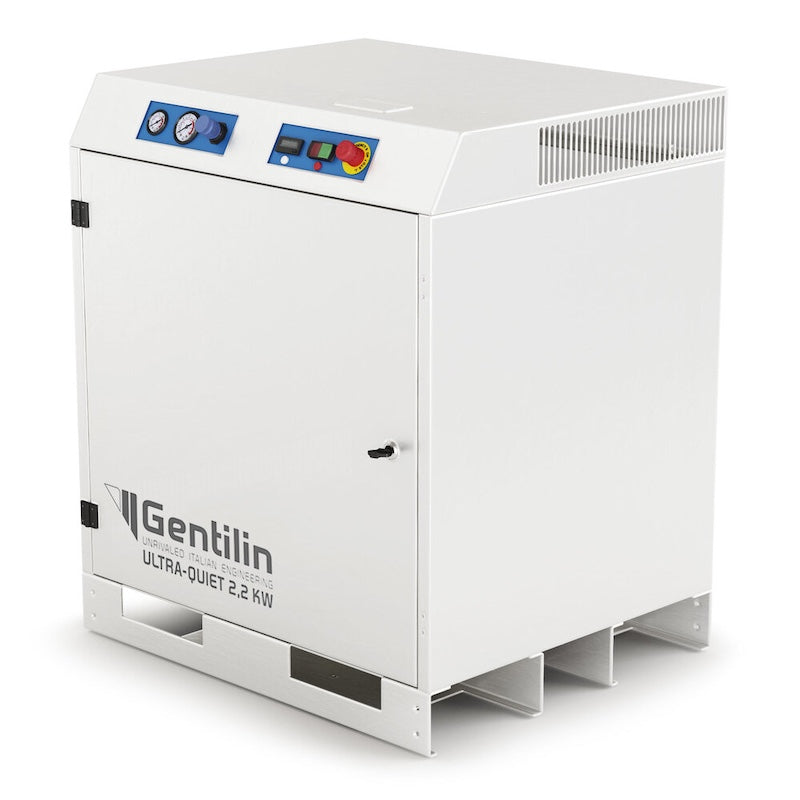

Gentilin Qube Dry 300 H Dry - Ultra-Quiet Oil-Free Compressor with Membrane Dryer (40L Tank)
The Gentilin Qube Dry 300 H Dry is a compact and powerful compressor designed to deliver very dry, clean, and oil-free air with minimal noise. Built in Italy, it combines advanced membrane drying technology, continuous-duty performance, and ultra-low sound levels, making it perfect for clinics, laboratories, and other environments where both air purity and quiet operation are essential.
Strong and continuous performance
This compressor is powered by a 2.2 kW (3 HP) motor with two cylinders, running at 1,400 rpm. It provides an air intake of 330 L/min, with 180 L/min at 5 bar and 160 L/min at 8 bar, reaching a maximum pressure of 10 bar. With an S1 duty cycle (100% on), it is capable of running all day without interruption, ensuring a steady and reliable air supply.
Advanced membrane dryer
The standout feature of the Qube Dry 300 H Dry is its membrane dryer, which reduces the dew point to -40 °C and removes particles as small as 0.3 µm. This guarantees air quality in line with ISO 8573-1 Class 3-2-0, protecting sensitive equipment and ensuring clean, moisture-free air for medical, dental, and laboratory applications.
Durable 40L tank with epoxy coating
The unit comes with a 40-liter epoxy-coated tank, treated both inside and outside for corrosion resistance and long life. The tank provides stable air storage, while the first maintenance is only required after 10,000 hours, making it one of the most reliable compressors in its class.
Extremely low noise
Operating at just 47 dB measured at 3 meters and 5 bar, the Qube Dry 300 H Dry is exceptionally quiet. This allows it to be installed directly in clinics, labs, or offices without disturbing the environment.
Standard features
The compressor includes an hour meter for accurate workload monitoring. An automatic condensate drain valve is available as an option.
Technical highlights
-
Voltage: 230 V, 50 Hz - Absorption: 15 A
-
Motor: 2.2 kW (3 HP), 2 cylinders
-
Air intake: 330 L/min
-
Air delivery: 180 L/min at 5 bar, 160 L/min at 8 bar
-
Max pressure: 10 bar
-
Tank: 40 L, epoxy coated
-
Duty cycle: S1 100% continuous duty
-
Noise level: 47 dB
-
Dimensions: 800 × 660 × 920 mm
-
Weight: 162 kg (177 kg packaged)
The Gentilin Qube Dry 300 H Dry is the ideal choice for professionals who need a quiet, oil-free compressor with advanced drying technology for reliable daily use.
Catalog Download
Certifications Download
| Condensate Treatment | Membrana Dryer | Dew point -40°C |
|---|---|
| Particulate Treatment | 0,3 µm |
| Air purity class (ISO 8573-1) | 3-2-0 |
| Voltage (V) | 230,00 |
| Frequency (Hz) | 50,00 |
| Nominal rating (kW) | 2,20 |
| Nominal rating (HP) | 3,00 |
| Rotation speed (rpm) | 1.400,00 |
| Absorption (A) | 15,00 |
| Number of cylinders | 2 |
| Air intake (L/min) | 330,00 |
| Air Delivery (L/min @5 bar) | 180,00 |
| Air Delivery (L/min @8 bar) | 160,00 |
| Maximum pressure (bar) | 10,00 |
| Noise level (3,00m @ 5,00 bar) (dB(A)) | 47,00 |
| Duty cycle | S1 100% |
| Tank Coating | Epoxy (interior/exterior) |
| Tank capacity (lt) | 40,00 |
| First Maintenance (hours) | 10000 |
| Hour Meter | Included |
| Tank Automatic Drain Valve | Optional |
| Length (mm) | Width (mm) | Height (mm) | Weight (Kg) |
|---|---|---|---|
| 800,00 | 660,00 | 920,00 | 162,00 |
| Length (mm) | Width (mm) | Height (mm) | Weight (Kg) |
|---|---|---|---|
| 900,00 | 900,00 | 1080,00 | 177,00 |
| Dimensions (cm) - LxWxH | Weight (Kg) | Pieces |
|---|---|---|
| 900x900x1080 | 177,00 | 1 |
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
