GENTILIN - Qube Dry 300 HS - Dry Air Compressor With Filter 230-50V-Hz

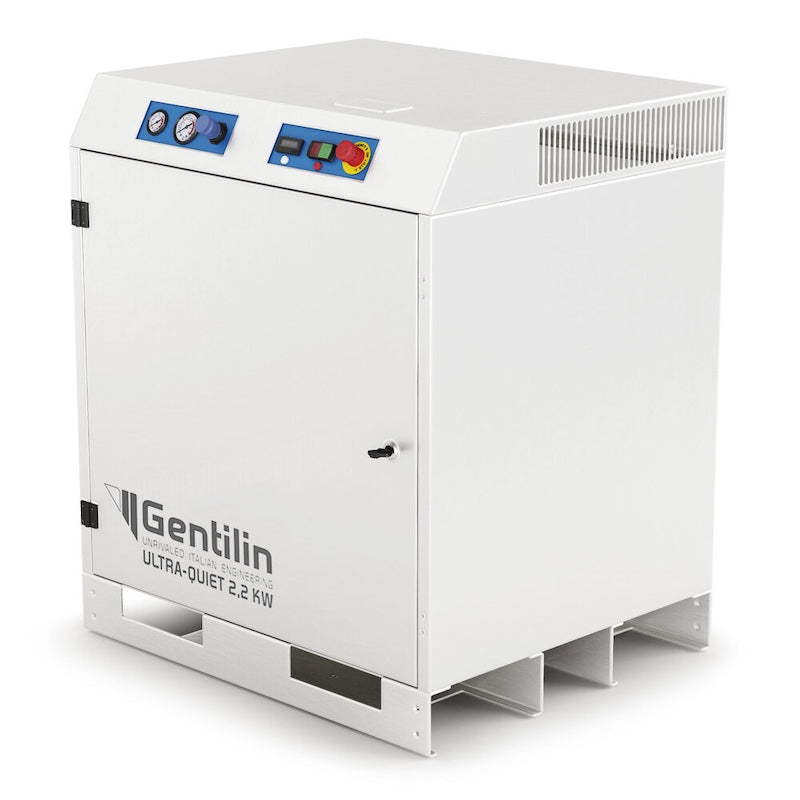

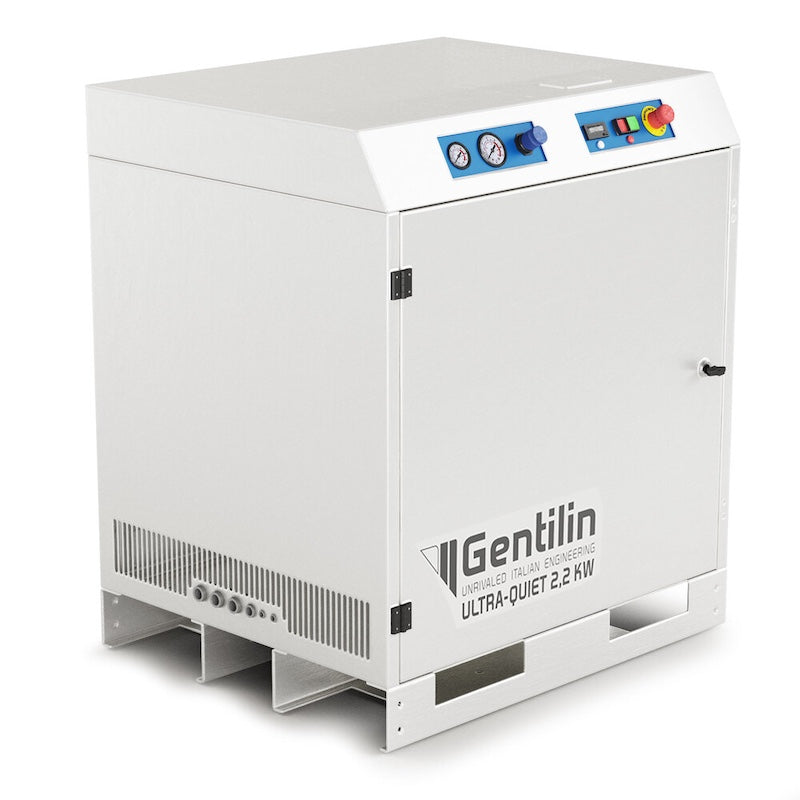

Gentilin Qube Dry 300 HS Dry - Ultra-Quiet Oil-Free Compressor with Membrane Dryer and Sterile Filter (40L Tank)
The Gentilin Qube Dry 300 HS Dry is a premium compressor designed for professionals who require very dry, sterile, and oil-free air in sensitive environments. Made in Italy, it combines membrane drying technology, advanced antibacterial filtration, and ultra-low noise, making it perfect for clinics, laboratories, and medical facilities where safety and purity are essential.
Strong and continuous performance
This compressor runs on a 2.2 kW (3 HP) motor with two cylinders, operating at 1,400 rpm. It delivers an air intake of 330 L/min, with 180 L/min at 5 bar and 160 L/min at 8 bar, while reaching a maximum pressure of 10 bar. Thanks to its S1 duty cycle (100% on), the unit can operate all day without stopping, ensuring a continuous supply of compressed air.
Membrane dryer and sterile antibacterial filter
The Qube Dry 300 HS Dry is equipped with a membrane dryer that reduces the dew point to -40 °C, guaranteeing very dry compressed air. In addition, it features a sterile antibacterial filter capable of removing particles down to 0.01 µm, meeting the strict ISO 8573-1 Class 0-2-0 standard. This ensures the highest level of air purity, suitable for applications where contamination cannot be tolerated.
Durable 40L tank with epoxy coating
The compressor includes a 40-liter epoxy-coated tank, protected both inside and outside to resist corrosion and extend its lifespan. The first maintenance interval is set at 10,000 hours, making it a low-maintenance solution for long-term professional use.
Ultra-quiet operation
Operating at just 47 dB measured at 3 meters and 5 bar, the Qube Dry 300 HS Dry is exceptionally quiet. This makes it ideal for direct installation in clinics, labs, or offices where silence is important.
Standard features
The unit comes with an hour meter for usage tracking and maintenance scheduling. An automatic condensate drain valve is available as an option.
Technical highlights
-
Voltage: 230 V, 50 Hz - Absorption: 15 A
-
Motor: 2.2 kW (3 HP), 2 cylinders
-
Air intake: 330 L/min
-
Air delivery: 180 L/min at 5 bar, 160 L/min at 8 bar
-
Max pressure: 10 bar
-
Tank: 40 L, epoxy coated
-
Duty cycle: S1 100% continuous duty
-
Noise level: 47 dB
-
Dimensions: 800 × 660 × 920 mm
-
Weight: 162 kg (177 kg packaged)
The Gentilin Qube Dry 300 HS Dry is the best choice for professionals who need a quiet, oil-free compressor with sterile, moisture-free air for daily demanding use.
Catalog Download
Certifications Download
| Condensate Treatment | Membrane dryer | dew point -40°C |
|---|---|
| Particulate Treatment | 0.01µm | Antibacterial filter |
| Air purity class (ISO 8573-1) | 0-2-0 |
| Voltage (V) | 230.00 |
| Frequency (Hz) | 50.00 |
| Nominal rating (kW) | 2.20 |
| Nominal rating (HP) | 3.00 |
| Rotation speed (rpm) | 1,400.00 |
| Absorption (A) | 15.00 |
| Number of cylinders | 2 |
| Air intake (L/min) | 330.00 |
| Air Delivery (L/min @5 bar) | 180.00 |
| Air Delivery (L/min @8 bar) | 160.00 |
| Maximum pressure (bar) | 10.00 |
| Noise level (3.00m @ 5.00 bar) (dB(A)) | 47.00 |
| Duty cycle | S1 100% |
| Tank Coating | Epoxy (internal/external) |
| Tank capacity (lt) | 40.00 |
| First Maintenance (hours) | 10000 |
| Hour Meter | Included |
| Tank Automatic Drain Valve | Optional |
| Length (mm) | Width (mm) | Height (mm) | Weight (Kg) |
|---|---|---|---|
| 800.00 | 660.00 | 920.00 | 162.00 |
| Length (mm) | Width (mm) | Height (mm) | Weight (Kg) |
|---|---|---|---|
| 900.00 | 900.00 | 1080.00 | 177.00 |
| Dimensions (cm) - LxWxH | Weight (Kg) | Pieces |
|---|---|---|
| 900x900x1080 | 177.00 | 1 |
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
