GENTILIN - SCA300/SP - Air Compressor 230-50V-Hz PREMIUM

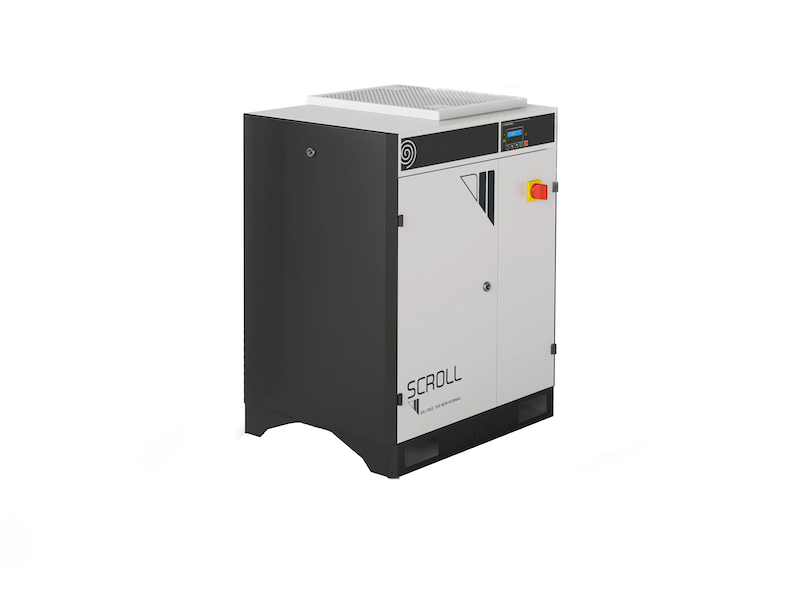

Gentilin SCA300/SP Scroll - Quiet Oil-Free Compressor with Star/Delta Start + PLC (270L Tank)
The Gentilin SCA300/SP is a premium scroll compressor built for professional applications that require continuous, oil-free, and quiet compressed air. Made in Italy, it combines advanced scroll technology, a large 270-liter tank, and a star/delta start system with PLC control for smooth, efficient, and safe operation.
Premium performance with PLC control
This compressor runs on a 2.2 kW (3 HP) motor at 3,250 rpm, delivering 240 L/min at 8 bar and reaching a maximum pressure of 10 bar. Thanks to its S1 duty cycle (100% on), it can run all day without interruption. The integrated PLC (Programmable Logic Controller) provides advanced monitoring and control, while the star/delta start system reduces starting current, protecting electrical systems and extending motor life.
Oil-free Class 0 air quality
The SCA300/SP provides ISO Class 0 certified air, free of oil contamination, making it perfect for sensitive environments such as medical centers, dental clinics, pharmaceutical production, food and beverage facilities, and laboratories.
Durable 270L coated tank
Equipped with a 270-liter receiver tank, the unit ensures a stable air reserve for demanding workflows. The tank is protected with an epoxy coating on the outside and Teflon on the inside, preventing corrosion and ensuring long service life even under heavy use.
Quiet operation
Despite its performance, the compressor produces only 64 dB, making it one of the quietest options in its class. This low-noise level makes it ideal for indoor installation, including clinics and laboratories where noise reduction is important.
Reliable and low-maintenance
An hour meter is included as standard for tracking operation. Optional condensate treatment and particle filters can be added to meet specific air purity needs. With its first maintenance required only after 8,000 hours, the SCA300/SP provides long service intervals and low operating costs.
Technical highlights
-
Voltage: 230 V, 50 Hz
-
Motor: 2.2 kW (3 HP)
-
Air delivery: 240 L/min at 8 bar
-
Max pressure: 10 bar
-
Tank: 270 L, epoxy (external) + Teflon (internal)
-
Duty cycle: S1 100% continuous duty
-
Noise level: 64 dB
-
First maintenance: 8,000 hours
-
Star/Delta start with PLC control
-
Dimensions: 1184 × 606 × 1474 mm
-
Weight: 198 kg
The Gentilin SCA300/SP is the perfect choice for professionals who need a premium scroll compressor with PLC control, star/delta start, and a durable 270L tank, ensuring quiet, oil-free, and continuous compressed air every day.
Catalog Download
Certifications Download
| Condensate Treatment | Optional |
|---|---|
| Particulate Treatment | Optional |
| Air purity class (ISO 8573-1) | X-X-0 |
| Voltage (V) | 230.00 |
| Frequency (Hz) | 50.00 |
| Nominal rating (kW) | 2.20 |
| Nominal rating (HP) | 3.00 |
| Rotation speed (rpm) | 3,250.00 |
| Absorption (A) | - |
| Number of cylinders | - |
| Air intake (L/min) | - |
| Air Delivery (L/min @5 bar) | - |
| Air Delivery (L/min @8 bar) | 240.00 |
| Maximum pressure (bar) | 10.00 |
| Noise level (3.00m @ 5.00 bar) (dB(A)) | 64.00 |
| Duty cycle | S1 100% |
| Tank Coating | Epoxy (external) - Teflon (internal) |
| Tank capacity (lt) | 270.00 |
| First Maintenance (hours) | 8000 |
| Hour Meter | Included |
| Tank Automatic Drain Valve | - |
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
