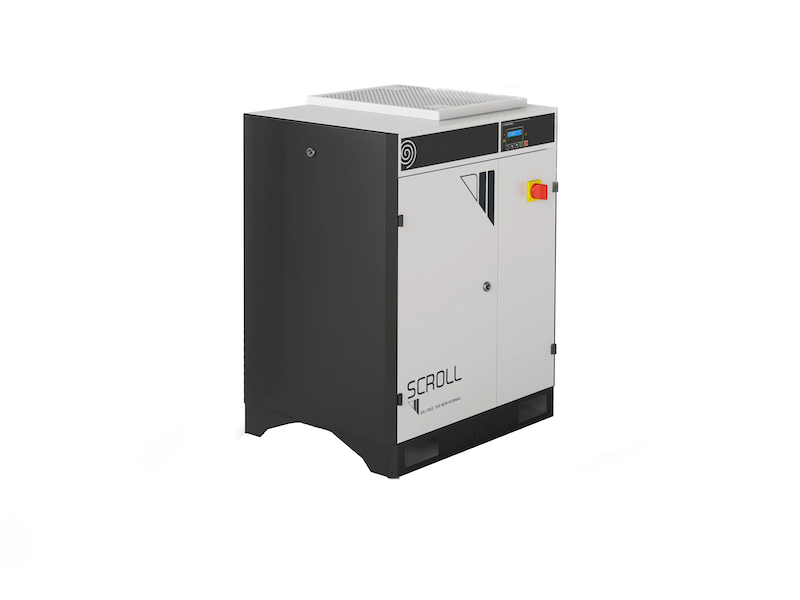

GENTILIN - SCA300/TP - Air Compressor 400-50V-Hz PREMIUM
Gentilin SCA300/TP Scroll - Quiet Oil-Free Compressor with Star/Delta Start + PLC (270L Tank)
The Gentilin SCA300/TP is a premium oil-free scroll compressor designed for professionals who need a quiet, reliable, and contamination-free air supply. Made in Italy, it combines scroll technology, a 270-liter protected tank, and a star/delta start system with PLC control, ensuring efficient and safe operation in demanding environments.
Premium performance with advanced control
This compressor is powered by a 2.2 kW (3 HP) motor running at 3,250 rpm. It delivers 240 L/min at 8 bar, with a maximum pressure of 10 bar. Built for continuous operation (S1 100%), it can run all day without interruption. The star/delta start system provides smooth motor startup, reducing electrical stress, while the PLC (Programmable Logic Controller) allows for easy monitoring and advanced system management.
Oil-free Class 0 air
The SCA300/TP supplies ISO 8573-1 Class 0 oil-free air, guaranteeing zero oil contamination. This makes it the right solution for medical centers, dental practices, laboratories, pharmaceutical manufacturing, food and beverage industries, and precision applications where air purity is critical.
Large and durable 270L tank
The compressor includes a 270-liter receiver tank, offering a stable air reserve for continuous workflows. The tank is treated with epoxy coating on the exterior and Teflon on the interior, providing excellent protection against corrosion and ensuring long service life.
Quiet and reliable operation
Despite its strength, the SCA300/TP operates at just 64 dB, making it one of the quietest compressors in its class. This allows installation in clinics, labs, or workshops without disturbing daily activities. An hour meter is included as standard, and condensate treatment and particle filters can be added as options for enhanced air purity.
Low maintenance needs
The compressor is built for long-term use, with the first maintenance required only after 8,000 hours, minimizing service costs and downtime.
Technical highlights
-
Voltage: 400 V, 50 Hz
-
Motor: 2.2 kW (3 HP)
-
Air delivery: 240 L/min at 8 bar
-
Max pressure: 10 bar
-
Tank: 270 L, epoxy (external) + Teflon (internal)
-
Duty cycle: S1 100% continuous duty
-
Noise level: 64 dB
-
First maintenance: 8,000 hours
-
Dimensions: 1184 × 606 × 1474 mm
-
Weight: 228 kg
-
Star/Delta start + PLC control
The Gentilin SCA300/TP is the ideal choice for professionals who need a premium scroll compressor with advanced PLC control, smooth star/delta startup, and a corrosion-protected 270L tank to deliver quiet, clean, and oil-free air every day.
Catalog Download
Certifications Download
| Condensate Treatment | Optional |
|---|---|
| Particulate Treatment | Optional |
| Air purity class (ISO 8573-1) | X-X-0 |
| Voltage (V) | 400.00 |
| Frequency (Hz) | 50.00 |
| Nominal rating (kW) | 2.20 |
| Nominal rating (HP) | 3.00 |
| Rotation speed (rpm) | 3,250.00 |
| Absorption (A) | - |
| Number of cylinders | - |
| Air intake (L/min) | - |
| Air Delivery (L/min @5 bar) | - |
| Air Delivery (L/min @8 bar) | 240.00 |
| Maximum pressure (bar) | 10.00 |
| Noise level (3.00m @ 5.00 bar) (dB(A)) | 64.00 |
| Duty cycle | S1 100% |
| Tank Coating | Epoxy (external) - Teflon (internal) |
| Tank capacity (lt) | - |
| First Maintenance (hours) | 8000 |
| Hour Meter | Included |
| Tank Automatic Drain Valve | - |
