GENTILIN - SCA550/TP - Air Compressor 400-50V-Hz PREMIUM

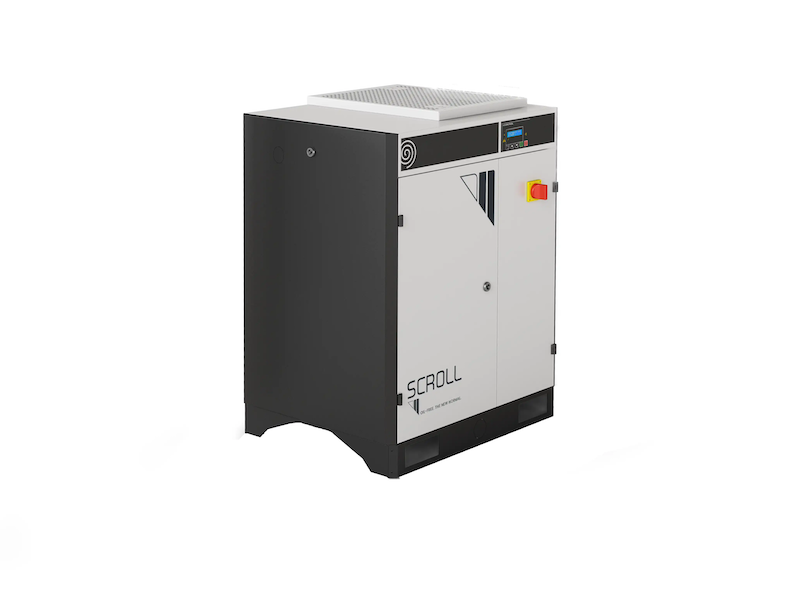

Gentilin SCA550/TP Scroll - Quiet Oil-Free Compressor with Star/Delta Start + PLC (270L Tank)
The Gentilin SCA550/TP is a premium oil-free scroll compressor designed for continuous duty in demanding environments. Built in Italy, it combines high airflow, advanced PLC control, and a large 270-liter protected tank, making it ideal for applications that need a powerful, quiet, and contamination-free air supply.
Powerful and continuous performance
Equipped with a 4.0 kW (5.5 HP) motor running at 2,200 rpm, the compressor delivers up to 410 L/min at 8 bar with a maximum pressure of 10 bar. Its S1 duty cycle (100% continuous use) ensures reliable airflow during long and heavy workloads, making it suitable for clinics, laboratories, and industrial operations.
Advanced control with PLC
The star/delta start system allows smooth motor startup with reduced electrical stress, while the integrated PLC (Programmable Logic Controller) offers advanced monitoring and control of compressor functions. This guarantees stable operation, energy efficiency, and extended motor life.
Oil-free Class 0 air
The SCA550/TP produces ISO 8573-1 Class 0 oil-free air, ensuring no risk of oil contamination. This makes it the right choice for medical centers, dental facilities, pharmaceutical production, food and beverage processing, laboratories, and other critical environments where air purity is essential.
Large 270L tank with protection
The compressor includes a 270-liter tank, treated with epoxy coating on the outside and Teflon on the inside, preventing corrosion and extending durability. This large capacity ensures a steady air reserve for demanding operations.
Quiet and efficient operation
Despite its strong airflow, the SCA550/TP runs at just 67 dB, significantly quieter than traditional piston compressors. This makes it suitable for noise-sensitive environments. An hour meter is included, and optional condensate and particle treatment systems can be added if required.
Low-maintenance design
The unit is engineered for long-lasting use, with the first maintenance required only after 8,000 hours, keeping operating costs low and uptime high.
Technical highlights
-
Voltage: 400 V, 50 Hz
-
Motor: 4.0 kW (5.5 HP)
-
Air delivery: 410 L/min at 8 bar
-
Max pressure: 10 bar
-
Tank: 270 L, epoxy (external) + Teflon (internal)
-
Duty cycle: S1 100% continuous duty
-
Noise level: 67 dB
-
First maintenance: 8,000 hours
-
Dimensions: 1184 × 606 × 1474 mm
-
Weight: 215 kg
-
Star/Delta start + PLC control
The Gentilin SCA550/TP is the perfect solution for professionals who need a high-power, quiet, and oil-free scroll compressor with advanced control and a durable 270L tank.
Catalog Download
Certifications Download
| Condensate Treatment | Optional |
|---|---|
| Particulate Treatment | Optional |
| Air purity class (ISO 8573-1) | X-X-0 |
| Voltage (V) | 400.00 |
| Frequency (Hz) | 50.00 |
| Nominal rating (kW) | 4.00 |
| Nominal rating (HP) | 5.50 |
| Rotation speed (rpm) | 2,200.00 |
| Absorption (A) | - |
| Number of cylinders | - |
| Air intake (L/min) | - |
| Air Delivery (L/min @5 bar) | - |
| Air Delivery (L/min @8 bar) | 410.00 |
| Maximum pressure (bar) | 10.00 |
| Noise level (3.00m @ 5.00 bar) (dB(A)) | 67.00 |
| Duty cycle | S1 100% |
| Tank Coating | Epoxy (external) - Teflon (internal) |
| Tank capacity (lt) | - |
| First Maintenance (hours) | 8000 |
| Hour Meter | Included |
| Tank Automatic Drain Valve | - |
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
