GENTILIN - SCA750/TP - Air Compressor 400-50V-Hz PREMIUM

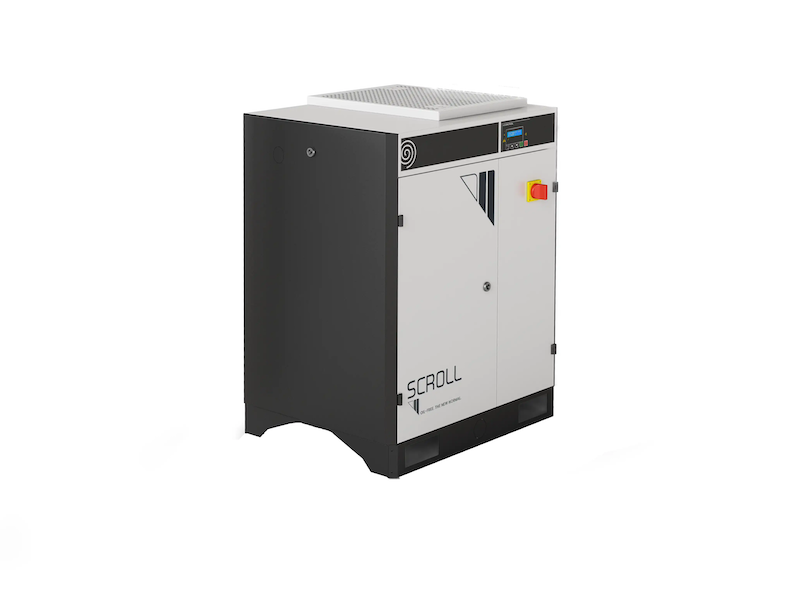

Gentilin SCA750/TP Scroll - Quiet Oil-Free Compressor with Star/Delta Start + PLC (270L Tank)
The Gentilin SCA750/TP is a high-performance oil-free scroll compressor built for applications that demand very high airflow, continuous duty, and quiet operation. Made in Italy, it combines 7.5 HP of power, advanced PLC control, and a large 270-liter protected tank, making it the ideal choice for clinics, laboratories, and industries requiring a steady and contamination-free air supply.
Powerful continuous performance
This compressor is equipped with a 5.5 kW (7.5 HP) motor, running at 3,180 rpm. It delivers up to 630 L/min at 8 bar and reaches a maximum pressure of 10 bar. With its S1 duty cycle (100% continuous use), the SCA750/TP is designed for non-stop operation, ensuring a constant and reliable compressed air supply for demanding tasks.
Advanced star/delta start with PLC control
The star/delta start system ensures smooth and safe motor startup, minimizing electrical stress and extending component life. The integrated PLC (Programmable Logic Controller) provides advanced monitoring and easy system control, ensuring reliable performance and efficiency even in critical applications.
Oil-free Class 0 air quality
The SCA750/TP delivers ISO Class 0 oil-free air, guaranteeing no oil contamination. This makes it suitable for sensitive sectors such as medical centers, dental practices, pharmaceutical facilities, laboratories, and food and beverage production, where clean and safe compressed air is essential.
Durable 270L coated tank
The compressor features a 270-liter receiver tank, coated with epoxy on the exterior and Teflon on the interior for maximum corrosion resistance and extended durability. The large tank ensures a steady reserve of compressed air, improving efficiency and stability.
Quiet operation
Despite its size and power, the SCA750/TP operates at only 67 dB, making it significantly quieter than traditional piston compressors. This allows installation even in noise-sensitive environments without disrupting daily work.
Reliable and low-maintenance
The compressor comes with an hour meter as standard. Optional condensate treatment and particle filters can be added if required. With a first maintenance interval at 8,000 hours, the unit ensures long-lasting performance and low running costs.
Technical highlights
-
Voltage: 400 V, 50 Hz
-
Motor: 5.5 kW (7.5 HP)
-
Air delivery: 630 L/min at 8 bar
-
Max pressure: 10 bar
-
Tank: 270 L, epoxy (external) + Teflon (internal)
-
Duty cycle: S1 100% continuous duty
-
Noise level: 67 dB
-
First maintenance: 8,000 hours
-
Dimensions: 1184 × 606 × 1474 mm
-
Weight: 233 kg
-
Star/Delta start + PLC control
The Gentilin SCA750/TP is the perfect solution for professionals who need a very powerful, quiet, and oil-free scroll compressor with advanced PLC control and a large 270L tank, built for reliable continuous operation.
Catalog Download
Certifications Download
| Condensate Treatment | Optional |
|---|---|
| Particulate Treatment | Optional |
| Air purity class (ISO 8573-1) | X-X-0 |
| Voltage (V) | 400.00 |
| Frequency (Hz) | 50.00 |
| Nominal rating (kW) | 5.50 |
| Nominal rating (HP) | 7.50 |
| Rotation speed (rpm) | 3,180.00 |
| Absorption (A) | - |
| Number of cylinders | - |
| Air intake (L/min) | - |
| Air Delivery (L/min @5 bar) | - |
| Air Delivery (L/min @8 bar) | 630.00 |
| Maximum pressure (bar) | 10.00 |
| Noise level (3.00m @ 5.00 bar) (dB(A)) | 67.00 |
| Duty cycle | S1 100% |
| Tank Coating | Epoxy (external) - Teflon (internal) |
| Tank capacity (lt) | - |
| First Maintenance (hours) | 8000 |
| Hour Meter | Included |
| Tank Automatic Drain Valve | - |
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
