GENTILIN - SCR1000/TP - Air Compressor 400-50V-Hz PREMIUM

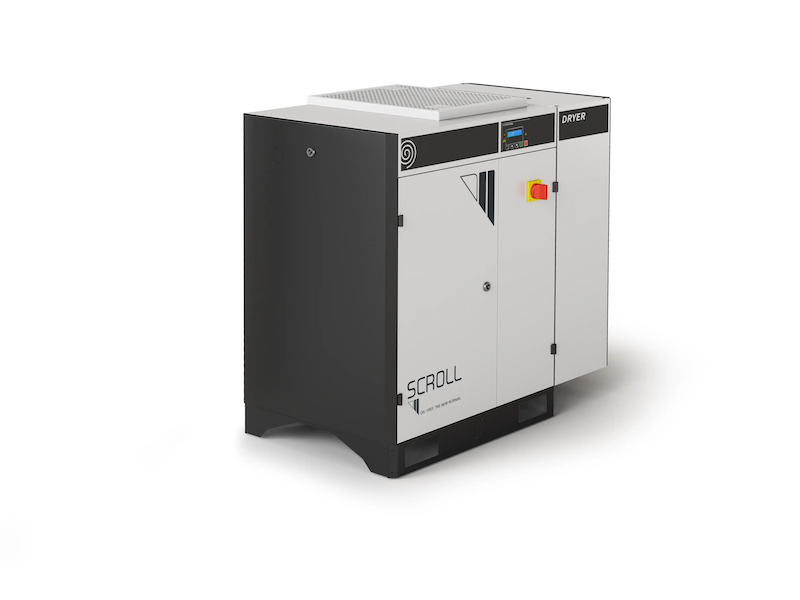

Gentilin SCR1000/TP Scroll - Quiet Oil-Free Compressor with Refrigerant Dryer + PLC (270L Tank)
The Gentilin SCR1000/TP is an extremely powerful oil-free scroll compressor built for heavy-duty and continuous operation. With a robust 10 HP motor, a built-in refrigerant dryer, and PLC management with star/delta start, it is designed to provide very high airflow with dry, clean, and oil-free air. Perfect for clinics, laboratories, and industries that demand reliable and quiet performance.
Extremely powerful and continuous operation
This compressor is driven by a 7.5 kW (10 HP) motor at 3,180 rpm, supplying up to 850 L/min at 8 bar and reaching a maximum pressure of 10 bar. Thanks to its S1 duty cycle (100% continuous duty), the SCR1000/TP can run all day without interruption, even in the most demanding conditions.
Built-in refrigerant dryer
The integrated refrigerant dryer ensures consistently dry air by lowering the dew point to about +5 °C, protecting tools, equipment, and systems from moisture. Optional particle filters can be added for applications requiring even higher air purity.
Advanced PLC control and star/delta start
The star/delta start system guarantees smooth motor startup with reduced electrical stress. The advanced PLC (Programmable Logic Controller) makes it easy to monitor, diagnose, and control the compressor, ensuring efficient and safe operation.
Oil-free Class 0 air quality
Using scroll technology, the compressor produces ISO 8573-1 Class 0 air, meaning it is fully oil-free. Together with the dryer, this makes the SCR1000/TP ideal for medical environments, dental clinics, pharmaceutical facilities, laboratories, and food production, where both air purity and dryness are essential.
Large 270L corrosion-protected tank
The compressor comes with a 270-liter tank, coated with epoxy externally and Teflon internally. This dual-layer protection ensures excellent durability and long life, even in continuous use.
Quiet and efficient
Despite its high performance, the compressor operates at only 67 dB, making it one of the quietest in its category. An hour meter is included for easy monitoring, and maintenance is simple, with the first service required only after 8,000 hours.
Technical highlights
-
Voltage: 400 V, 50 Hz
-
Motor: 7.5 kW (10 HP)
-
Air delivery: 850 L/min at 8 bar
-
Max pressure: 10 bar
-
Tank: 270 L, epoxy (external) + Teflon (internal)
-
Duty cycle: S1 100% continuous duty
-
Noise level: 67 dB
-
First maintenance: 8,000 hours
-
Built-in refrigerant dryer (+5 °C dew point)
-
Air quality: ISO 8573-1 Class X-4-0
-
Dimensions: 1184 × 606 × 1474 mm
-
Weight: 230 kg
-
Star/Delta start + PLC control
The Gentilin SCR1000/TP is the perfect solution for professionals who need a very powerful, quiet, and oil-free scroll compressor with a built-in refrigerant dryer, a corrosion-resistant 270L tank, and advanced PLC control for reliable, dry, and clean air every day.
Catalog Download
Certifications Download
| Condensate Treatment | Refrigerant dryer included |
|---|---|
| Particulate Treatment | Optional |
| Air purity class (ISO 8573-1) | X-4-0 |
| Voltage (V) | 400.00 |
| Frequency (Hz) | 50.00 |
| Nominal rating (kW) | 7.50 |
| Nominal rating (HP) | 10.00 |
| Rotation speed (rpm) | 3,180.00 |
| Absorption (A) | - |
| Number of cylinders | - |
| Air intake (L/min) | - |
| Air Delivery (L/min @5 bar) | - |
| Air Delivery (L/min @8 bar) | 850.00 |
| Maximum pressure (bar) | 10.00 |
| Noise level (3.00m @ 5.00 bar) (dB(A)) | 67.00 |
| Duty cycle | S1 100% |
| Tank Coating | Epoxy (external) - Teflon (internal) |
| Tank capacity (lt) | - |
| First Maintenance (hours) | 8000 |
| Hour Meter | Included |
| Tank Automatic Drain Valve | - |
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
