GENTILIN - SCR550/TP - Air Compressor 400-50V-Hz PREMIUM

€15.219,38 (Incl. VAT)
In stock

Notify me when back in stock

✅ Free shipping within the EU
✅ Easy returns
✅ Price match guaranteed

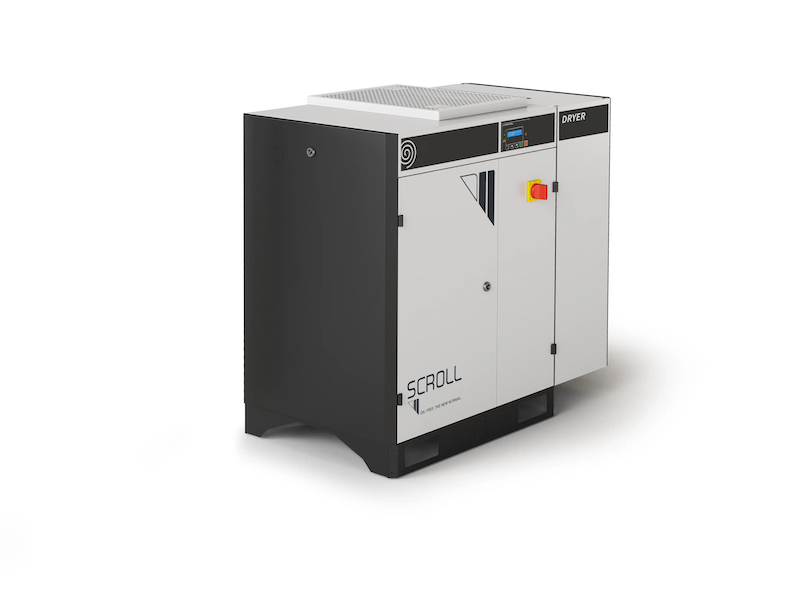

Gentilin SCR550/TP Scroll - Quiet Oil-Free Compressor with Refrigerant Dryer + PLC (270L Tank)

The Gentilin SCR550/TP is a premium oil-free scroll compressor designed for facilities that need strong, dry, and reliable compressed air every day. Built in Italy, it combines high performance, a built-in refrigerant dryer, and PLC management with star/delta start, making it a durable and efficient choice for clinics, laboratories, and industry.

Strong and continuous performance

Equipped with a 4.0 kW (5.5 HP) motor running at 2,200 rpm, this compressor delivers up to 410 L/min at 8 bar with a maximum pressure of 10 bar. Its S1 duty cycle (100% continuous use) allows it to run non-stop, ensuring a steady supply of compressed air even in demanding applications.

Built-in refrigerant dryer

The integrated refrigerant dryer reduces the dew point to about +5 °C, ensuring consistently dry compressed air and protecting equipment from moisture damage. Optional particle filters can also be added for applications requiring higher levels of purity.

PLC control and star/delta start

The star/delta start system minimizes electrical stress during startup, while the integrated PLC (Programmable Logic Controller) provides advanced monitoring, diagnostics, and reliable operation management. This ensures smooth, safe, and efficient performance.

Oil-free Class 0 air quality

Thanks to scroll technology, the SCR550/TP supplies ISO 8573-1 Class 0 air, completely free from oil contamination. With the built-in dryer, it provides clean, dry compressed air suitable for medical centers, dental clinics, labs, pharmaceutical production, and food and beverage facilities.

270L corrosion-protected tank

The compressor comes with a 270-liter tank, coated with epoxy on the outside and Teflon on the inside. This dual protection prevents corrosion and guarantees long service life, even under continuous heavy use.

Quiet and efficient

Despite its strength, the compressor operates at just 67 dB, much quieter than traditional piston compressors of similar size. An hour meter is included as standard for easy monitoring.

Long service intervals

The SCR550/TP is designed for low maintenance, with the first service required only after 8,000 hours of operation.

Technical highlights

  • Voltage: 400 V, 50 Hz

  • Motor: 4.0 kW (5.5 HP)

  • Air delivery: 410 L/min at 8 bar

  • Max pressure: 10 bar

  • Tank: 270 L, epoxy (external) + Teflon (internal)

  • Duty cycle: S1 100% continuous duty

  • Noise level: 67 dB

  • First maintenance: 8,000 hours

  • Built-in refrigerant dryer (+5 °C dew point)

  • Air quality: ISO 8573-1 Class X-4-0

  • Dimensions: 1184 × 606 × 1474 mm

  • Weight: 215 kg

  • Star/Delta start + PLC control

The Gentilin SCR550/TP is the perfect choice for professionals who need a quiet, powerful, and oil-free scroll compressor with a built-in refrigerant dryer, PLC management, and a 270L protected tank, delivering steady and dry compressed air all day long.



Catalog Download

Certifications Download



Technical Data
Condensate Treatment Refrigerant dryer included
Particulate Treatment Optional
Air purity class (ISO 8573-1) X-4-0
Voltage (V) 400.00
Frequency (Hz) 50.00
Nominal rating (kW) 4.00
Nominal rating (HP) 5.50
Rotation speed (rpm) 2,200.00
Absorption (A) -
Number of cylinders -
Air intake (L/min) -
Air Delivery (L/min @5 bar) -
Air Delivery (L/min @8 bar) 410.00
Maximum pressure (bar) 10.00
Noise level (3.00m @ 5.00 bar) (dB(A)) 67.00
Duty cycle S1 100%
Tank Coating Epoxy (external) - Teflon (internal)
Tank capacity (lt) -
First Maintenance (hours) 8000
Hour Meter Included
Tank Automatic Drain Valve -



**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
