GENTILIN - Smart 3.25 S - Air Compressor 230-50V-Hz

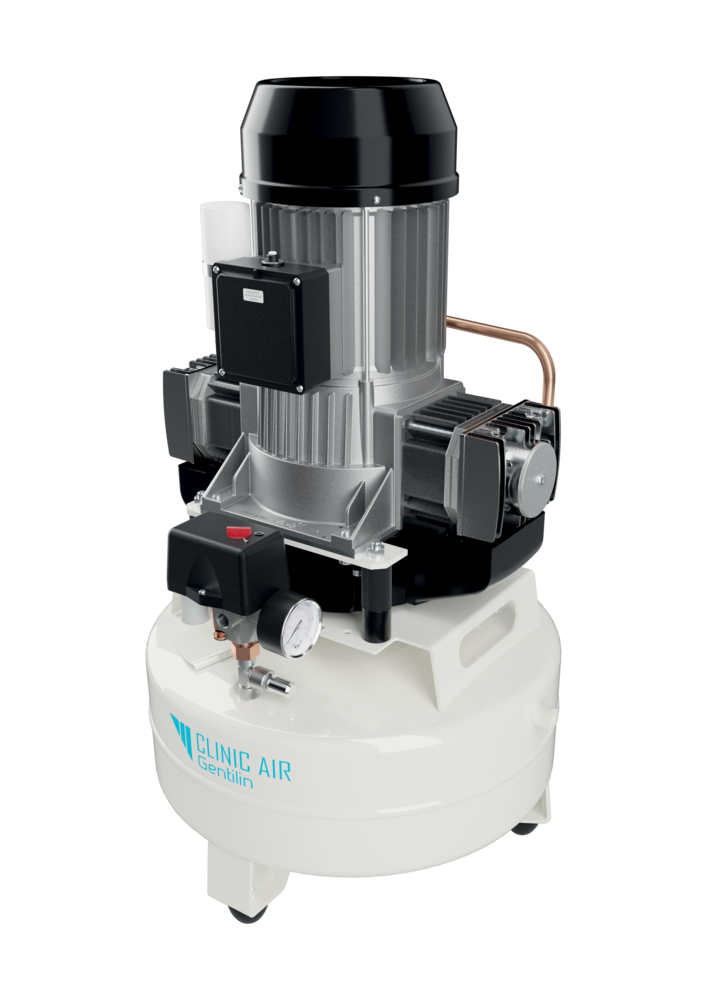

Gentilin Smart 3.25 S – Quiet Oil-Free Compressor (24L Tank, 10 Bar)
The Gentilin Smart 3.25 S is a compact yet powerful air compressor designed for professionals who need steady, oil-free air with higher working pressure. Built in Italy with advanced engineering, it combines strong airflow, quiet operation, and durable construction, making it suitable for workshops, laboratories, dental and medical facilities, and industrial applications.
This model is equipped with a 1.8 kW (2.4 HP) motor and two cylinders, running at 1,400 rpm. It provides an air intake of 240 L/min, with 155 L/min at 5 bar and 120 L/min at 8 bar, while reaching a maximum pressure of 10 bar. With this higher pressure capacity, the Smart 3.25 S can handle tasks that require stronger and more consistent airflow.
The compressor comes with a 24-liter tank coated both inside and outside with epoxy, giving excellent protection against corrosion and extending its lifespan. Despite its power, the Smart 3.25 S is designed to stay quiet, producing only 67 dB measured at 3 meters and 5 bar — about the same level as normal office noise.
It operates with an S3 duty cycle (70% on / 30% off), providing reliable performance during repeated use. The compressor also ensures ISO 8573-1 Class 0 oil-free air, meaning the compressed air is free from oil contamination and safe for sensitive environments like healthcare, food, and laboratory applications.
Technical highlights:
-
Voltage: 230 V, 50 Hz – Absorption: 8.5 A
-
Motor: 1.8 kW (2.4 HP), 2 cylinders
-
Air intake: 240 L/min
-
Air delivery: 155 L/min at 5 bar, 120 L/min at 8 bar
-
Max pressure: 10 bar
-
Tank: 24 L, epoxy coated
-
Noise level: 67 dB
-
Dimensions: 420 × 420 × 740 mm
-
Weight: 36 kg (40 kg packaged)
-
Options: Hour meter, automatic tank drain valve
If you are looking for a compact, quiet, and oil-free compressor with higher pressure capacity, the Gentilin Smart 3.25 S is the right solution. It combines Italian design, durability, and strong performance for professional use.
Manual Download
Catalog Download
Certifications Download
| Technical Data | |
|---|---|
| Condensate Treatment | - |
| Particulate Treatment | - |
| Air purity class (ISO 8573-1) | X-X-0 |
| Voltage (V) | 230,00 |
| Frequency (Hz) | 50,00 |
| Nominal rating (kW) | 1,80 |
| Nominal rating (HP) | 2,40 |
| Rotation speed (rpm) | 1.400,00 |
| Absorption (A) | 8,50 |
| Number of cylinders | 2 |
| Air intake (L/min) | 240,00 |
| Air Delivery (L/min @5 bar) | 155,00 |
| Air Delivery (L/min @8 bar) | 120,00 |
| Maximum pressure (bar) | 10,00 |
| Noise level (3,00m @ 5,00 bar) (dB(A)) | 67,00 |
| Duty cycle | S3 70% |
| Tank Coating | Epoxy (interior/exterior) |
| Tank capacity (lt) | 24,00 |
| First Maintenance (hours) | - |
| Hour Meter | Optional |
| Tank Automatic Drain Valve | Optional |
| Product Dimensions | |||
|---|---|---|---|
| Length (mm) | Width (mm) | Height (mm) | Weight (Kg) |
| 420,00 | 420,00 | 740,00 | 36,00 |
| Single Piece Packaging Dimensions | |||
| Length (mm) | Width (mm) | Height (mm) | Weight (Kg) |
| 570,00 | 680,00 | 950,00 | 40,00 |
| Full Pallet Packaging | |||
| Dimensions (cm) - LxWxH | Weight (Kg) | Pieces | |
| 1140x680x1900 | 180,00 | 4 | |

**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
