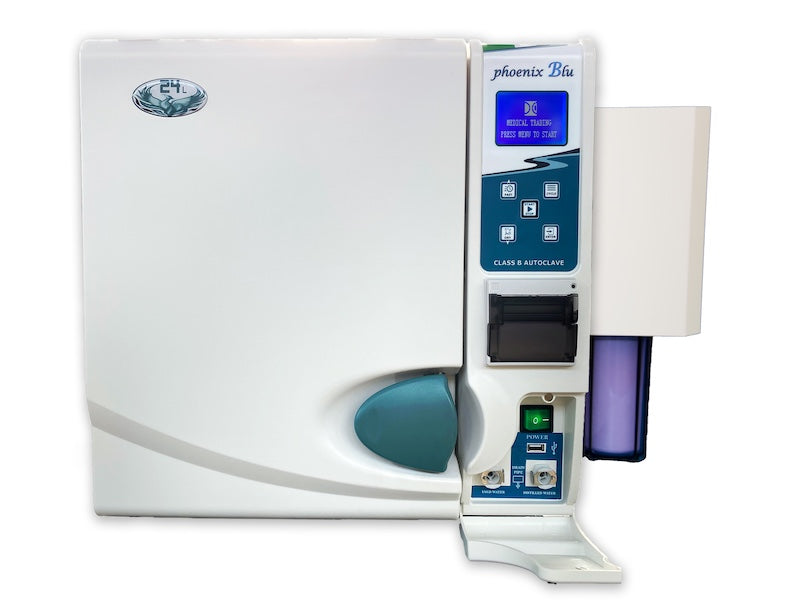

Guarisco Autoclave - Phoenix Blu Plus 18L/24L LED + Free Water Distiller

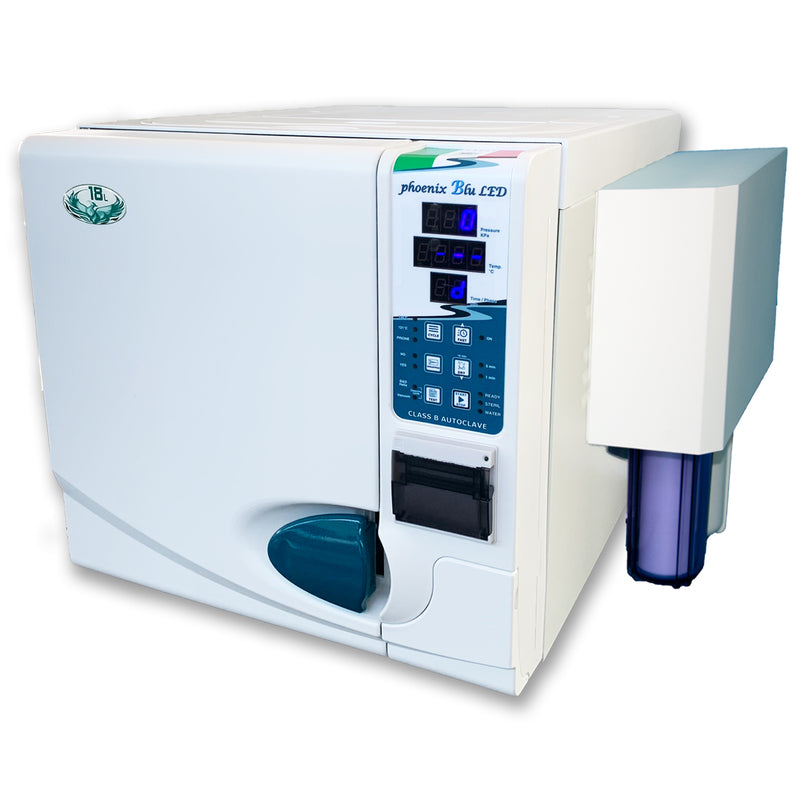

Phoenix Blu LED Plus
Class B autoclave available in 18 and 24 liters capacity. This autoclave is equipped with 3 LED displays that show in real time Temperature, Preassure, and Time/Phase of the sterilization cycle. This version is available with USB port for automatic saving of the sterilization cycle data on a USB key and with INTEGRATED PRINTER as optional.
The Phoenix Blu LED Plus+ is the answer to every healthcare professional's dream: truly automatic sterilization where you just press a button. While other autoclaves still make you work like it's 1990, this revolutionary system handles everything automatically, so you can focus on what really matters - your patients.
Why Phoenix Blu LED Plus?
-
Fully Automatic Operation: Just load instruments and press a button, everything else is automatic.
-
Automatic Water Filling & Draining: Connect to water supply once, never touch water tanks again.
-
Built-in Reverse Osmosis System: Automatically purifies water for perfect sterilization every time.
-
Integrated Printer: Automatic documentation printing after every cycle.
-
Three LED Display System: Simple, clear temperature, pressure, and time readings.
-
Smart Stand-by Function: Saves 10-15 minutes per cycle by keeping chamber warm.
-
Customizable Drying Time: Choose 1, 5, or 10 minutes based on your needs.
-
USB Data Storage: Digital backup of all sterilisation records.
-
Class B Autoclave: Sterilizes any type of instrument like hospital-grade equipment.
Technical Specifications:
-
EN 13060 Class B compliance: Hospital-grade performance.
-
Sterilizes all instrument types: wrapped, unwrapped, porous materials, hollow instruments.
-
Multi language display with audio alarms.
-
Available in multiple chamber sizes to fit your practice.
Your Investment is Protected: Backed by 2 Years Warranty on defective spare parts (not subject to wear)
MAIN FUNCTIONS:
USB PORT
Every Phoenix Blu autoclave comes with a built-in USB port, no matter the version. Simply insert the supplied USB stick to save and archive all sterilization data—forever.
The Phoenix Blu PRINTER version includes both a USB port and an integrated thermal printer. It automatically prints sterilization results on thermal paper, so you can file physical receipts as proof of completed and successful sterilization cycles.
STAND-BY FUNCTION
The stand-by function keeps the sterilization chamber warm between uses. This saves 10–15 minutes on the next cycle and helps prevent moisture buildup during overnight standby.
DRYING
With Phoenix Blu, you’re in control.
Forget preset cycles choose your drying time for every sterilization:
1, 5, or 10 minutes depending on your needs.
12 STERILIZATION CYCLES
Includes 4 sterilization cycles at either 134 °C or 121 °C, all in Class B.
By adjusting the drying time (1, 5, or 10 minutes) with the DRY button, you can achieve up to 12 custom cycle combinations.
Every cycle can also be used as a rapid cycle.
3 TEST CYCLES
Built-in safety and performance test cycles:
-
Helix Test
-
Bowie & Dick Test
-
Vacuum Test
ULTRA-FAST STEAM GENERATOR
Phoenix Blu uses a latest-generation external steam generator an ULTRA-RAPID version.
Key benefits:
-
Reduces chamber fill time
-
Speeds up the entire sterilization process
-
Transforms water into steam almost instantly
-
Prevents limescale buildup in internal parts
QUALITY AND SPEED
Every clinic wants reliability and efficiency. Phoenix Blu delivers both.
-
Built with only high-quality components
-
Every element and its position is carefully designed
-
Makes maintenance fast and simple whether routine or special
DOUBLE-HEAD VACUUM PUMP
The vacuum pump is the heart of Class B sterilization.
Phoenix Blu uses only high-efficiency, double-head vacuum pumps with three fractionated vacuum phases, ensuring deep sterilization of every instrument.
INDEPENDENT AND INSPECTABLE TANKS
Equipped with two separate tanks one for distilled water, the other for used water.
-
Easily accessed by unscrewing the top cover
-
Quick and straightforward maintenance
-
Built-in water quality control system: checks water conductivity and alerts if levels exceed 15 μS
AIR / WATER SEPARATOR
Inside the autoclave are two condensers:
-
One converts steam back into water
-
The other separates air from water
This feature helps protect internal parts from steam or corrosive liquids, preventing damage to key components like the vacuum pump.
QUICK DRAIN PIPE
All Phoenix Blu models feature a quick coupling system for water loading and draining.
-
Positioned at the front for easy access
-
Optional rear exhaust available by request (standard on some models)
| Specification | Phoenix Blu 18 | Phoenix Blu 24 |
|---|---|---|
| General Information | ||
| Sterilization System | Steam Sterilizer (Autoclave) | Steam Sterilizer (Autoclave) |
| Medical Device Class | Class IIb | Class IIb |
| Class (UNI EN 13060) | Class B | Class B |
| Physical Specifications | ||
| External Dimensions | 462 × 445 × 600 mm (W × H × D) | 462 × 445 × 600 mm (W × H × D) |
| Weight | Net: 54 kg | Gross: 56 kg | Net: 56 kg | Gross: 59 kg |
| Sterilization Chamber | 255 × 360 mm (ø × D) | 255 × 460 mm (ø × D) |
| Trays (3 included) | 285 × 190 mm | 385 × 190 mm |
| Power & Installation | ||
| Power Consumption | 1800 W | 1800 W |
| Voltage | 220 V | 220 V |
| Min. Support Surface Depth | 500 mm | 500 mm |
| Min. Support Surface Width | 460 mm | 460 mm |
| Min. Space for Water Loading | 165 mm | 165 mm |
| Operating Parameters | ||
| Sterilization Temperature | 121°C - 134°C | 121°C - 134°C |
| Maximum Temperature | 138°C | 138°C |
| Working Pressure | 121°C: 1.0-1.3 bar (STP) 134°C: 2.0-2.4 bar (STP) |
121°C: 1.0-1.3 bar (STP) 134°C: 2.0-2.4 bar (STP) |
| Max Working Empty | -0.9 bar (STP) | -0.9 bar (STP) |
| Maximum Pressure | 2.5 bar | 2.5 bar |
| Water System | ||
| Water Tank Capacity | Distilled: 4.6 L | Used: 5.0 L | Distilled: 4.6 L | Used: 5.0 L |
| Water Consumption per Cycle | 0.30-0.55 L (15 cycles) | 0.40-0.60 L (11 cycles) |
| Filtration | ||
| Bacteriological Filter (Air) | ø 56 mm | 0.3 μm capacity | ø 56 mm | 0.3 μm capacity |
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
See manual and certifications here
