KERN Compound Microscope - OBT 231 - Illumination (transmitted) LED - Objectives 4x,10x,40x,100x
KERN OBT 231

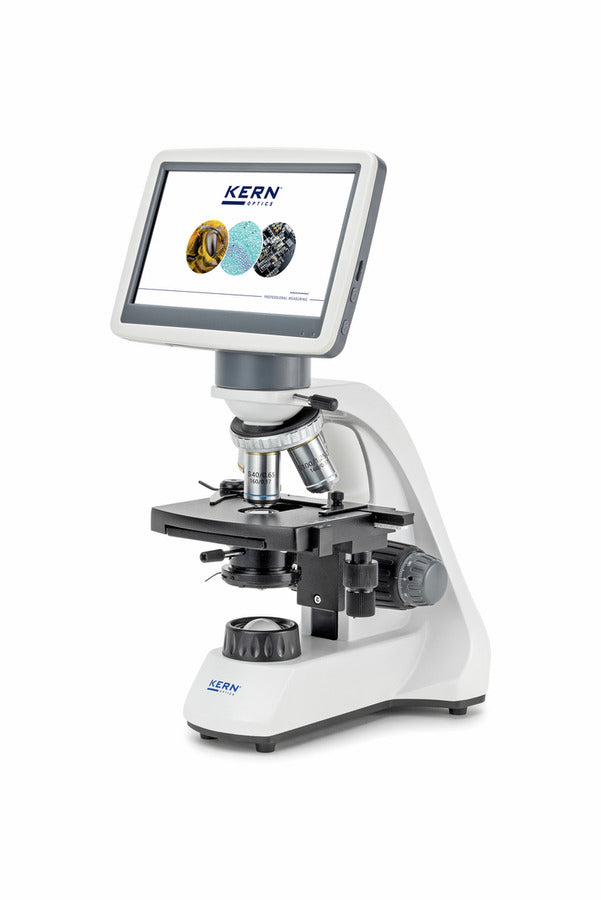

The OBT 231 is a modern school microscope that comes with a digital kit and a large LCD screen. This makes it easy to see samples clearly without needing to look through the eyepiece all the time. The digital kit includes software for measuring, a USB connection, and a micro SD card slot so you can record and save images or videos.
The microscope has a strong design and simple controls, which makes it good for daily use in schools and training. The 1 W LED light can be dimmed as needed and has a long lifetime. It can also run on batteries if you need to use it away from power.
The OBT 231 has a 1.25 Abbe condenser that can be adjusted in height. This makes it possible to focus the light very well on the sample. Focusing is easy with coarse and fine knobs on both sides. The mechanical stage allows you to move slides smoothly while working. A dust cover and user instructions are included with the delivery, so the device is ready to use right away.
Features
-

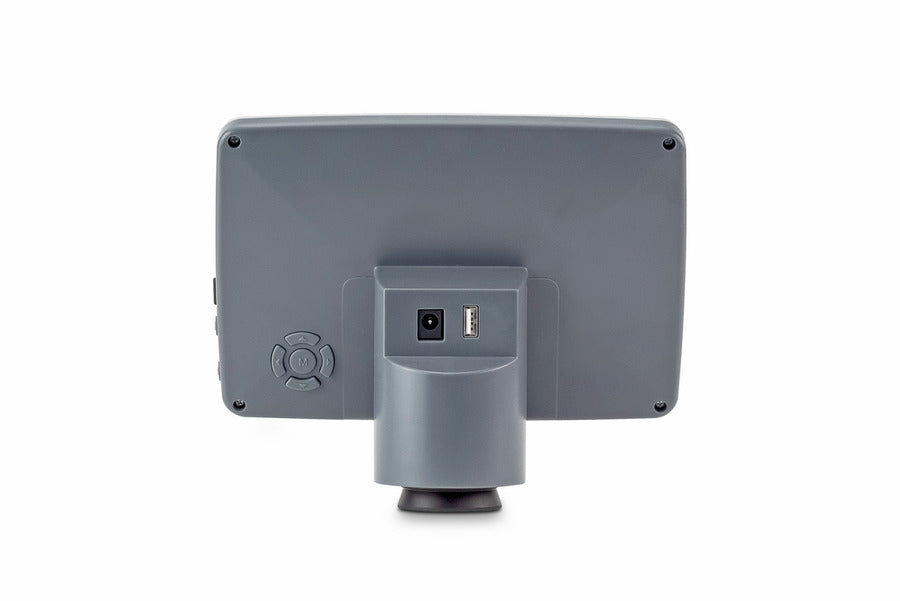

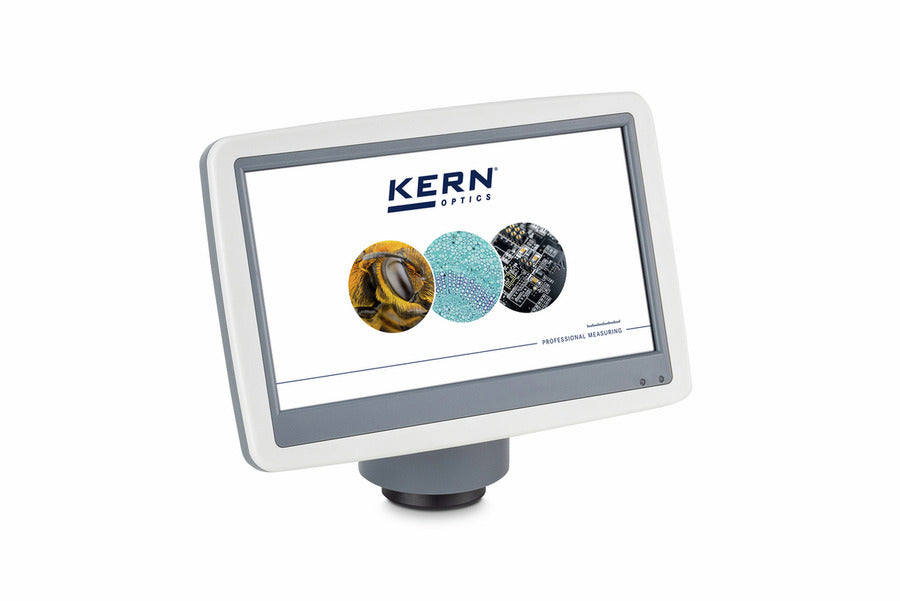

Digital kit with LCD screen for clear sample viewing.
-
Software, USB port, and micro SD slot for saving images and videos.
-
1 W LED light with long life and adjustable brightness.
-
Can also be powered with batteries for mobile use.
-
Adjustable 1.25 Abbe condenser with aperture diaphragm.
-
Smooth focusing with coarse and fine knobs on both sides.
-
Mechanical stage for easy slide movement.
-
Supplied with dust cover and instructions.
Applications
The OBT-231 is often used in primary schools, secondary schools, and training centres. It is also popular for hobbies where users need to view cells, plants, or small objects. The digital kit makes it especially good for teaching groups because the screen can show the sample to many students at the same time.
Technical Data
-
Optical system: Finite.
-
Standard objectives: 4×, 10×, 40×, 100×.
-
Lens quality: Achromatic.
-
Nosepiece positions: 4.
-
Illuminance: Transmitted light.
-
Illumination type: LED, 1 W.
-
Condenser type: Abbe, 1.25, fixed.
-
Focusing: Coaxial coarse and fine drive.
-
Fine focus step: 0.0025 mm.
-
Display: LCD, 7 inch, 1844×1080 resolution.
-

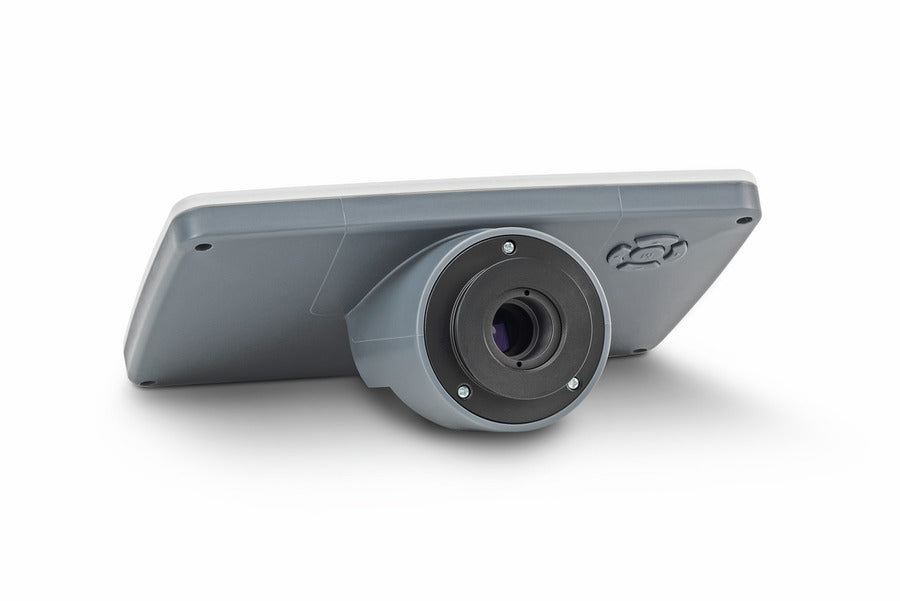

Camera: CMOS, 1/2.8 inch sensor, 2 MP, 60 fps.
-
Interfaces: USB 2.0, Micro SD slot.
-
Size (W×D×H): 182 × 195 × 360 mm.
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
