KERN Digital Microscope Set - OBE 124T241 - Objectives 4x,10x,40x - Illumination (transmitted) LED - USB 2.0, Wifi, HDMI, MicroSD card slot
KERN OBE 124T241

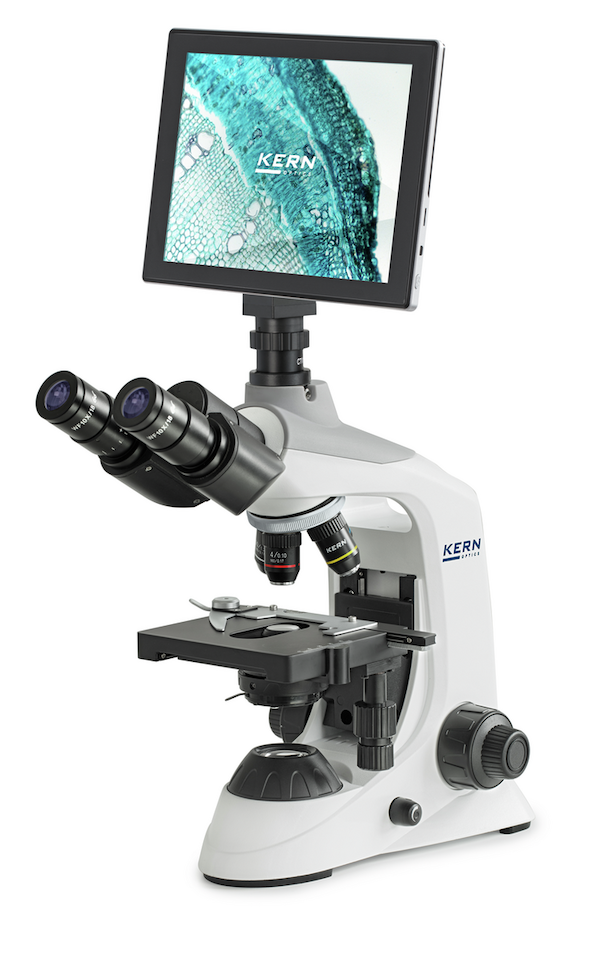

The OBE 124T241 is a laboratory microscope set that comes as a complete digital solution with a mounted tablet camera and the matching C-mount adapter. It is designed for simple, direct investigation of samples on the screen and is particularly suited for education, training, and demonstration purposes in laboratories. A protective dust cover, eye cups, and multi lingual user instructions are also included.
The OBE 124 model combines sturdy construction with ergonomic design. A storage compartment at the back allows quick and practical storage of the power cable, and the USB connection also enables power supply through an external power bank. The infinitely dimmable 3 W LED ensures bright illumination of samples. The integrated Butterfly tube allows flexible viewing angles, while the height adjustable 1.25 Abbe condenser with aperture diaphragm guarantees precise concentration of light. The fully equipped mechanical stage is moved using coarse and fine focusing knobs on both sides, making sample adjustment smooth and accurate.
The mounted ODC 241 tablet camera features a 10.5" HD touchscreen with a 5 MP sensor. It allows live transfer of images to the tablet and enables capturing images and videos for documentation. Functions such as measuring distances, surfaces, and angles, as well as manual counting, are also included. Automatic white balance and contrast adjustment simplify the workflow. The integrated interfaces support data storage on a USB stick or SD card, mouse connection, and image transfer to an external screen via HDMI.
Technical Data
-
Optical system: Finite.
-
Tube type: Trinocular.
-
Ocular magnifications: 10x.
-
Ocular visual field: 18 mm.
-
Standard objectives: 4×, 10×, 40×.
-
Lens quality: Achromatic.
-
Nosepiece screw-in locations: 4.
-
Illuminance: Transmitted light.
-
Illumination intensity transmitted light: 3 W.
-
Illumination type transmitted light: LED.
-
Condenser type: Abbe.
-
Condenser aperture: 1.25.
-
Condenser mount: Fixed.
-
Focusing mechanism: Coaxial coarse and fine drive.
-
Fine drive minimum: 0.002 mm.
-
Display resolution: 2048×1536.
-
Camera sensor type: Sony CMOS.
-
Camera colour depth: Colour.
-
Camera sensor size: 1/2.8".
-
Camera resolution: 5 MP.
-
Camera framerate: 30 fps.
-
Interfaces: WiFi, USB 2.0, HDMI, MicroSD card slot.
-
Dimension (W×D×H): 360×235×540 mm.
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
