KERN Digital Microscope Set - OBN 132T241 - Objectives 4x,10x,20x,40x,100x - Illumination (transmitted) Halogen - USB 2.0, Wifi, HDMI, MicroSD card slot
KERN OBN 132T241

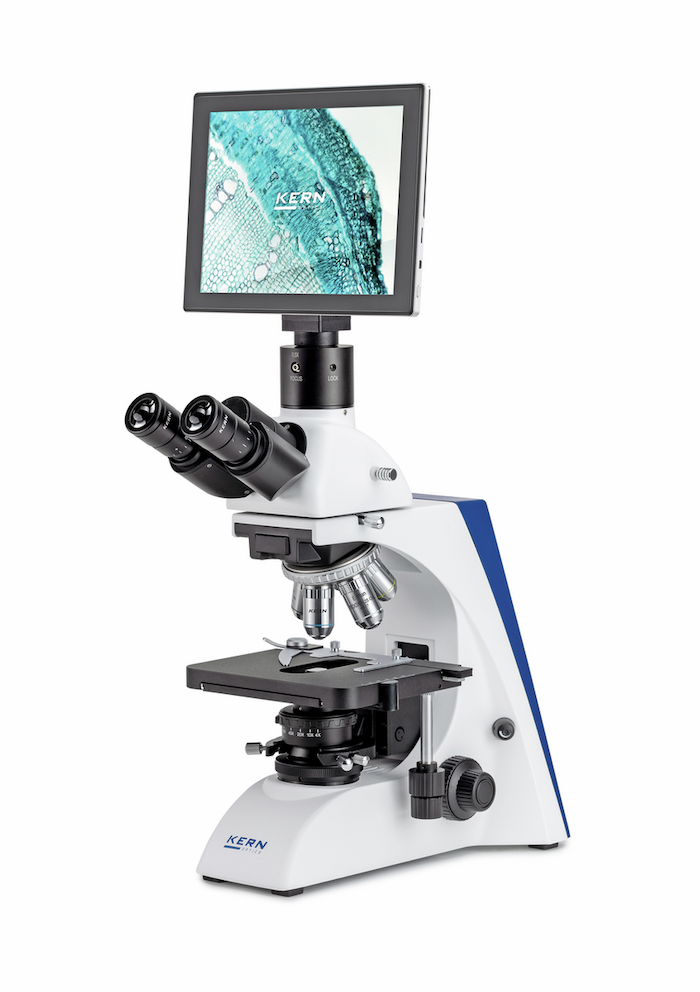

The OBN 132T241 is a digital microscope set that combines the OBN 132 laboratory microscope with the ODC 241 tablet camera and a C-mount adapter. The package also includes a dust cover, eyecups, multilingual user instructions, and pre-installed software.
The OBN 132 offers Infinity Plan optics, strong halogen illumination, and a Koehler illumination system with an adjustable Abbe condenser. The ODC 241 tablet camera provides direct live display on its 9.7" LCD touchscreen and supports documentation with photos, videos, and measuring functions.
Features
-
Complete set with OBN 132 microscope and ODC 241 tablet camera.
-
Infinity Plan optics with modular configuration options.
-
Strong, continuously dimmable 20 W halogen transmitted illumination.
-
Koehler illumination with adjustable field diaphragm and condenser.
-
Large mechanical stage with coaxial coarse and fine focus.
-
ODC 241 tablet camera with 5 MP Sony CMOS sensor and 9.7" HD touchscreen.
-
Includes USB, HDMI, WiFi, and MicroSD interfaces for flexible connectivity.
-
Delivered with multilingual instructions, eyecups, and dust cover.
Applications
The OBN 132T241 is ideal for laboratory, research, and educational use. It is widely applied in biology, microbiology, medicine, and quality control. The tablet camera makes it suitable for teaching and demonstrations where live sample monitoring is required.
Technical Data
-
Optical system: Infinity.
-
Tube type: Trinocular.
-
Ocular magnifications: 10x.
-
Ocular visual field: 20 mm.
-
Standard objectives: 4×, 10×, 20×, 40×, 100×.
-
Lens quality: Infinity Plan.
-
Nosepiece positions: 5.
-
Illumination: 20 W halogen transmitted light.
-
Condenser: Abbe, 1.25, centerable.
-
Focusing mechanism: Coaxial coarse and fine drive.
-
Fine drive minimum: 0.002 mm.
-
Display: 9.7" LCD touchscreen, resolution 2048×1536.
-
Processor: Quad Core Cortex-A17, 1.8 GHz.
-
Camera: Sony CMOS, 5 MP, 1/2.8", 30 fps.
-
Interfaces: WiFi, USB 2.0, HDMI, MicroSD.
-
C-Mount magnification: 0.5x.
-
Dimensions (W×D×H): 390 × 235 × 620 mm.
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
