KERN Digital Microscope Set - OBN 135T241 - Objectives 4x,10x,20x,40x,100x - Illumination (transmitted) LED - USB 2.0, Wifi, HDMI, MicroSD card slot
KERN OBN 135T241

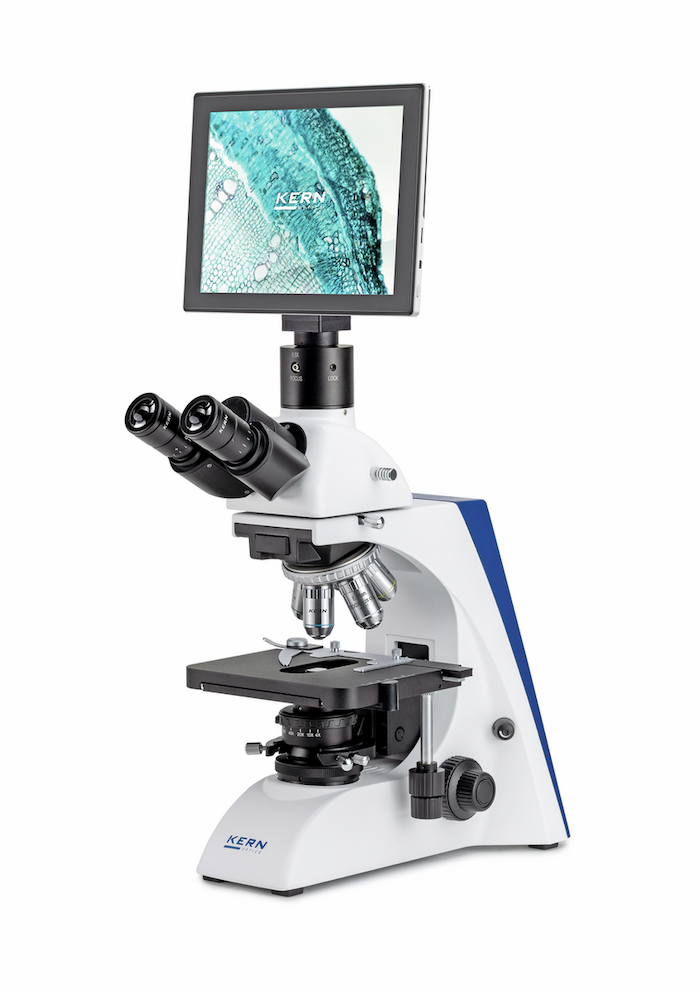

The OBN 135T241 is a digital microscope set that combines a laboratory-grade microscope from the OBN series with an integrated tablet camera. The set includes the OBN 135 microscope, the KERN ODC 241 tablet camera, the matching C-mount adapter, and standard accessories such as a dust cover, eyecups, and multilingual instructions.
The OBN 135 features Infinity Plan optics, strong LED illumination, and a flexible Koehler illumination system for precise light adjustment. The ODC 241 tablet camera allows live viewing on its integrated touch screen and supports image and video capture with measuring functions. This makes the set suitable for both routine laboratory work and teaching environments.
Features
-
Complete digital microscope set with OBN 135 microscope and ODC 241 tablet camera.
-
Infinity Plan optics for high image clarity and color accuracy.
-
Strong and dimmable 3 W LED transmitted illumination.
-
Koehler illumination system with adjustable field diaphragm and 1.25 Abbe condenser.
-
Large mechanical stage with coaxial coarse and fine focus on both sides.
-
Tablet camera with 9.7" LCD touch screen and 5 MP Sony CMOS sensor.
-
Built-in measuring and documentation functions with HDMI, WiFi, and USB connectivity.
-
Supplied with dust cover, eyecups, C-mount adapter, and multilingual instructions.
Applications
The OBN 135T241 is suitable for laboratories, universities, and training centers. Typical uses include biology, microbiology, cell culture, and quality control. It can also be used for demonstrations and education, where live images and recordings are needed.
Technical Data
-
Optical system: Infinity.
-
Tube type: Trinocular.
-
Ocular magnifications: 10x.
-
Ocular visual field: 20 mm.
-
Standard objectives: 4×, 10×, 20×, 40×, 100×.
-
Lens quality: Infinity Plan.
-
Nosepiece screw-in locations: 5.
-
Illumination: 3 W LED transmitted light.
-
Focusing mechanism: Coaxial coarse and fine drive.
-
Fine drive minimum: 0.002 mm.
-
Camera sensor: Sony CMOS, 5 MP, 1/2.8".
-
Display: 9.7" LCD touch, resolution 2048×1536.
-
Camera framerate: 30 fps.
-
Interfaces: WiFi, USB 2.0, HDMI, MicroSD.
-
C-mount magnification: 0.5x.
-
Dimensions (W×D×H): 390 × 235 × 620 mm.
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
