KERN Digital Microscope Set - OBN 142C861 - Objectives 4x,10x,20x,40x,100x - Illumination (transmitted) LED - USB 3.0
KERN OBN 142C861

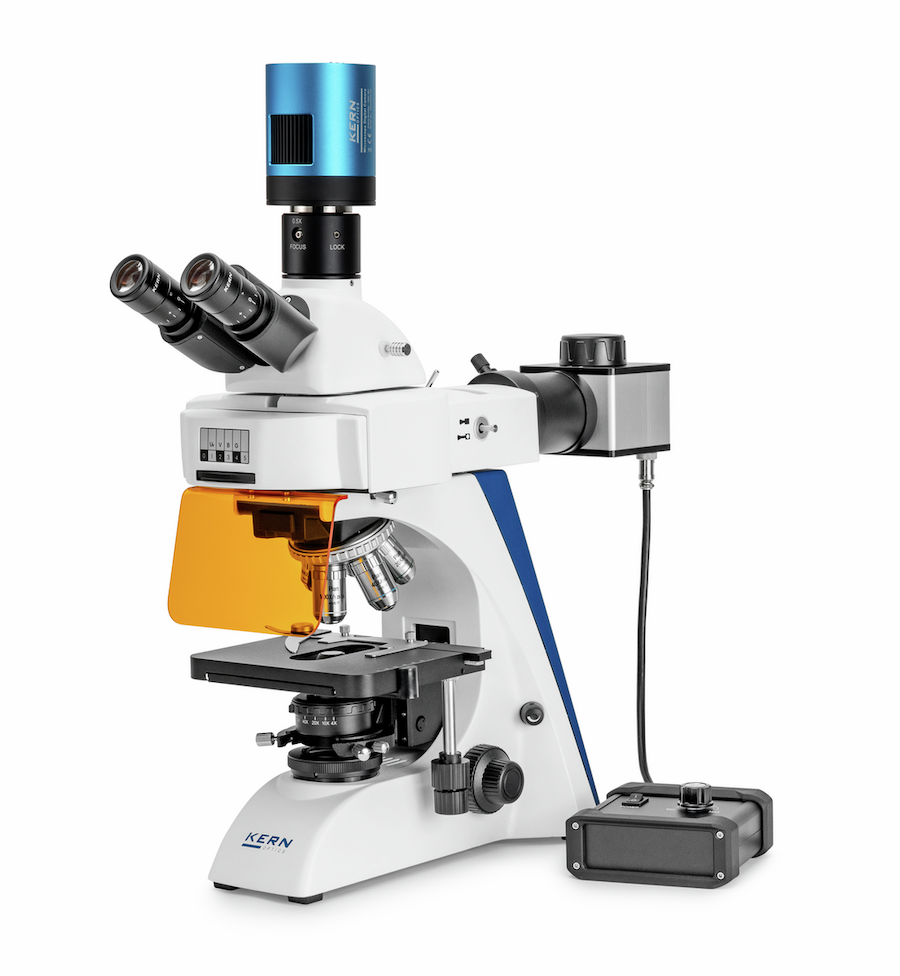

The OBN 142C861 is a digital fluorescence microscope that combines the OBN 142 fluorescence microscope with the ODC 861 cooled camera and a matching C-mount adapter. It provides high quality Infinity Plan optics, strong LED illumination, and an advanced camera designed specifically for fluorescence applications.
The OBN 142 microscope features a 3 W LED transmitted light unit and a 5 W LED epifluorescence incident illumination system. A professional Koehler illumination setup includes an adjustable field diaphragm and a height adjustable Abbe condenser (N.A. 1.25) with a centering function and adjustable aperture diaphragm. A large mechanical stage with coaxial coarse and fine focus knobs ensures accurate sample positioning. The integrated fluorescence filter wheel has up to six slots and comes with B, G, UV, and V filters preinstalled.

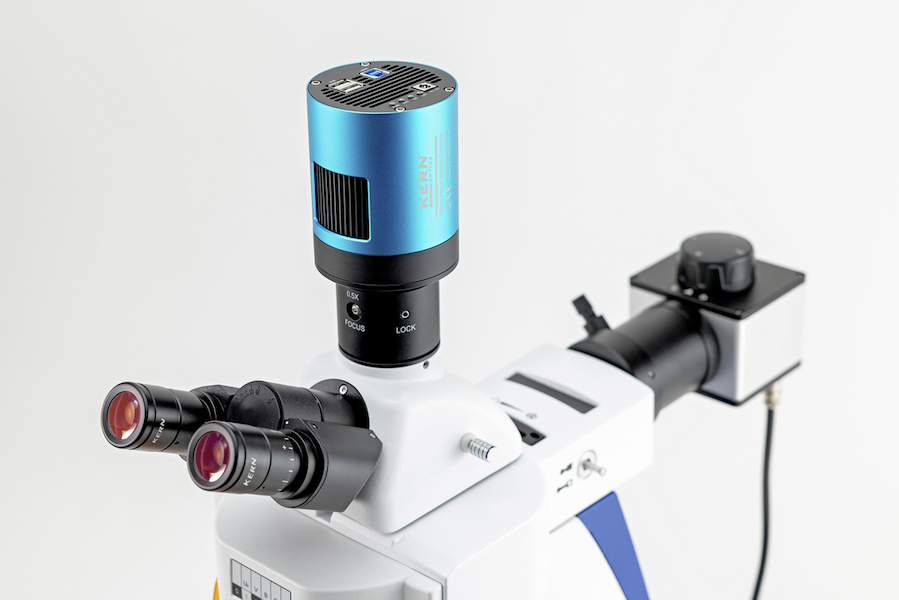

The ODC 861 camera uses Sony CMOS sensor technology with Peltier cooling, which reduces noise when working under weak lighting conditions. With a 20 MP resolution, high sensitivity, and clear colour reproduction, it is suited for demanding fluorescence imaging. Realtime images can be transferred to a PC or laptop via USB 3.0, with additional USB 2.0 ports available. The camera is delivered with KERN VIS Pro OXM 902 software, a sturdy storage box for safe transport, and is powered by an external 12 V adapter.
Features
-
Complete fluorescence microscope set with cooled digital camera.
-
Infinity Plan optics with five-position nosepiece.
-
3 W LED transmitted illumination and 5 W LED fluorescence illumination.
-
Fluorescence filter wheel with B, G, UV, V filters included.
-
Large mechanical stage with ergonomic coaxial coarse and fine focus.
-
ODC 861 Sony CMOS camera with Peltier cooling for low-noise imaging.
-
20 MP resolution with 1" sensor size.
-
Realtime image transfer via USB 3.0 and USB 2.0.
-
Includes KERN VIS Pro OXM 902 software and transport box.
Applications
The OBN 142C861 is designed for advanced fluorescence microscopy in biology, medicine, microbiology, and cell research. It is especially suited for applications requiring high sensitivity and low noise, such as imaging weak fluorescence signals.
Technical Data
-
Optical system: Infinity.
-
Tube type: Trinocular.
-
Ocular magnifications: 10x.
-
Ocular visual field: 20 mm.
-
Standard objectives: 4×, 10×, 20×, 40×, 100×.
-
Lens quality: Infinity Plan.
-
Nosepiece: 5-position.
-
Illumination:
-
Transmitted: LED, 3 W.
-
Incident (fluorescence): LED, 5 W.
-
Fluorescence unit: Ultraviolet, Violet, Blue, Green (LED).
-
Condenser: Abbe 1.25 N.A., centerable, with aperture diaphragm.
-
Focusing: Coaxial coarse and fine drive.
-
Fine drive minimum: 0.002 mm.
-
Camera: Sony CMOS, colour, 1" sensor, 20 MP.
-
Camera framerate: 5–30 fps.
-
Interfaces: USB 3.0.
-
Dimensions (W×D×H): 390 × 235 × 620 mm.
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
