KERN Digital Microscope Set - OBN 142T251 - Objectives 4x,10x,20x,40x,100x - Illumination (transmitted) LED - Ethernet, USB 3.0, Wifi, HDMI, MicroSD card slot

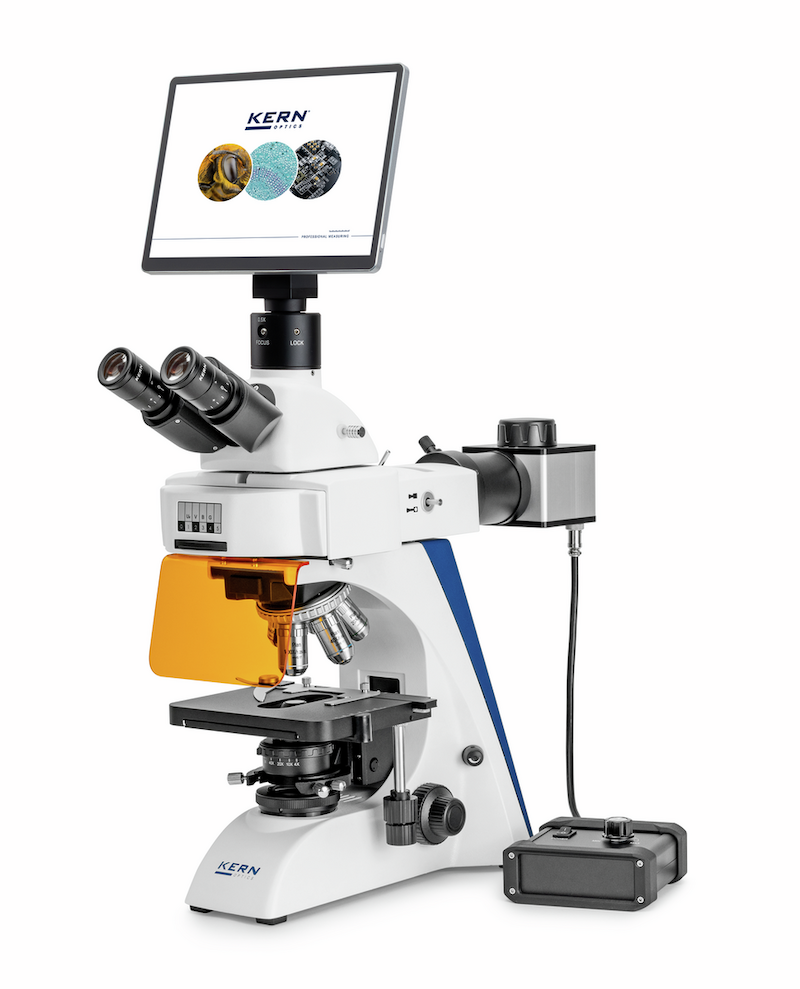

KERN OBN 142T251
The OBN 142T251 is a complete digital fluorescence microscope set that combines the OBN 142 microscope with the ODC 251 tablet camera and a matching C-mount adapter. It offers high-quality optics, stable design, and both transmitted and epifluorescence LED illumination for excellent imaging results.
The OBN 142 fluorescence microscope is built on the proven OBN series platform, known for reliability and versatility. It features a 3 W LED transmitted illumination and a 5 W LED epifluorescence incident illumination unit, making it suitable for demanding fluorescence applications. The system includes a professional Koehler illumination setup with an adjustable field diaphragm and a height-adjustable Abbe condenser (1.25 N.A.) that can be centered and fitted with an adjustable aperture diaphragm.
The large mechanical stage with ergonomic coaxial coarse and fine focus knobs ensures fast and accurate sample adjustment. A filter wheel with up to six slots is supplied with standard B, G, UV, and V fluorescence filters, covering the most common fluorescence applications.
The ODC 251 tablet camera integrates a 10.5" HD touchscreen with an 8 MP CMOS sensor. It supports live image viewing, 4K video recording, and documentation. Measurement tools such as distance and surface calculations are included. Images and videos can be stored on USB or SD card, or displayed on an external screen via HDMI. Connectivity includes WiFi, Bluetooth, Ethernet, and USB.
Features
-
Complete fluorescence microscope set with tablet camera.
-
Infinity Plan optics with 5-position nosepiece.
-
3 W LED transmitted light and 5 W LED fluorescence incident light.
-
Filter wheel with B, G, UV, V fluorescence filters.
-
Large mechanical stage with coaxial coarse and fine focus.
-
ODC 251 tablet camera with 10.5" HD touchscreen and 8 MP sensor.
-
Supports live imaging, 4K video recording, and measurements.
-
Interfaces: WiFi, Ethernet, Bluetooth, USB, HDMI.
-
Includes C-mount adapter, dust cover, and user instructions.
Applications
The OBN 142T251 is ideal for fluorescence microscopy in biology, medicine, microbiology, and cell culture analysis. It is widely used in teaching, laboratory research, and quality control, where both brightfield and fluorescence imaging are required.
Technical Data
-
Optical system: Infinity.
-
Tube type: Trinocular.
-
Ocular magnifications: 10x.
-
Ocular visual field: 20 mm.
-
Standard objectives: 4×, 10×, 20×, 40×, 100×.
-
Lens quality: Infinity Plan.
-
Nosepiece: 5-position.
-
Illumination:
-
Transmitted: LED, 3 W.
-
Incident (fluorescence): LED, 5 W.
-
-
Fluorescence unit: Ultraviolet, Violet, Blue, Green (LED).
-
Condenser: Abbe 1.25 N.A., centerable, with aperture diaphragm.
-
Focusing mechanism: Coaxial coarse and fine drive.
-
Fine drive minimum: 0.002 mm.
-
Display: 10.5" HD touchscreen.
-
Processor: Rockchip RK3568 Quad-Core.
-
Camera sensor: CMOS, 1/1.8".
-
Camera resolution: 8 MP, 4K video.
-
Camera framerate: 30 fps.
-
Colour depth: Colour.
-
Interfaces: Ethernet, Bluetooth, WiFi, USB 2.0, USB 3.0, HDMI.
-
Dimensions (W×D×H): 390 × 235 × 620 mm.
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
