KERN Digital Microscope Set - OBN 159T251 - Objectives 4x,10x,20x,40x,100x - Illumination (transmitted) LED - Ethernet, Bluetooth, USB 3.0, Wifi, HDMI

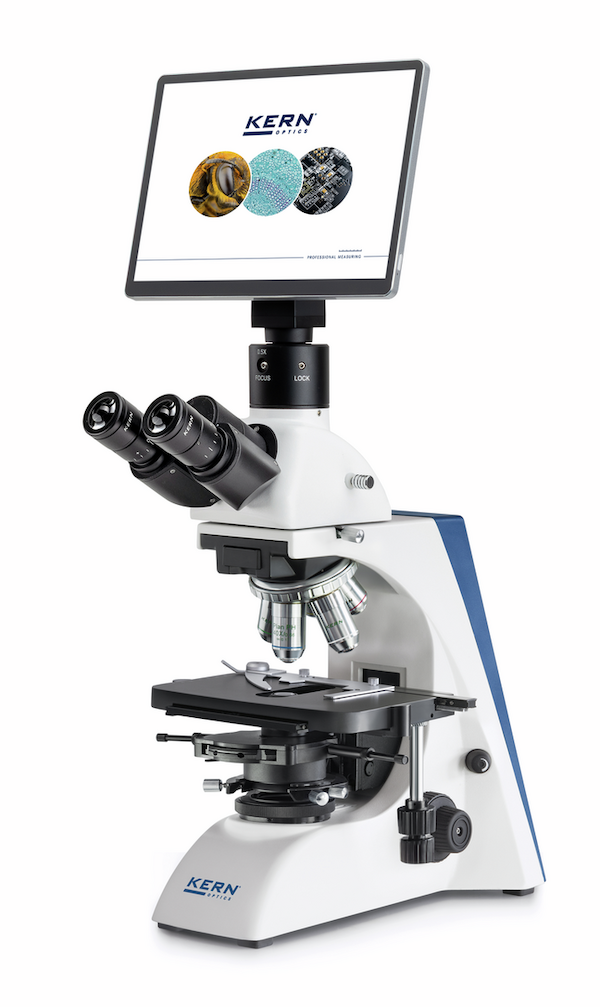

KERN OBN 159T251
The OBN 159T251 is a complete digital microscope set combining the OBN 159 phase contrast microscope with the ODC 251 tablet camera and matching C-mount adapter. The package provides direct digital viewing, image capture, and documentation.
The OBN 159 microscope is built for professional use, offering modular components and ergonomic design. It comes pre-configured as a phase contrast microscope, equipped with an Infinity Plan objective set, a quintuple nosepiece, and a phase contrast condenser. Strong, continuously dimmable 3 W LED transmitted illumination and Koehler illumination with an adjustable field diaphragm ensure precise lighting for demanding applications.
The large mechanical stage allows smooth specimen handling, while the coaxial coarse and fine focus knobs on both sides enable accurate adjustments. The height-adjustable Abbe condenser (1.25 N.A.), with a centering and adjustable aperture diaphragm, further enhances image quality for phase contrast work.
The ODC 251 tablet camera integrates an Android tablet with a 10.5" HD touchscreen and an 8 MP CMOS sensor. It supports live sample observation, 4K video recording, and image documentation. Measurement functions like distance and surface calculation are included. Files can be stored, transferred, or displayed on an external monitor via HDMI. Connectivity is available through WiFi, USB, Ethernet, and Bluetooth, making this system ideal for research, training, and lab environments.
Features
-
Complete set with OBN 159 microscope and ODC 251 tablet camera.
-
Infinity Plan optics with pre-configured phase contrast system.
-
Koehler illumination with 3 W LED transmitted light.
-
10.5" HD touchscreen with 8 MP CMOS sensor and 4K video.
-
Quintuple nosepiece and height-adjustable Abbe condenser.
-
Large mechanical stage with ergonomic controls.
-
Interfaces: WiFi, Ethernet, Bluetooth, USB, HDMI.
-
Includes C-mount adapter, dust cover, and user instructions.
Applications
The OBN 159T251 is suitable for advanced laboratory work, teaching, and research. It is commonly used in biology, medicine, tissue studies, microbiology, and training environments requiring phase contrast microscopy and digital documentation.
Technical Data
-
Optical system: Infinity.
-
Tube type: Trinocular.
-
Ocular magnifications: 10x.
-
Ocular visual field: 20 mm.
-
Standard objectives: 4×, 10×, 20×, 40×, 100×.
-
Lens quality: Infinity Plan.
-
Nosepiece: 5-position.
-
Illumination: LED transmitted, 3 W.
-
Condenser: Abbe 1.25 N.A., centerable, with aperture diaphragm.
-
Focusing mechanism: Coaxial coarse and fine drive.
-
Fine drive minimum: 0.002 mm.
-
Display: 10.5" HD touchscreen.
-
Processor: Rockchip RK3568 Quad-Core.
-
Camera sensor: CMOS, 1/1.8".
-
Camera resolution: 8 MP, 4K video.
-
Camera framerate: 30 fps.
-
Colour depth: Colour.
-
Interfaces: Ethernet, Bluetooth, WiFi, USB 2.0, USB 3.0, HDMI.
-
Dimensions (W×D×H): 390 × 235 × 620 mm.
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
