KERN Digital Microscope Set - OCM 162T251 - Objectives 4x,10x,20x,40x,100x - Illumination (transmitted) LED - Ethernet, Bluetooth, USB 3.0, Wifi, HDMI
KERN OCM 162T251

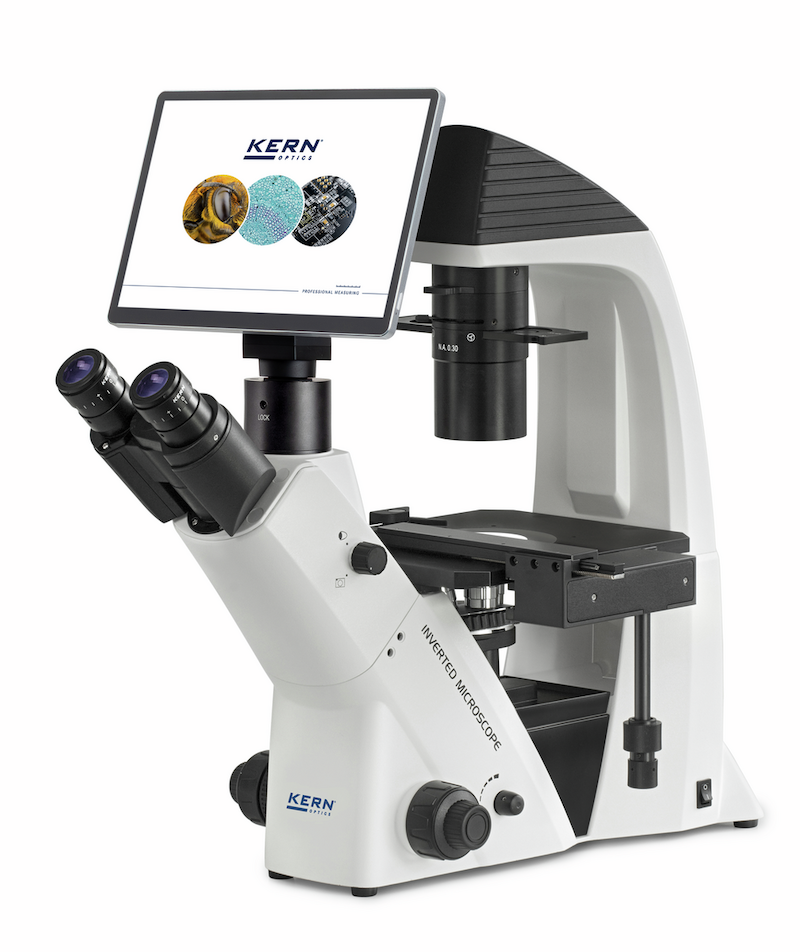

The OCM 162T251 is a complete digital microscope set that combines the OCM 162 inverted microscope with the ODC 251 tablet camera. The package includes a trinocular microscope, C-mount adapter, tablet camera, and essential accessories, offering direct digital viewing and documentation.
The OCM 162 microscope is designed with a stable, ergonomic stand and a large working distance, making it suitable for cell cultures and laboratory applications. It features 5 W LED transmitted light, a special Abbe condenser with 0.3 N.A., and a 72 mm working distance. The mechanical stage with specimen holder (Ø 110 mm) allows efficient sample handling, and additional holders for petri dishes are included or available as options.
The ODC 251 tablet camera integrates an Android tablet with a 10.5" HD display and an 8 MP CMOS sensor. It allows live sample observation, image capture, video recording in 4K, and measurement functions such as distance and surface calculations. Images and data can be stored directly, transferred via USB, or displayed on an external screen using HDMI. With interfaces like WiFi, Bluetooth, Ethernet, and USB, the system ensures versatile connectivity for lab, training, and quality control environments.
Features
-
Complete set with OCM 162 microscope and ODC 251 tablet camera.
-
10.5" HD touchscreen with intuitive Android interface.
-
8 MP CMOS sensor with 4K video and high-resolution image capture.
-
Infinity Plan optics with a 5-position nosepiece.
-
5 W LED illumination with Abbe 0.3 condenser and 72 mm working distance.
-
Interfaces: WiFi, Bluetooth, Ethernet, HDMI, USB 2.0, USB 3.0.
-
Includes C-mount adapter, petri dish holders, dust cover, and user instructions.
Applications
The OCM 162T251 is suited for cell culture monitoring, research, education, quality control, and routine laboratory use. It is often applied in biology, microbiology, tissue studies, and training environments where digital documentation and live viewing are essential.
Technical Data
-
Optical system: Infinity.
-
Tube type: Trinocular.
-
Ocular magnifications: 10x.
-
Ocular visual field: 22 mm.
-
Standard objectives: 4×, 10×, 20×, 40×, 100×.
-
Lens quality: Infinity Plan.
-
Nosepiece: 5-position.
-
Illumination: LED transmitted, 5 W.
-
Condenser: Abbe 0.3 N.A., fixed.
-
Focusing mechanism: Coaxial coarse and fine drive.
-
Fine drive minimum: 0.002 mm.
-
Display: 10.5" HD touchscreen.
-
Processor: Rockchip RK3568 Quad-Core.
-
Camera sensor: CMOS, 1/1.8".
-
Camera resolution: 8 MP, 4K video.
-
Camera framerate: 30 fps.
-
Colour depth: Colour.
-
Interfaces: Ethernet, Bluetooth, WiFi, USB 2.0, USB 3.0, HDMI.
-
Dimensions (W×D×H): 390 × 235 × 620 mm.
