KERN Digital Microscope Set - OZL 464C832 - Objectives 0,7x,-4,5x - Illumination (transmitted) LED - USB 3.0

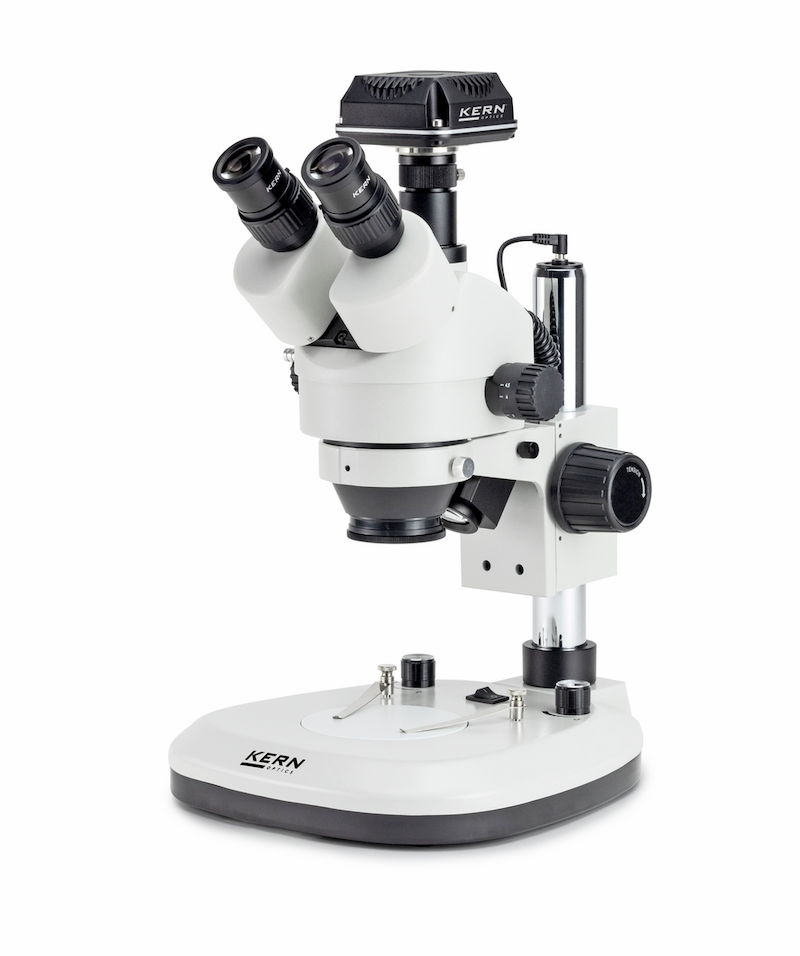

KERN OZL 464C832
The OZL 464C832 is a digital stereo microscope set from the OZL-46 series, equipped with a trinocular head, LED illumination, and a mounted C-mount camera. It comes with a pillar stand, a holder, LED ring illumination, and a dust cover. A C-mount adapter is included to allow direct connection of the camera.
This model combines the stability and easy handling of the OZL-46 series with the advantages of digital imaging. The C-mount camera included in this version is the ODC 832, which connects via USB 3.0 for fast and clear image transfer. It is well suited for demanding applications such as darkfield, fluorescence, and phase contrast. The camera delivers sharp images, a high frame rate, and stable image performance, making it useful for professional laboratory and quality control environments.
The stereo microscope itself features LED incident and transmitted illumination, both dimmable, ensuring bright and even lighting of different sample types. The zoom objective allows a continuous magnification range from 0.7x to 4.5x, giving a total magnification of 7x to 45x. With its wide working distance and solid mechanics, this microscope is ideal for longer working sessions in schools, workshops, and laboratories.
The ODC 832 camera uses CMOS sensor technology and provides 5.1 MP resolution. It is supported by the KERN Microscope VIS software, included in delivery, which allows image capture, video recording, measurement functions, and calibration with the supplied object micrometer. The USB-powered design makes it simple to use without an extra power supply.
Features
-
Complete stereo microscope set with trinocular head.
-
Mounted ODC 832 C-mount camera with USB 3.0.
-
Zoom range 0.7x to 4.5x (total magnification 7x–45x).
-
LED incident and transmitted illumination, dimmable.
-
Wide working distance for flexible sample sizes.
-
Includes holder, dust cover, software, and user instructions.
Applications
The OZL 464C832 is used in training, quality control, workshops, electronics, and laboratories. It is suited for three dimensional objects such as insects, seeds, circuit boards, and mechanical parts. The digital camera expands its use to documentation, measurement, and live display for teaching or professional reporting.
Technical Data
-
Optical system: Greenough.
-
Tube type: Trinocular.
-
Ocular magnifications: 10x.
-
Ocular visual field: 20 mm.
-
Magnification ratio: 6.4:1.
-
Zoom range: 0.7x to 4.5x.
-
Illumination: LED transmitted 3 W, LED incident 3 W.
-
Focusing mechanism: Coarse drive.
-
Camera sensor: CMOS.
-
Camera sensor size: 1/2.5".
-
Camera resolution: 5.1 MP.
-
Camera framerate: 14.2 – 101.2 fps.
-
Interfaces: USB 3.0.
-
Working distance: 105 mm.
-
Maximum sample height: 140 mm.
-
Stand type: Pillar.
-
Dimensions (W×D×H): 300×240×490 mm.
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
