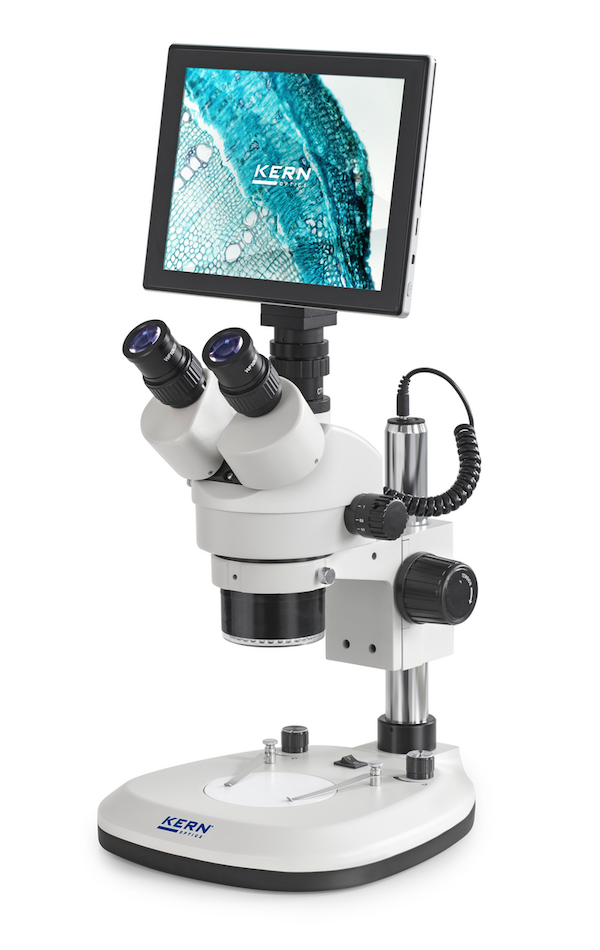

KERN OZL 464T241
The OZL 464T241 is a stereo microscope set from the OZL-46 series combined with a digital tablet camera. It comes with a trinocular microscope head, LED ring illumination, a pillar stand, a holder, and a dust cover. A C-mount adapter is included so the camera can be mounted directly.
This set is designed for both education and practical use in workshops and laboratories. The integrated KERN ODC 241 tablet camera allows live display of samples on a 9.7" LCD touchscreen, making it suitable for demonstrations, classroom training, and quick documentation. Images and videos can be captured directly on the tablet, and simple measuring tools such as distance, surface, and angle measurement are available.
The stereo microscope itself is part of the OZL-46 range, known for easy handling, flexibility, and robust construction. Both incident and transmitted LED illumination are included, ensuring strong and even lighting for all sample types. The zoom objective provides continuous magnification from 0.7x to 4.5x, resulting in a total magnification range of 7x to 45x. With clear images, a wide working distance, and a large viewing field, this microscope is well suited for training, assembly, repair, and quality control.
The ODC 241 tablet camera is based on Sony CMOS sensor technology and delivers 5 MP resolution with smooth 30 fps frame rate. It supports data transfer and additional functions through WiFi, USB, HDMI, and MicroSD card. This enables images and videos to be stored, transferred, or projected on external screens.
Features
-
Complete stereo microscope set with trinocular head.
-
Integrated tablet camera (ODC 241) with 9.7" LCD touchscreen.
-
Continuous zoom range from 0.7x to 4.5x.
-
LED incident and transmitted illumination, dimmable.
-
Live viewing, image and video recording, measuring functions.
-
Includes holder, dust cover, and user instructions.
Applications
The OZL 464T241 is suitable for schools, workshops, and laboratories. It is used for training, education, quality control, electronics inspection, material testing, and assembly tasks. Typical samples include insects, seeds, circuit boards, mechanical parts, and other three dimensional objects.
Technical Data
-
Optical system: Greenough.
-
Tube type: Trinocular.
-
Ocular magnifications: 10x.
-
Ocular visual field: 20 mm.
-
Magnification ratio: 6.4:1.
-
Zoom range: 0.7x to 4.5x.
-
Illumination: LED transmitted 3 W, LED incident 3 W.
-
Focusing mechanism: Coarse drive.
-
Display type: LCD touch.
-
Display size: 9.7".
-
Display resolution: 2048×1536.
-
Processor: Quad Core Cortex-A17, 1.8 GHz.
-
Camera sensor: Sony CMOS, 1/2.8".
-
Camera resolution: 5 MP.
-
Camera framerate: 30 fps.
-
Interfaces: WiFi, USB 2.0, HDMI, MicroSD card slot.
-
C-mount magnification: 0.5x.
-
Working distance: 105 mm.
-
Maximum sample height: 140 mm.
-
Stand type: Pillar.
-
Dimensions (W×D×H): 300×240×640 mm.
