KERN Digital Microscope Set - OZL 466C825 - Objectives 0,7x,-4,5x - Illumination (transmitted) LED - USB 2.0

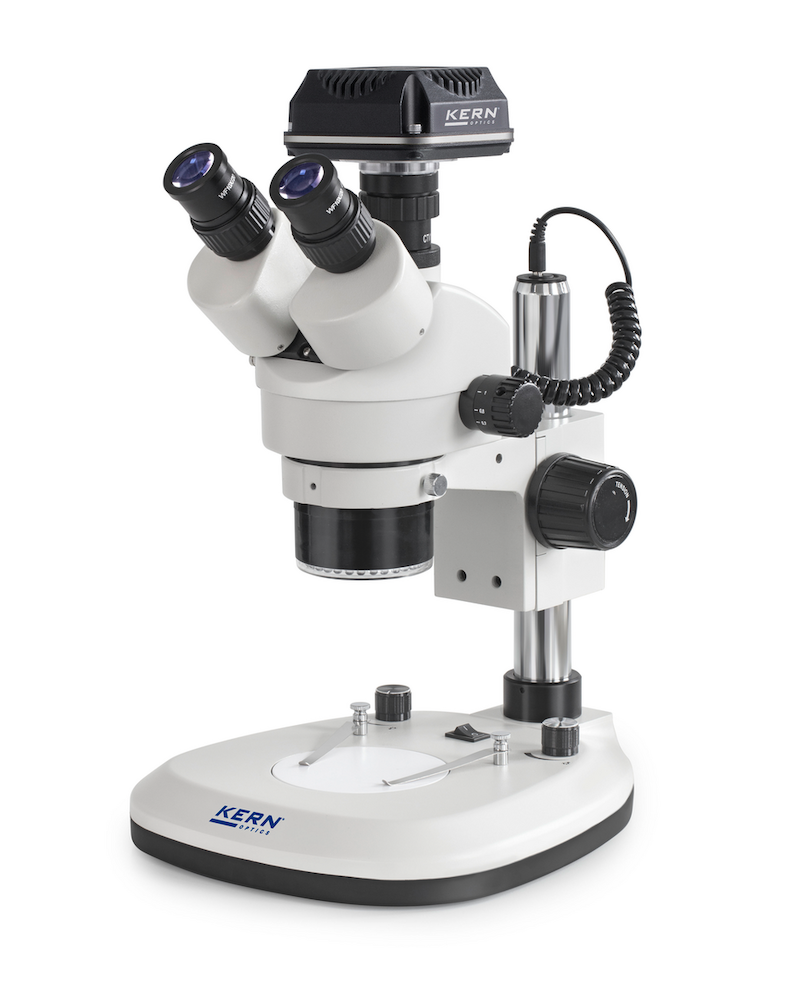

KERN OZL 466C825
The OZL 466C825 is a stereo microscope set from the OZL-46 series, combined with a high quality C-mount camera for digital observation. The package includes a trinocular microscope head, an integrated LED ring light, a pillar stand, a holder, and a dust cover. The correct C-mount adapter is supplied so the camera can be mounted directly.
The OZL 466 features both incident and transmitted LED illumination. The integrated dimmable LED ring light in the objective housing produces bright and shadow free images, while transmitted light can be switched on when needed. The zoom objective provides continuous magnification from 0.7x to 4.5x, covering a working range of 7x to 45x total magnification. With clear, sharp, and colour-true images, this model is well suited for schools, workshops, assembly stations, and routine inspection tasks.
The ODC 825 camera uses CMOS sensor technology with USB 2.0 connectivity. It produces stable images with good colour depth and supports frame rates between 6.8 and 55 fps. This makes it suitable for standard live imaging and documentation, as well as for more demanding applications such as darkfield, phase contrast, and fluorescence. The power supply is handled directly through the USB cable, meaning no external power supply is required.
Included with the camera is the KERN Microscope VIS Basic software, which enables image and video capture, measurement tools, and documentation functions. Accessories supplied with the camera include a USB cable, various eyepiece adapters, and an object micrometer for software calibration.
Features
-
Stereo microscope with trinocular head.
-
Integrated dimmable LED ring illumination.
-
Continuous zoom range from 0.7x to 4.5x.
-
ODC 825 CMOS camera with USB 2.0.
-
Includes C-mount adapter, eyepiece adapters, and software.
-
Delivered with holder, dust cover, and user instructions.
Applications
The OZL 466C825 is suitable for training, quality control, assembly, electronics, and education. It is widely used for three dimensional samples such as insects, seeds, circuit boards, mechanical parts, and other objects that need detailed inspection.
Technical Data
-
Optical system: Greenough.
-
Tube type: Trinocular.
-
Ocular magnifications: 10x.
-
Ocular visual field: 20 mm.
-
Magnification ratio: 6.4:1.
-
Zoom range: 0.7x to 4.5x.
-
Illumination: LED transmitted 3 W, LED incident 3 W.
-
Focusing mechanism: Coarse drive.
-
Camera sensor: CMOS.
-
Camera sensor size: 1/2.5".
-
Camera resolution: 5.1 MP.
-
Camera frame rate: 6.8 – 55 fps.
-
Interfaces: USB 2.0.
-
Working distance: 105 mm.
-
Maximum sample height: 140 mm.
-
Stand type: Pillar.
-
Dimensions (W×D×H): 300×240×490 mm.
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
