KERN Digital Microscope Set - OZL 466T241 - Objectives 0,7x,-4,5x - Illumination (transmitted) LED - USB 2.0, Wifi, HDMI, MicroSD card slot
KERN OZL 466T241

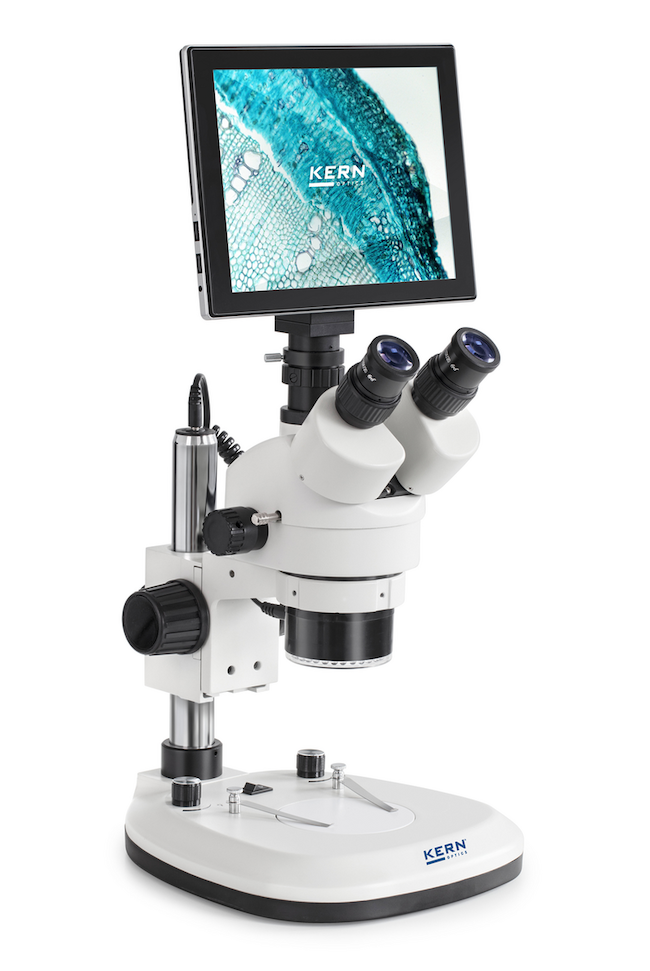

The OZL 466T241 is a stereo zoom microscope set from the OZL-46 series combined with an integrated tablet camera. It includes a trinocular microscope head, LED ring illumination, a pillar stand, a holder, and a dust cover. A C-mount adapter is also included.
This model features strong LED illumination with both incident and transmitted light. The integrated ring light in the objective housing provides uniform, shadow free illumination. The zoom objective covers 0.7x to 4.5x, offering a total magnification of 7x to 45x. With its solid build and wide working surface, it is well suited for training, workshops, and repair stations.
The ODC 241 tablet camera has a 9.7" LCD touchscreen with 5 MP resolution. It supports live viewing, image and video recording, and simple measurement functions. Users can measure distances, areas, and angles directly on the screen, as well as count objects. Data can be stored on USB or MicroSD, and live images can be transferred to an external monitor via HDMI.
Features
-
Complete stereo microscope set with trinocular head.
-
Integrated LED ring illumination with dimmable light.
-
Zoom range 0.7x to 4.5x (magnification 7x to 45x).
-
Includes ODC 241 tablet camera with 9.7" touchscreen.
-
Live viewing, photo, and video capture functions.
-
Storage via USB or MicroSD, HDMI output for external display.
-
Supplied with holder, dust cover, and user instructions.
Applications
The OZL 466T241 is widely used in training, schools, workshops, electronics, and quality control. It is suited for three dimensional samples such as insects, seeds, circuit boards, and mechanical parts.
Technical Data
-
Optical system: Greenough.
-
Tube type: Trinocular.
-
Ocular magnifications: 10x.
-
Ocular visual field: 20 mm.
-
Magnification ratio: 6.4:1.
-
Zoom range: 0.7x to 4.5x.
-
Illumination: LED transmitted 3 W, LED incident 3 W.
-
Focusing mechanism: Coarse drive.
-
Display type: LCD touch.
-
Display size: 9.7".
-
Display resolution: 2048×1536.
-
Processor: Quad Core Cortex A17, 1.8 GHz.
-
Camera sensor: Sony CMOS, 1/2.8".
-
Camera resolution: 5 MP.
-
Interfaces: WiFi, USB 2.0, HDMI, MicroSD slot.
-
C-mount magnification: 0.5x.
-
Working distance: 105 mm.
-
Maximum sample height: 140 mm.
-
Stand type: Pillar.
-
Dimensions (W×D×H): 300×240×640 mm.
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
