KERN Digital Microscope Set - OZM 544C832 - Objectives 0,7x,-4,5x - Illumination (transmitted) LED - USB 3.0
KERN OZM 544C832

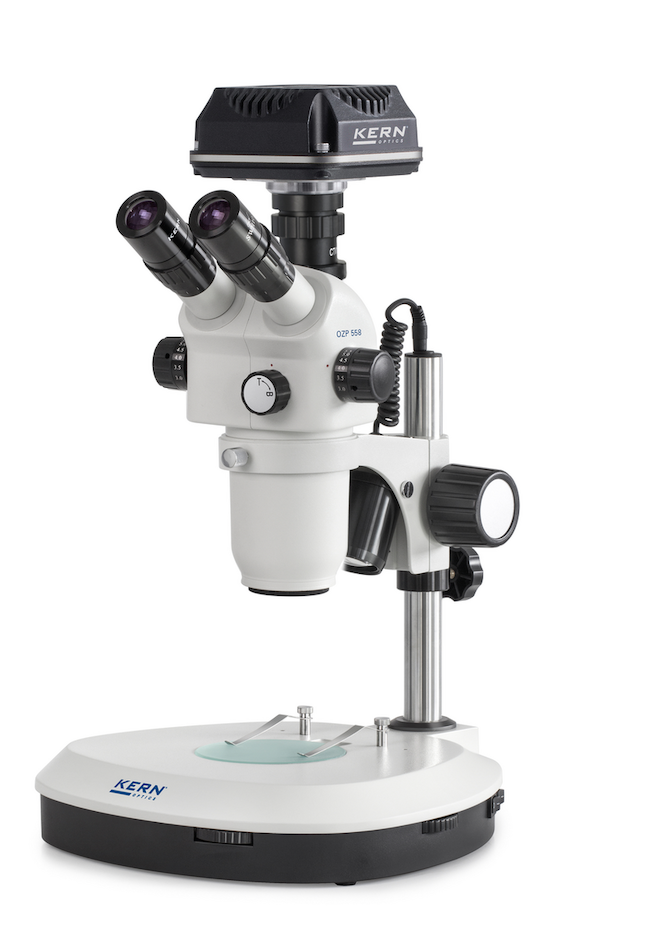

The OZM 544C832 is a stereo zoom microscope set with an integrated C-mount camera, providing both optical and digital observation in one system. It combines the proven OZM 544 microscope with the ODC 832 camera, creating a flexible setup for inspection, documentation, and analysis.
The microscope is built on the OZM-5 series, known for strong optics, ergonomic handling, and stable design. The trinocular head with 10x eyepieces offers a wide 23 mm field of view, while the Greenough optical system ensures sharp, colour-true images with high contrast. The zoom objective provides a continuous magnification range from 0.7x to 4.5x, covering 7x to 45x total magnification.
Illumination is handled by two integrated 3 W LED units for both transmitted and incident light. The lighting is continuously dimmable, giving precise control for different sample types. With a working distance of 110 mm and a maximum sample height of 130 mm, the OZM 544C832 allows comfortable observation of both small and larger samples.
The ODC 832 camera is equipped with a CMOS sensor delivering 5.1 MP resolution. It connects via USB 3.0, ensuring fast image transfer and smooth live viewing. With frame rates from 14.2 fps up to 101.2 fps, it is well suited even for demanding applications such as darkfield, phase contrast, and fluorescence. The camera is powered directly through the USB connection and comes with KERN Microscope VIS Basic software, a calibration micrometer, adapters, and a 2 m USB cable.
Features
-
Stereo zoom microscope set with trinocular head and camera.
-
Magnification range 7x – 45x, zoom 0.7x – 4.5x.
-
Wide 23 mm field of view with 10x eyepieces.
-
Greenough optical system for sharp and contrast-rich images.
-
Strong 3 W LED transmitted and incident illumination, dimmable.
-
ODC 832 CMOS camera with 5.1 MP resolution.
-
Frame rate from 14.2 fps up to 101.2 fps.
-
USB 3.0 interface for fast data transfer and power supply.
-
Supplied with VIS Basic software, calibration micrometer, adapters, and USB cable.
-
Pillar stand for flexible and stable positioning.
Applications
The OZM 544C832 is used in quality control, research, and training. It is suitable for electronics, biology, and material inspection where both direct viewing and digital documentation are needed. Typical applications include observing insects, seeds, circuit boards, mechanical components, and prepared specimens.
Technical Data
-
Optical system: Greenough.
-
Tube type: Trinocular.
-
Ocular magnifications: 10x.
-
Ocular visual field: 23 mm.
-
Magnification ratio: 6.4:1.
-
Zoom range: 0.7x – 4.5x.
-
Illumination: Reflected and transmitted light, LED 3 W each.
-
Focusing mechanism: Coarse drive.
-
Camera: CMOS, 5.1 MP, 1/2.5", colour, 14.2 – 101.2 fps.
-
Interfaces: USB 3.0.
-
Working distance: 110 mm.
-
Maximum sample height: 130 mm.
-
Stand type: Pillar.
-
Dimensions (W×D×H): 330 × 285 × 510 mm.
