KERN Digital Microscope Set - OZP 558T241 - Objectives 0,6x,-5,5x - Illumination (transmitted) LED - USB 2.0, Wifi, HDMI, MicroSD card slot
KERN OZP 558T241

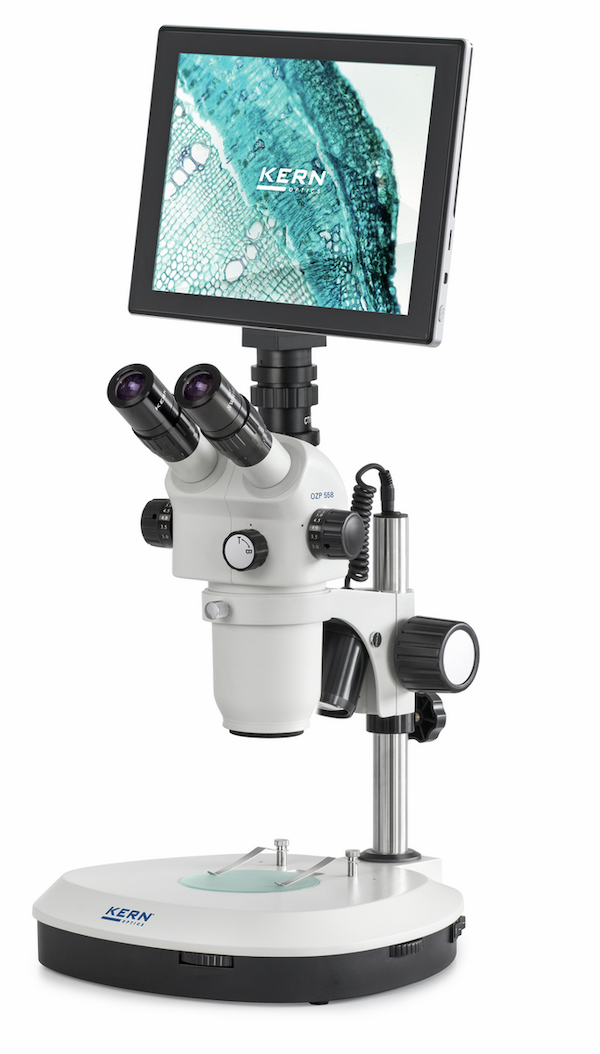

The KERN OZP 558T241 is a stereo zoom microscope supplied as a digital set with a mounted tablet camera. It combines the KERN OZP 558 stereo microscope with the KERN ODC 241 tablet camera, giving both optical viewing and digital imaging in one solution. This makes it practical for training, education, demonstrations, and laboratory documentation.
The microscope is based on the OZP 558 model. It has a trinocular head, 10x eyepieces with a 23 mm field of view, and a Greenough optical system that delivers sharp and high contrast images. With a zoom range from 0.6x to 5.5x, it provides a total magnification of 6x to 55x. LED reflected and transmitted illumination (3 W each) ensures bright and even lighting of different sample types. The pillar stand with sturdy adjustment allows flexible positioning and stable working.
The mounted ODC 241 tablet camera is equipped with a 9.7 inch LCD touchscreen, 5 MP Sony CMOS sensor, and Quad Core processor. It supports live viewing, image and video capture, and simple measuring functions such as distance, area, angle, and manual counting. Automatic white balance and contrast help improve workflow. Data can be saved on USB sticks or SD cards, and the live image can be transferred to external monitors via HDMI. WiFi and USB 2.0 interfaces are included.
Features
-
Complete digital microscope set with OZP 558 stereo microscope and ODC 241 tablet camera.
-
Trinocular head with 10x eyepieces and 23 mm field of view.
-
Zoom range 0.6x – 5.5x, total magnification 6x – 55x.
-
LED reflected and transmitted light, 3 W each.
-
9.7" LCD touchscreen, resolution 2048 × 1536.
-
5 MP Sony CMOS camera with 30 fps frame rate.
-
Measuring functions: distance, area, angle, manual counting.
-
Interfaces: WiFi, USB 2.0, HDMI, MicroSD card slot.
-
Pillar stand for flexible and stable positioning.
-
Supplied with C-mount adapter, holder, dust cover, and user instructions.
Applications
The OZP 558T241 is used in schools, universities, and laboratories for teaching, research, and documentation. It is also applied in quality control, electronics, assembly, and repair work. Typical samples include insects, seeds, circuit boards, and small components requiring both optical inspection and digital recording.
Technical Data
-
Optical system: Greenough.
-
Tube type: Trinocular.
-
Ocular magnifications: 10x.
-
Ocular visual field: 23 mm.
-
Magnification ratio: 9.2:1.
-
Zoom range: 0.6x – 5.5x.
-
Illumination: Reflected and transmitted light, LED 3 W each.
-
Focusing mechanism: Coarse drive.
-
Display: 9.7" LCD touchscreen, 2048 × 1536 resolution.
-
Camera: 5 MP Sony CMOS, 30 fps.
-
Processor: Quad Core Cortex-A17, 1.8 GHz.
-
Interfaces: WiFi, USB 2.0, HDMI, MicroSD slot.
-
C-Mount magnification: 0.5x.
-
Working distance: 108 mm.
-
Maximum sample height: 110 mm.
-
Stand type: Pillar.
-
Dimensions (W×D×H): 330 × 285 × 690 mm.
