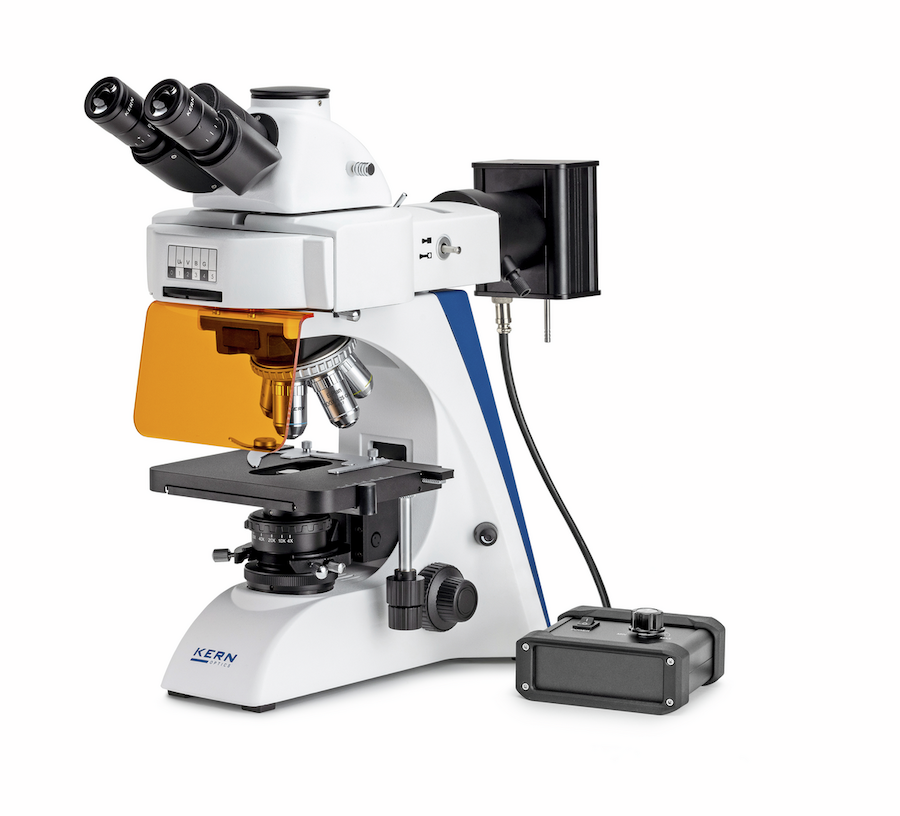

KERN OBN 141
The OBN 141 is a fluorescence microscope from the OBN-14 series. It combines a stable build with high quality optics, making it reliable for advanced fluorescence applications.
It uses a 3 W LED for transmitted light and a 5 W LED epi fluorescence unit for incident light. The Koehler illumination system has an adjustable field diaphragm and a 1.25 Abbe condenser that can be centred and adjusted with an aperture diaphragm for precise light control.
The large mechanical stage moves smoothly and is easy to handle using coaxial coarse and fine focus knobs on both sides. A filter wheel with up to six slots is included and fitted with B and G fluorescence filters.
The modular system allows the microscope to be extended with accessories such as eyepieces, objectives, colour filters, darkfield condensers, a butterfly tube, polarising units, and phase contrast units.
The OBN 141 is supplied with a free OBB-A1515 camera adapter. This C-mount 0.5x adapter with adjustable focus connects a microscope camera to the trinocular tube for easy image capture. A centring objective for fluorescence adjustment, dust cover, eye cups, and multilingual instructions are also included.
Features
-
3 W LED transmitted light and 5 W LED epi fluorescence illumination.
-
Koehler illumination with field diaphragm and 1.25 Abbe condenser (centring and adjustable).
-
Large mechanical stage with smooth coaxial drive.
-
Coarse and fine focus knobs on both sides.
-
Filter wheel fitted with B and G fluorescence filters.
-
Modular system for accessories: eyepieces, objectives, colour filters, darkfield, polarisation, phase contrast.
-
Free OBB-A1515 camera adapter for microscope cameras.
-
Supplied with centring objective, dust cover, eye cups, and instructions.
Applications
The OBN 141 is used in haematology, urology, gynaecology, dermatology, pathology, microbiology and parasitology, immunology, sewage treatment, oncology, entomology, veterinary practices, water analysis, and breweries.
It is specially suited for translucent, thin, low-contrast, and challenging samples such as immunofluorescence, FISH, and DAPI staining.
Technical Data
-
Optical system: Infinity.
-
Tube type: Trinocular.
-
Ocular magnification: 10x.
-
Ocular visual field: 20 mm.
-
Standard objectives: 4×, 10×, 20×, 40×, 100×.
-
Lens quality: Infinity Plan.
-
Nosepiece positions: 5.
-
Illuminance: Reflected and transmitted light.
-
Illumination type transmitted: LED, 3 W.
-
Illumination type incident: LED, 5 W.
-
Fluorescent unit: Blue, Green (LED).
-
Condenser: Abbe, 1.25, centreable.
-
Focusing: Coaxial coarse and fine drive.
-
Fine focus step: 0.002 mm.
-
Size (W×D×H): 510 × 470 × 515 mm.
Free Included Accessory - OBB-A1515 Camera Adapter
-
Adapter type: C-Mount.
-
Magnification: 0.5x.
-
Focusable: Yes.
-
Supported camera types: Microscope cameras.
-
Net weight: approx. 0.30 kg.
