KERN OBN 147

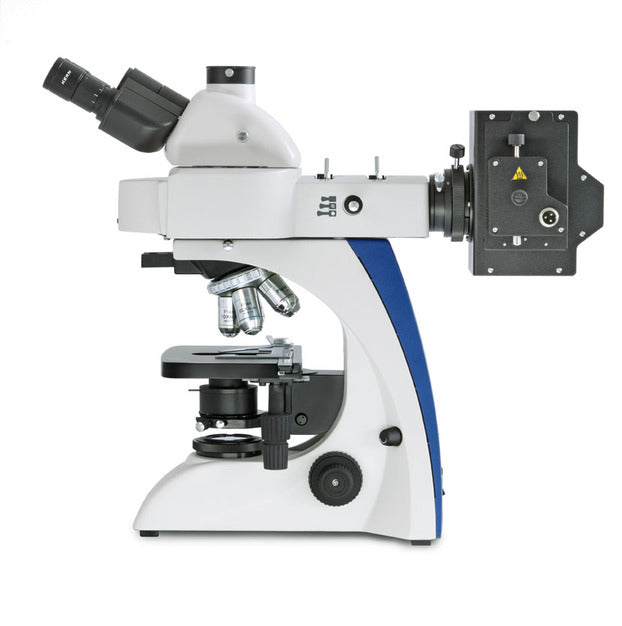

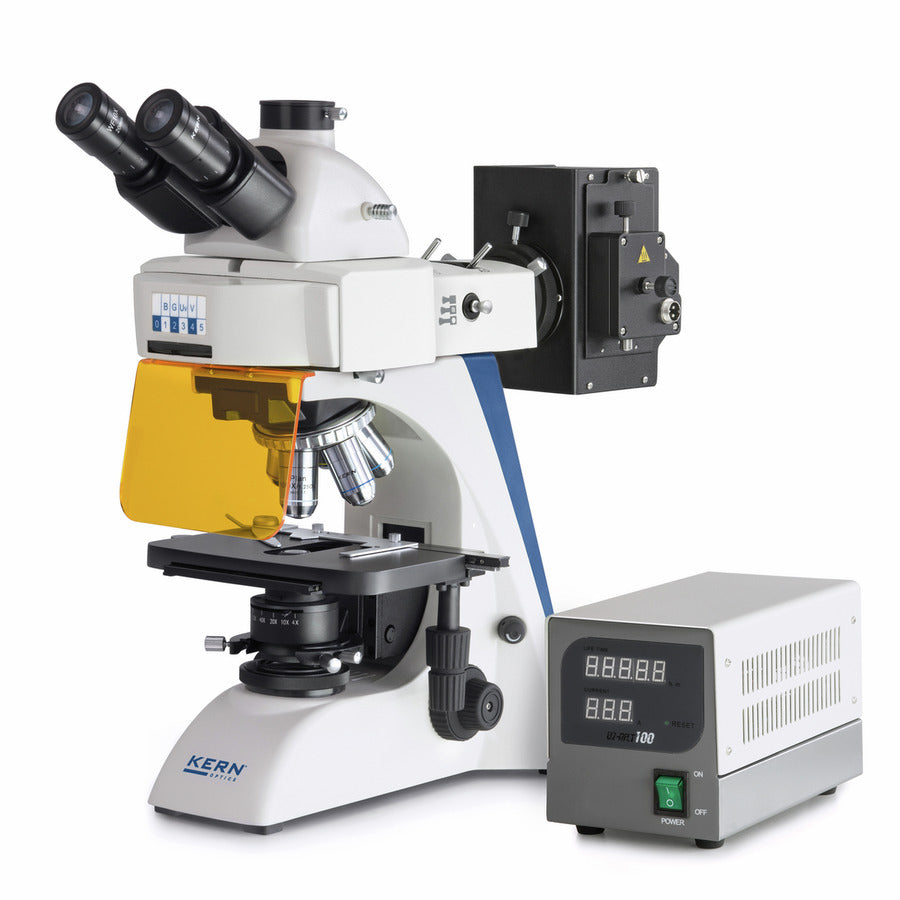

The OBN 147 is a fluorescence microscope from the OBN-14 series. It combines a stable frame with high quality optics, making it reliable for demanding fluorescence applications.
It is equipped with a 20 W Philips halogen lamp for transmitted light and a 100 W HBO epi fluorescence unit for incident light. This setup delivers bright illumination and strong stimulation of fluorescence samples. The Koehler illumination system has an adjustable field diaphragm, along with a height adjustable 1.25 Abbe condenser that can be centred and has an adjustable aperture diaphragm.
The large mechanical stage moves smoothly and is controlled by coaxial coarse and fine focus knobs on both sides, making it easy to bring samples into sharp focus. A filter wheel with up to six slots is included, fitted with B and G fluorescence filters.
Thanks to its modular design, the microscope can be expanded with accessories such as eyepieces, objectives, colour filters, darkfield condensers, a butterfly tube, polarising units, and phase contrast units.
The OBN 147 is supplied with a free OBB-A1515 camera adapter. This C-mount 0.5x adapter with adjustable focus lets you connect a microscope camera to the trinocular tube for image capture and documentation. Delivery also includes a centring objective for fluorescence adjustment, dust cover, eye cups, and multilingual instructions.
Features
-
20 W Philips halogen lamp for transmitted light.
-
100 W HBO epi fluorescence unit for incident light.
-

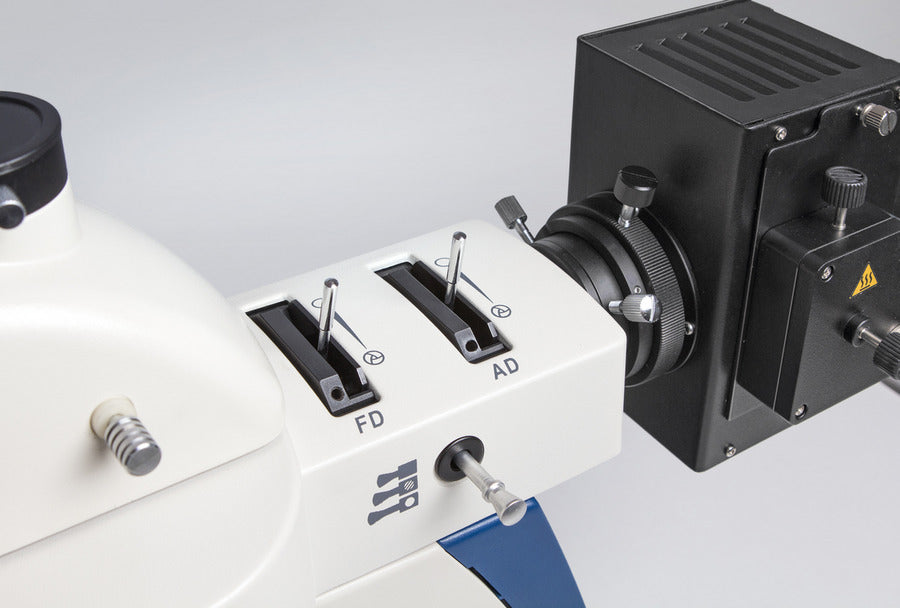

Koehler illumination with field diaphragm and 1.25 Abbe condenser (adjustable and centring).
-
Large mechanical stage with smooth coaxial drive.
-
Coarse and fine focus knobs on both sides.
-

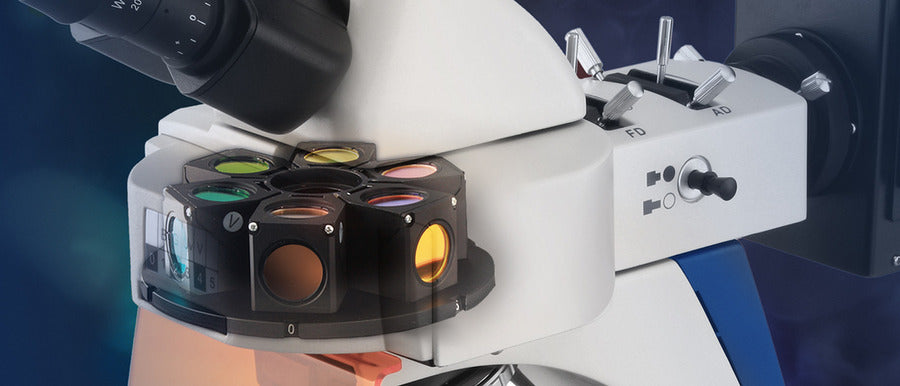

Filter wheel fitted with B and G fluorescence filters.
-
Modular system for accessories: eyepieces, objectives, colour filters, darkfield, polarisation, phase contrast.
-
Free OBB-A1515 camera adapter for microscope cameras.
-
Supplied with centring objective, dust cover, eye cups, and instructions.
Applications
The OBN 147 is used in haematology, pathology, microbiology, immunology, oncology, urology, gynaecology, dermatology, entomology, veterinary practices, sewage treatment plants, and water analysis. It is designed for demanding fluorescence applications and is well suited for samples such as immunofluorescence, FISH, and DAPI staining.
Technical Data
-
Optical system: Infinity.
-
Tube type: Trinocular.
-
Ocular magnification: 10x.
-
Ocular visual field: 20 mm.
-
Standard objectives: 4×, 10×, 20×, 40×, 100×.
-
Lens quality: Infinity Plan.
-
Nosepiece positions: 5.
-
Illuminance: Reflected and transmitted light.
-
Illumination type transmitted: Halogen, 20 W.
-
Illumination type incident: HBO, 100 W.
-
Fluorescent unit: Blue, Green (HBO).
-
Focusing: Coaxial coarse and fine drive.
-
Fine focus step: 0.002 mm.
-
Size (W×D×H): 530 × 220 × 490 mm.
Free Included Accessory – OBB-A1515 Camera Adapter
-
Adapter type: C-Mount.
-
Magnification: 0.5x.
-
Focusable: Yes.
-
Supported camera types: Microscope cameras.
-
Net weight: approx. 0.30 kg.
