KERN Fluorescence Microscope - OBN 148 - Trinocular - Illumination (transmitted) Halogen - Objectives 4x,10x,20x,40x,100x + FREE C-mount adapter
KERN OBN 148

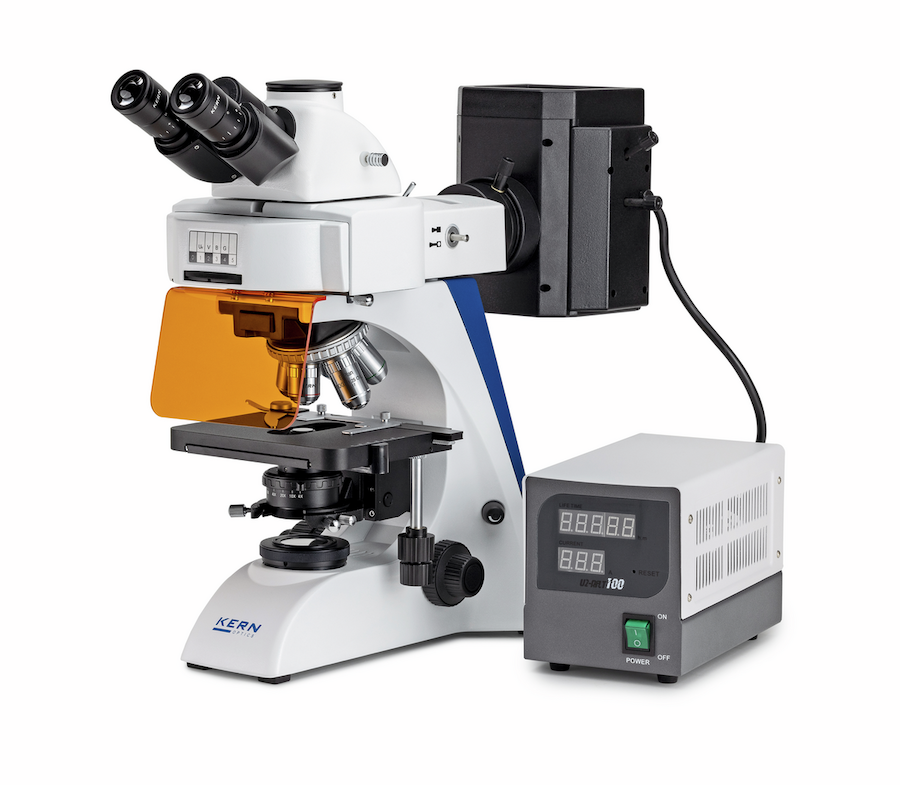

The OBN 148 is a fluorescence microscope from the OBN-14 series. It combines a stable build with high quality optics, making it a strong choice for fluorescence microscopy in this class.
The microscope is equipped with a 20 W halogen lamp from Philips for transmitted light and a 100 W HBO epi fluorescence unit for incident light. Together they provide bright and powerful illumination for fluorescence samples. The professional Koehler system includes a height adjustable 1.25 Abbe condenser with centring and an adjustable aperture diaphragm, as well as an adjustable field diaphragm for precise light control.
The large mechanical stage moves smoothly and is easy to control with coaxial coarse and fine knobs on both sides, allowing quick and accurate focusing. A filter wheel with up to 6 positions is fitted as standard and includes B, G, UV, and V fluorescence filters.
The modular design allows easy expansion with accessories such as eyepieces, objectives, colour filters, darkfield condensers, a butterfly tube, polarising units, and phase contrast units.
The OBN 148 is supplied with a free OBB-A1515 camera adapter. This C-mount 0.5x adapter with adjustable focus lets you connect a microscope camera to the trinocular tube for image capture and documentation. Delivery also includes a centring objective for fluorescence adjustment, dust cover, eye cups, and multilingual instructions.
Features
-
20 W Philips halogen lamp for transmitted light.
-
100 W HBO epi fluorescence illumination.
-
Koehler illumination with field diaphragm and adjustable 1.25 Abbe condenser.
-
Large mechanical stage with smooth coaxial drive.
-
Coarse and fine focus knobs on both sides.
-
Filter wheel with B, G, UV, V fluorescence filters.
-
Modular design for accessories: eyepieces, objectives, colour filters, darkfield, polarisation, phase contrast.
-
Free OBB-A1515 camera adapter for microscope cameras.
-
Supplied with centring objective, dust cover, eye cups, and instructions.
Applications
The OBN 148 is used in many fields, including haematology, pathology, microbiology, immunology, oncology, urology, gynaecology, dermatology, entomology, veterinary work, sewage treatment, water analysis, and breweries. It is designed for demanding fluorescence applications and is suited for samples such as immunofluorescence, FISH, and DAPI staining.
Technical Data
-
Optical system: Infinity.
-
Tube type: Trinocular.
-
Ocular magnification: 10x.
-
Ocular visual field: 20 mm.
-
Standard objectives: 4×, 10×, 20×, 40×, 100×.
-
Lens quality: Infinity Plan.
-
Nosepiece positions: 5.
-
Illuminance: Reflected and transmitted light.
-
Illumination type transmitted: Halogen, 20 W.
-
Illumination type incident: HBO, 100 W.
-
Fluorescent unit: Ultraviolet, Violet, Blue, Green (HBO).
-
Focusing: Coaxial coarse and fine drive.
-
Fine focus step: 0.002 mm.
-
Size (W×D×H): 530 × 220 × 490 mm.

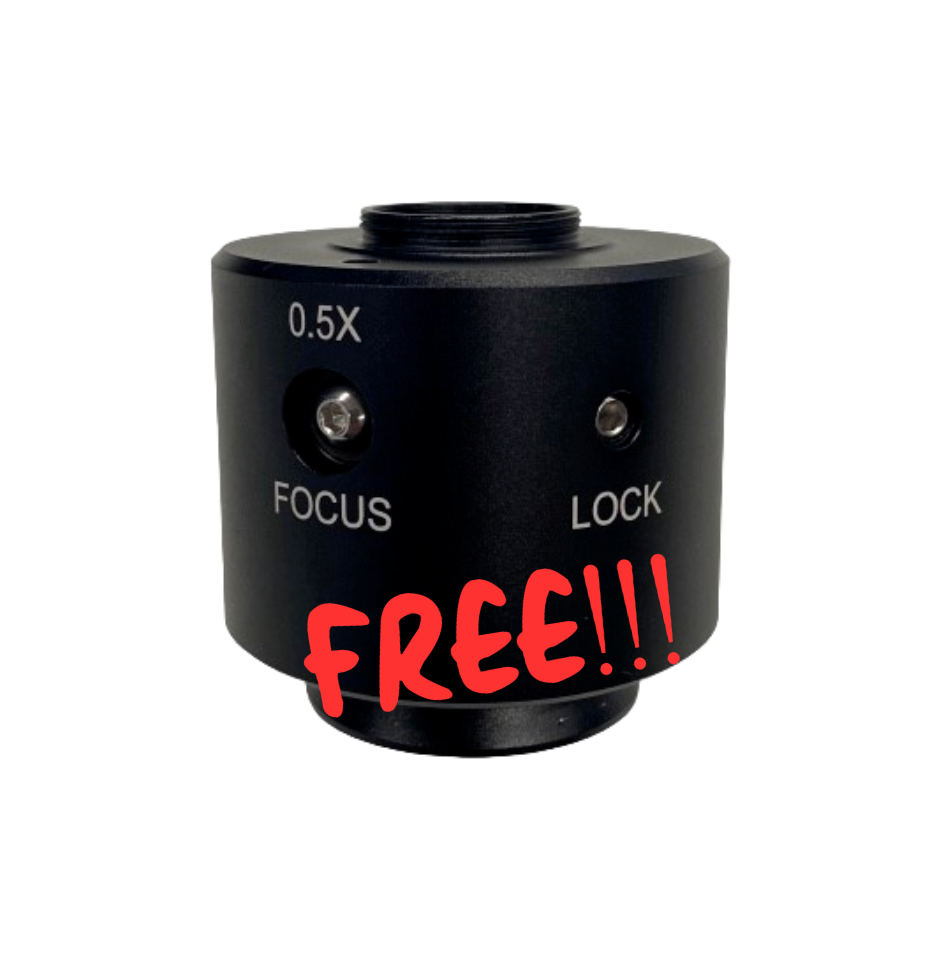

Free Included Accessory - OBB-A1515 Camera Adapter
-
Adapter type: C-Mount.
-
Magnification: 0.5x.
-
Focusable: Yes.
-
Supported camera types: Microscope cameras.
-
Net weight: approx. 0.30 kg.
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
