KERN OCM 167

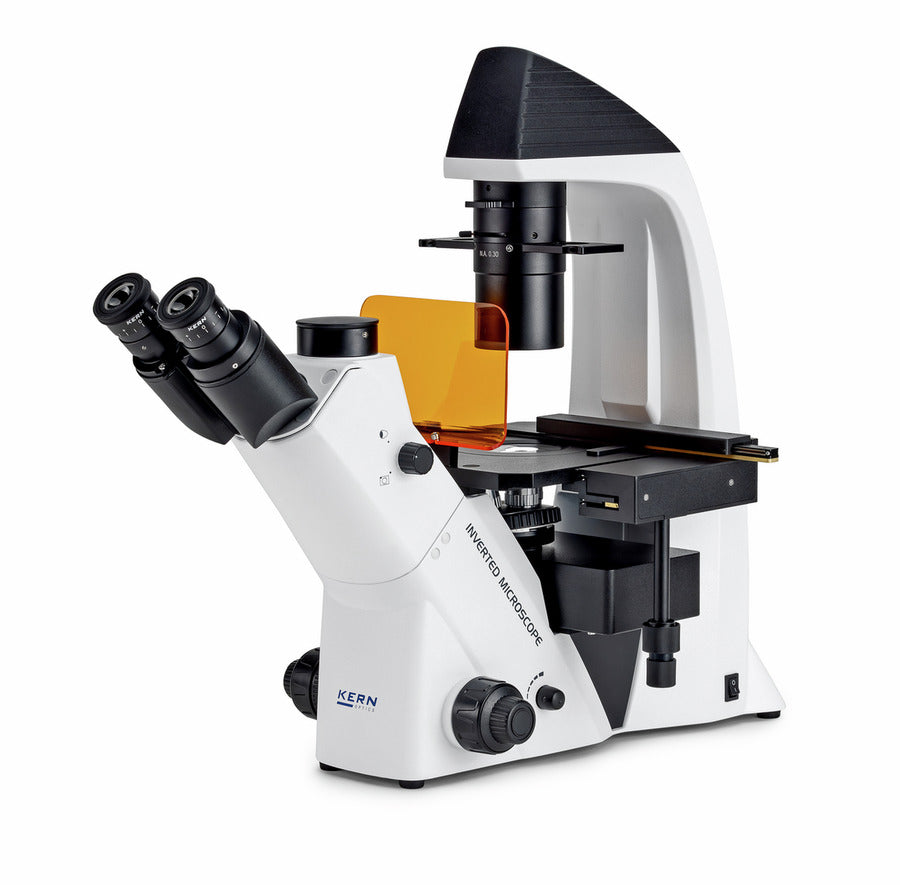

The OCM 167 is an inverted microscope with a stable design and a large working distance. This makes it especially useful for monitoring and analysing cell cultures.
It has a 5 W LED for bright field illumination. For fluorescence work, an Osram 5 W LED epi fluorescence unit is included, giving strong and clear light to stimulate fluorescence samples. The Abbe condenser with 0.3 aperture and 72 mm working distance helps direct the light well, both in bright field and fluorescence use.
A trinocular eyepiece tube is fitted as standard. The mechanical stage comes with a 110 mm specimen holder and lets you move samples quickly and smoothly. Extra brackets for petri dishes are supplied or can be added as accessories. Other accessories such as eyepieces, objectives, specimen holders, and phase contrast units are also available.
The microscope is delivered with a free OBB-A1515 camera adapter. This C-mount 0.5x adapter has adjustable focus and is designed for trinocular models, allowing you to connect a microscope camera for image capture and documentation. A dust cover and user instructions are also included.
Features
-
Inverted microscope with large working distance.
-
5 W LED for bright field illumination.
-
Osram 5 W LED epi fluorescence unit.
-

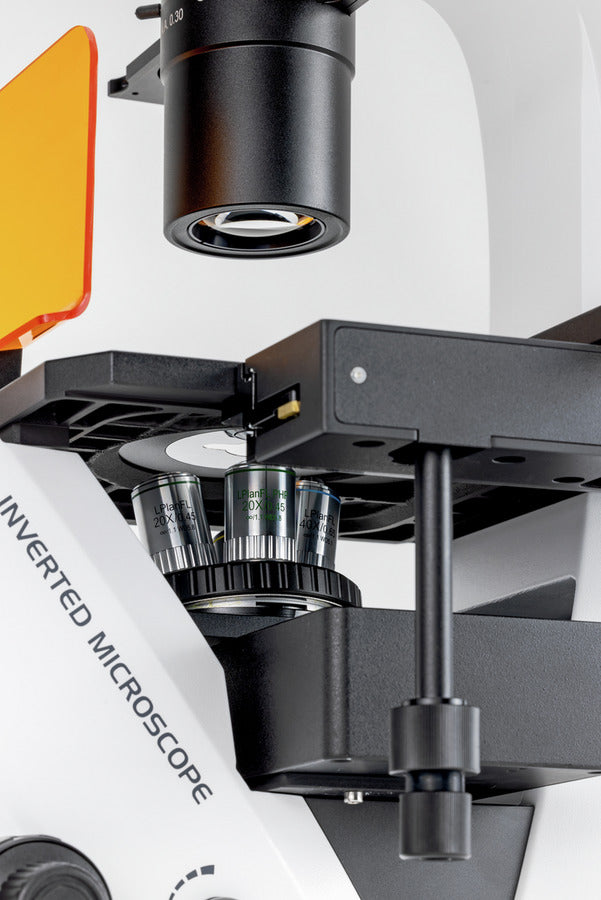

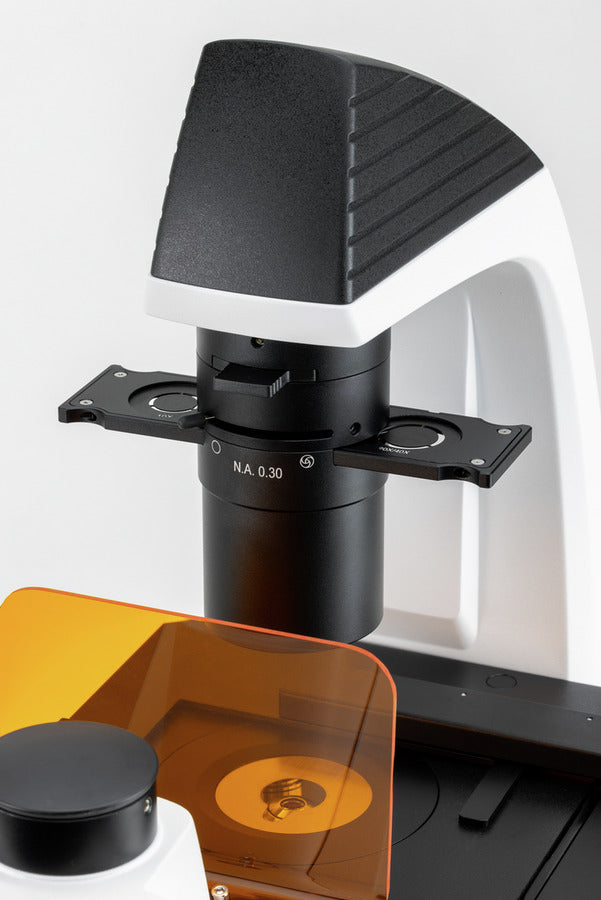

Abbe condenser with 0.3 aperture and 72 mm working distance.
-
Trinocular eyepiece tube.
-
Mechanical stage with 110 mm specimen holder.
-
Petri dish brackets included or available as accessories.
-
Free OBB-A1515 camera adapter for microscope cameras.
-
Accessories available: eyepieces, objectives, specimen holders, phase contrast units.
-
Supplied with dust cover and instructions.
Applications
The OCM 167 is used for research and breeding of cell and tissue cultures. It is suited for samples in culture vessels such as flasks, petri dishes, and microtitre plates. It can also be used for translucent or thin samples such as living cells, tissue, and microorganisms, and for fluorescence methods like immunofluorescence, FISH, and DAPI staining.
Technical Data
-
Optical system: Infinity.
-
Tube type: Trinocular.
-
Ocular magnification: 10x.
-
Ocular visual field: 22 mm.
-

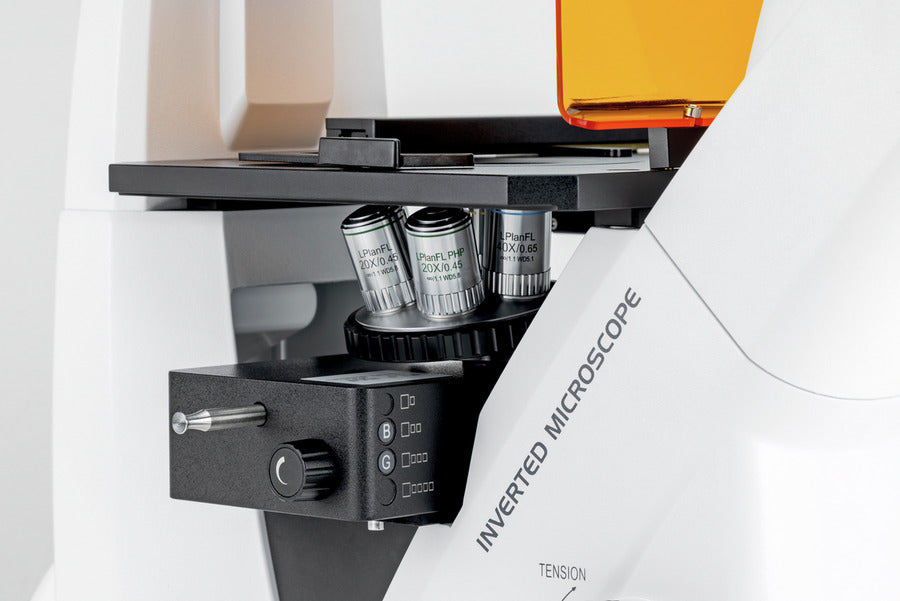

Standard objectives: 10×, 20×, 40×, PH 20×.
-
Lens quality: Infinity Plan.
-
Nosepiece positions: 5.
-
Illuminance: Reflected and transmitted light.
-
Illumination type: LED, 5 W transmitted, 5 W incident.
-
Fluorescent unit: Blue, Green (LED).
-
Condenser: Abbe, 0.3, fixed.
-
Focusing: Coaxial coarse and fine drive.
-
Fine focus step: 0.002 mm.
-
Size (W×D×H): 782 × 304 × 530 mm.
Free Included Accessory - OBB-A1515 Camera Adapter
-
Adapter type: C-Mount.
-
Magnification: 0.5x.
-
Focusable: Yes.
-
Supported camera types: Microscope cameras.
