KERN Metallurgical Inverted Microscope - OLM 170 - Trinocular - Illumination (incident) LED - Objectives 5x,10x,20x,50x
KERN OLM 170

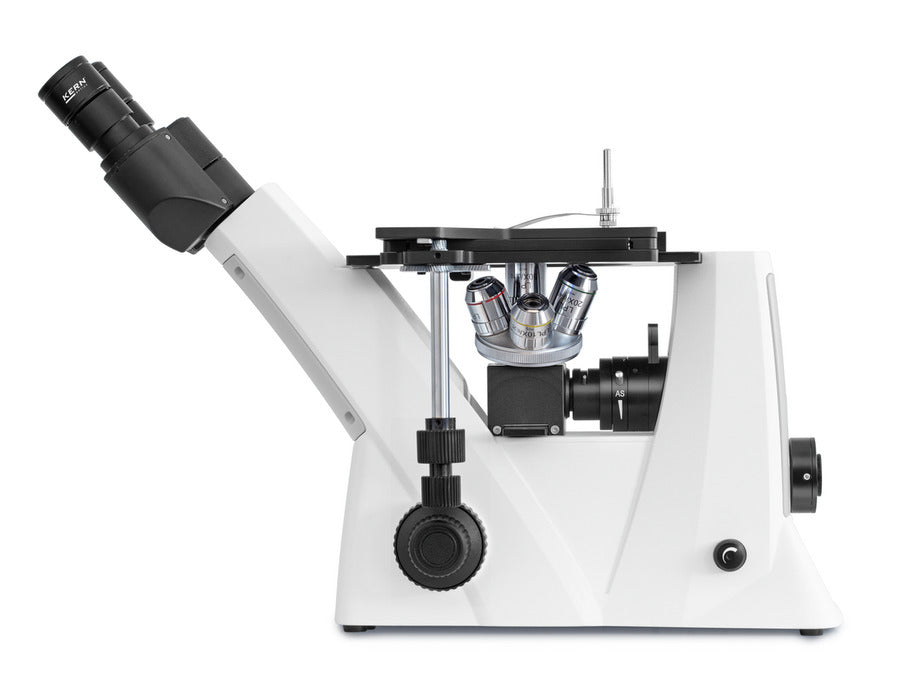

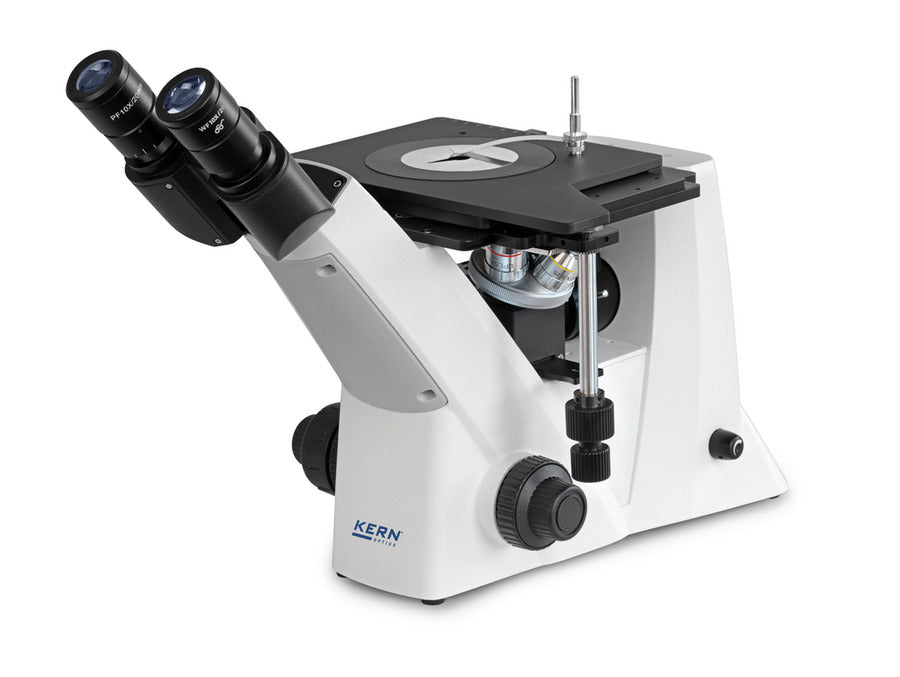

The OLM 170 is a compact inverted metallurgical microscope with a stable and ergonomic design. Its large working distance makes it ideal for testing the surface quality of raw materials and finished products in industry. The compact build also makes it easier to handle and suitable for mobile applications.
Illumination is provided by a 5 W LED, which is strong, long-lasting, and continuously adjustable. A trinocular eyepiece tube is fitted as standard. A simple polarising unit (analyser and polariser) is supplied, together with a large mechanical stage. Focusing is smooth and precise using coarse and fine knobs on both sides.

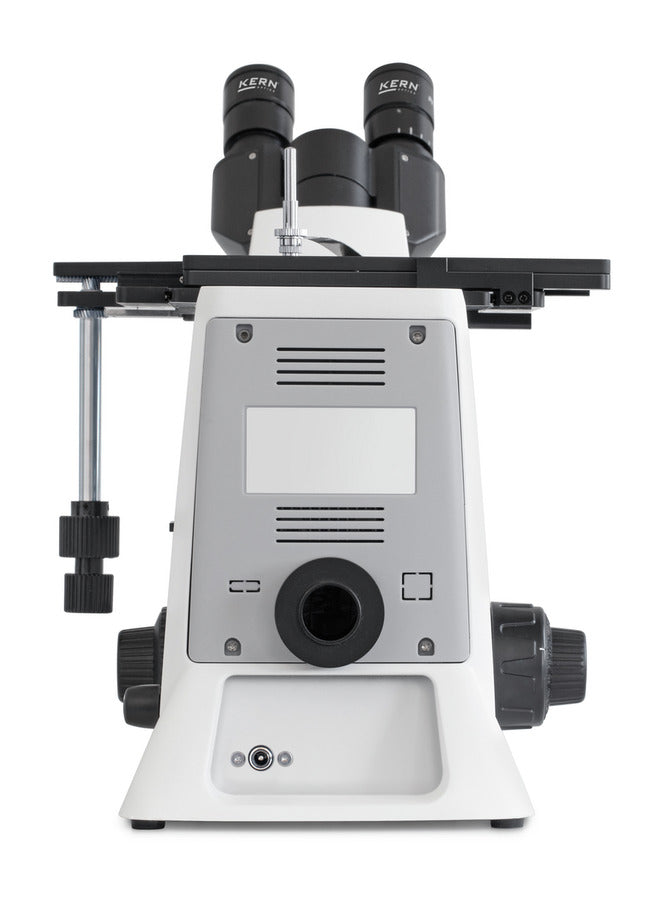

This model includes a pre-installed C-mount adapter on the back of the microscope, making it simple to connect a microscope camera without needing an external adapter. Additional objectives and accessories can also be added.
Delivery includes the built-in camera adapter, polarising unit, mechanical stage, dust cover, and user instructions.
Features
-
Compact inverted metallurgical microscope with large working distance.
-
5 W LED illumination with adjustable brightness.
-
Trinocular eyepiece tube included as standard.
-
Supplied with a simple polarising unit (analyser and polariser).
-
Large mechanical stage with smooth movement.
-
Coaxial coarse and fine focusing knobs on both sides.
-
Built-in C-mount adapter for microscope cameras.
-
Expandable with additional objectives and accessories.
-
Supplied with dust cover and instructions.
Applications
The OLM 170 is used in metallurgy, material testing, and quality assurance. It is designed for opaque and thick samples such as workpieces, surfaces, fold lines, and coatings. Its compact design makes it practical for mobile use as well.
Technical Data
-
Optical system: Infinity.
-
Tube type: Trinocular.
-
Ocular magnification: 10x.
-
Ocular visual field: 20 mm.
-
Standard objectives: 5×, 10×, 20×, 50×.
-
Lens quality: Infinity Plan.
-
Nosepiece positions: 4.
-
Illuminance: Reflected light.
-
Illumination type incident: LED, 5 W.
-
Condenser: Standard, fixed.
-
Focusing: Coaxial coarse and fine drive.
-
Fine focus step: 0.002 mm.
-
Size (W×D×H): 470 × 240 × 330 mm.
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
