KERN Metallurgical Inverted Microscope - OLM 171 - Trinocular - Illumination (incident) Halogen - Objectives 5x,10x,20x,50x + FREE C-mount adapter
KERN OLM 171

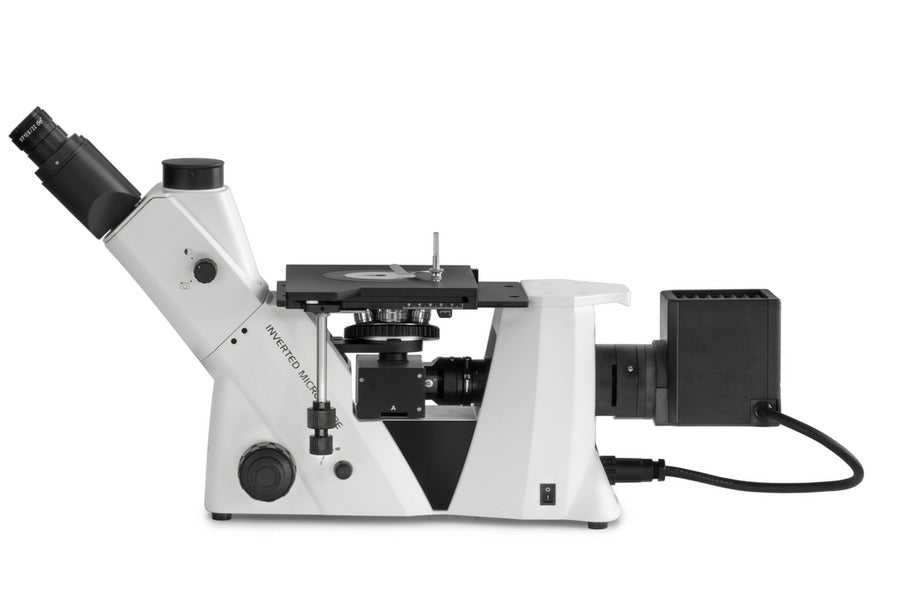

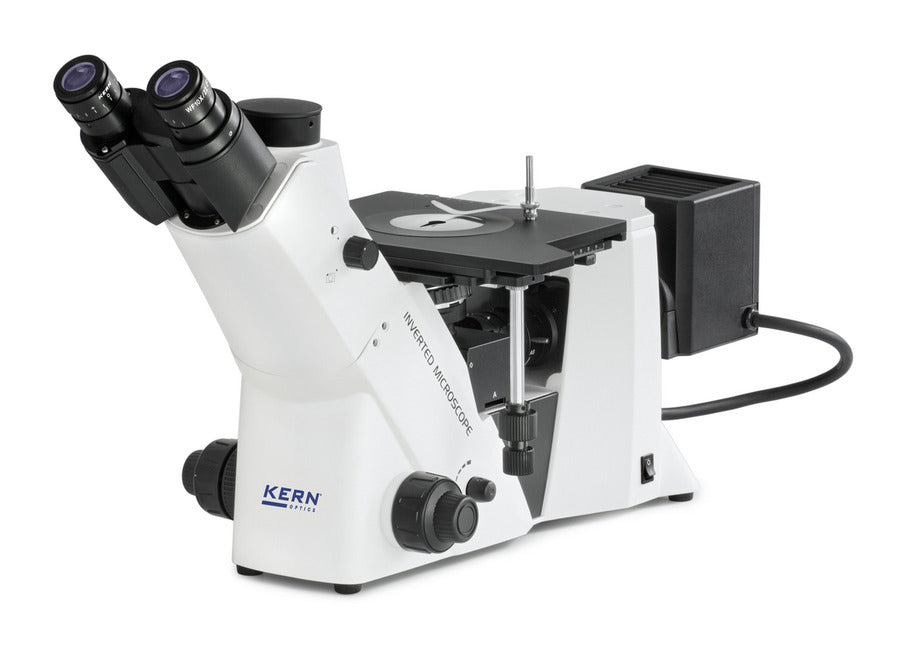

The KERN OLM 171 is an inverted metallurgical microscope with a stable and ergonomic design. Its large working distance makes it especially useful for testing the surface quality of raw materials and finished products in industry.
Illumination is provided by a strong 50 W halogen lamp, which can be adjusted continuously to give the best light for materials under inspection. A trinocular eyepiece tube is included as standard, allowing a camera connection if needed.

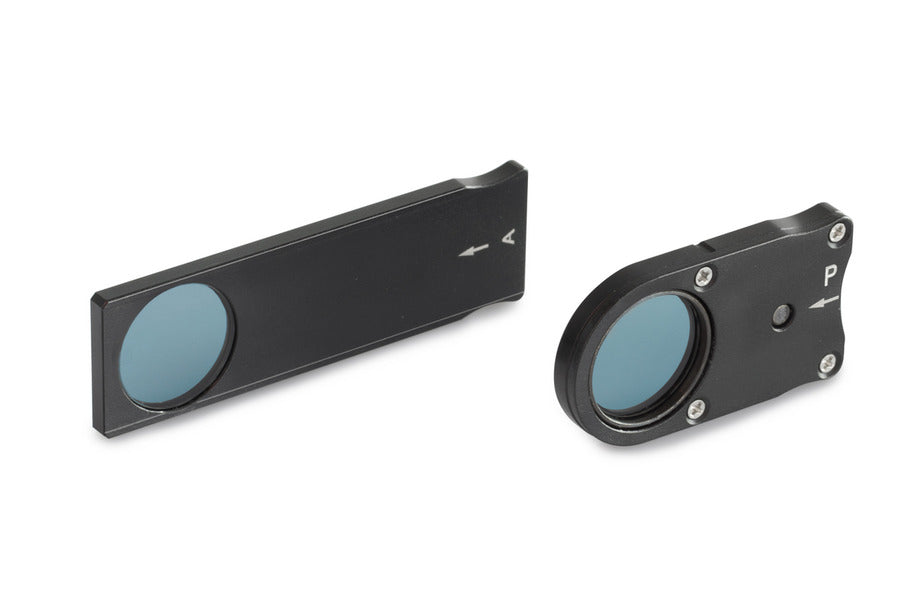

A simple polarising unit (analyser and polariser) is supplied, together with a large mechanical stage. Focusing is smooth and accurate using coaxial coarse and fine knobs on both sides. Additional objectives and other accessories can also be added.
The microscope is delivered with a free OBB-A1515 camera adapter. This C-mount 0.5x adapter with adjustable focus allows you to connect a microscope camera for image capture and documentation. A dust cover and user instructions are also included.
Features
-
Stable inverted metallurgical microscope with large working distance.
-
50 W halogen illumination with adjustable brightness.
-

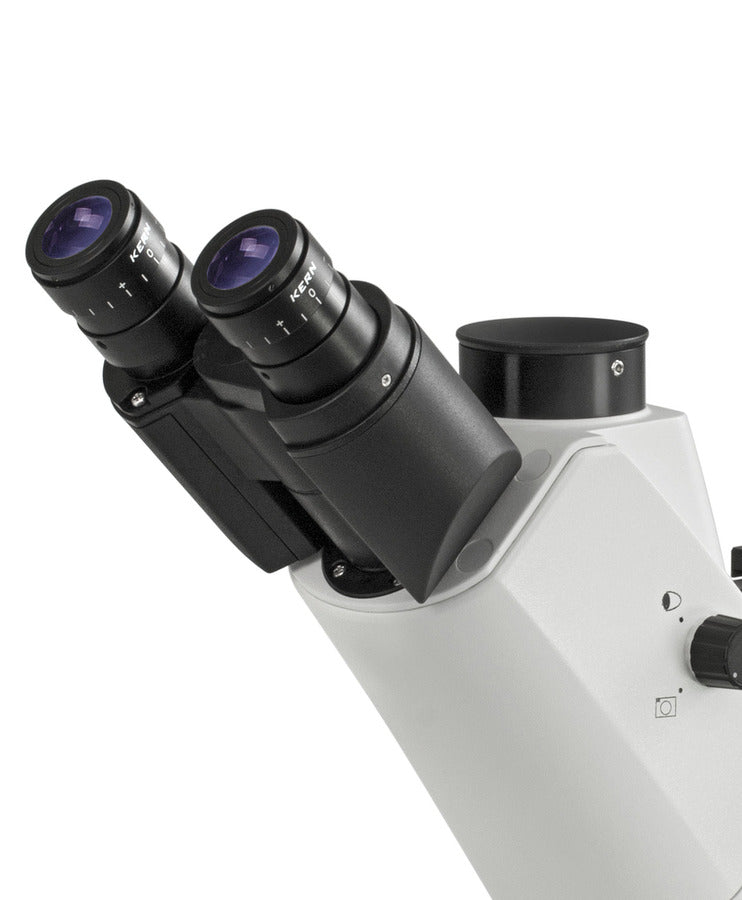

Trinocular eyepiece tube included as standard.
-
Supplied with a simple polarising unit (analyser and polariser).
-

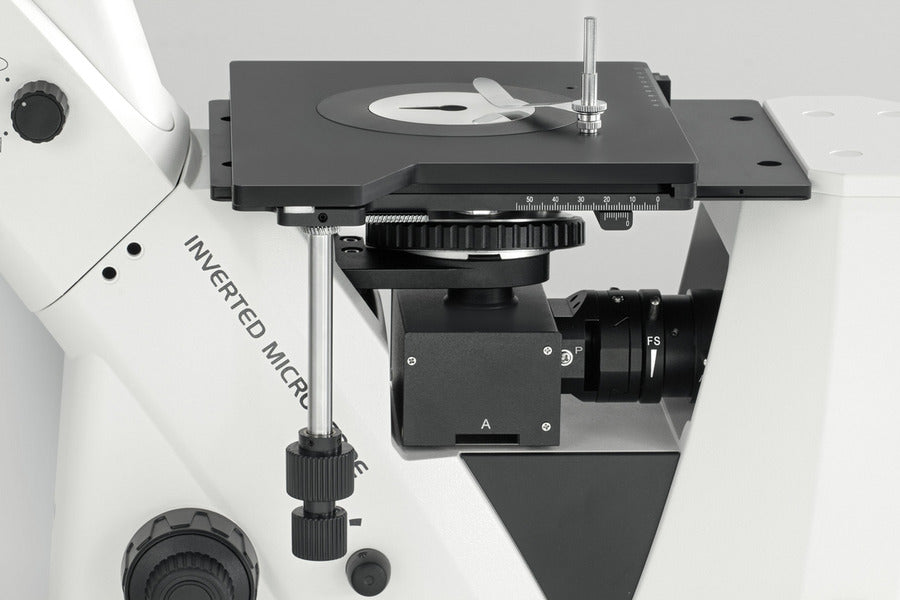

Large mechanical stage with smooth movement.
-
Coaxial coarse and fine focusing knobs on both sides.
-
Free OBB-A1515 camera adapter for microscope cameras.
-
Expandable with additional objectives and accessories.
-
Supplied with dust cover and instructions.
Applications
The OLM 171 is used in metallurgy, material testing, and quality assurance. It is designed for opaque and thick samples such as workpieces, surfaces, fold lines, and coatings.
Technical Data
-
Optical system: Infinity.
-
Tube type: Trinocular.
-
Ocular magnification: 10x.
-
Ocular visual field: 22 mm.
-
Nosepiece positions: 5.
-
Illuminance: Reflected light.
-
Illumination type incident: Halogen, 50 W.
-
Condenser: Standard, fixed.
-
Focusing: Coaxial coarse and fine drive.
-
Fine focus step: 0.002 mm.
-
Size (W×D×H): 747 × 271 × 379 mm.
Free Included Accessory - OBB-A1515 Camera Adapter
-
Adapter type: C-Mount.
-
Magnification: 0.5x.
-
Focusable: Yes.
-
Supported camera types: Microscope cameras.
-
Net weight: approx. 0.30 kg.
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
