KERN Metallurgical Microscope - OKM 173 - Trinocular - Objectives 5x,10x,20x,50x + FREE C-mount adapter
KERN OKM 173

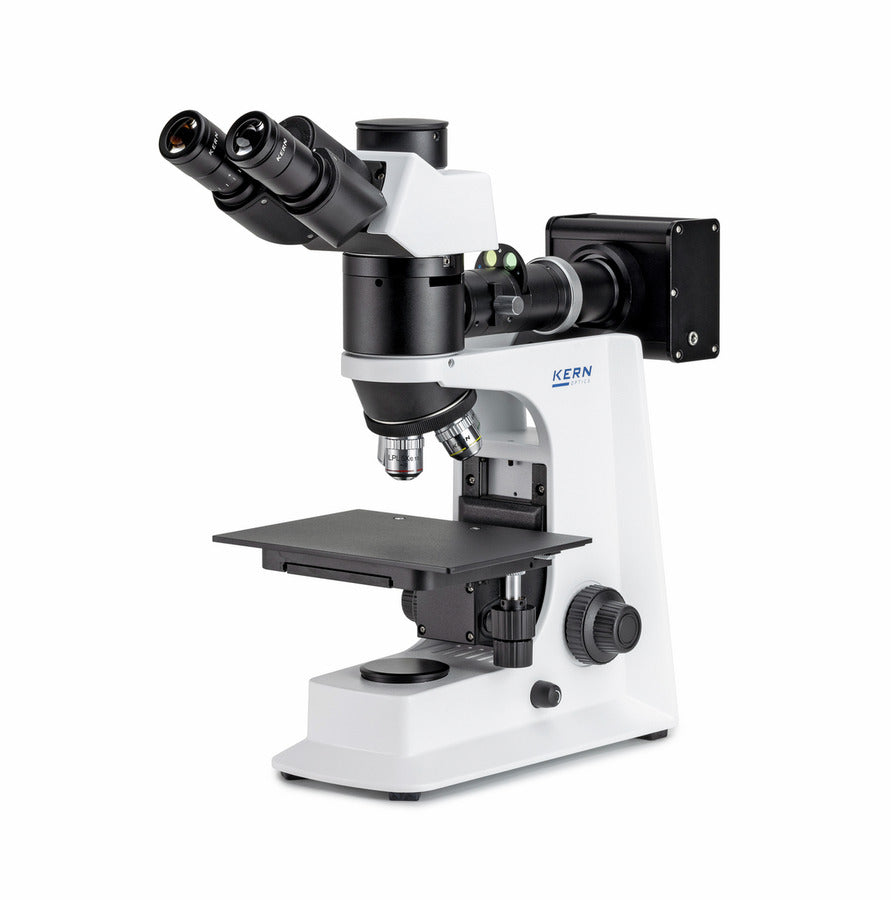

The OKM 173 is a metallurgical reflected light microscope designed for surface quality testing of raw materials and finished products. It delivers clear and high-contrast images with its strong 5 W LED illumination, which is continuously dimmable for flexible lighting control.

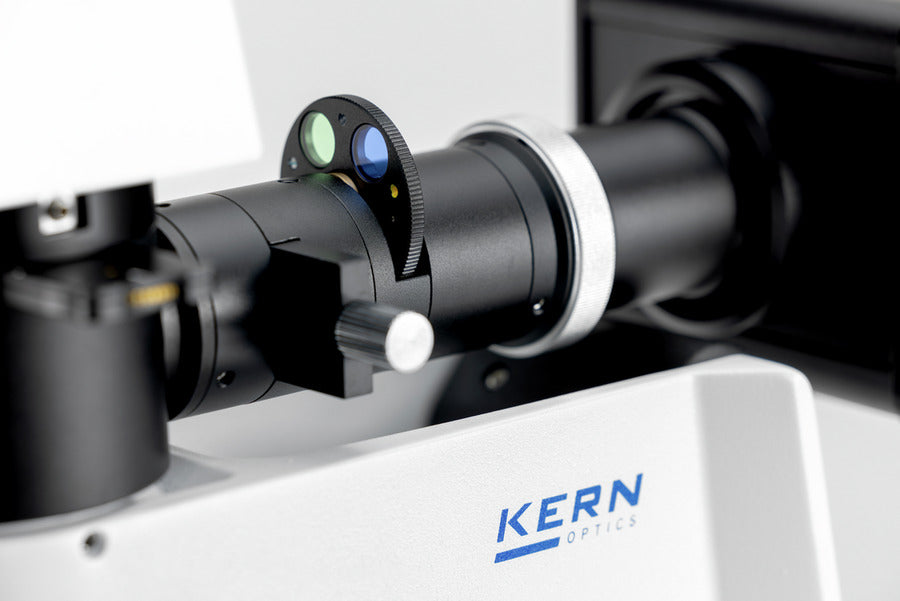

The illumination unit includes an integrated 5-slot filter wheel with blue, green, yellow, grey, and blank filters. This makes it easy to switch contrast and adapt the view for different samples. A large mechanical stage for reflected light applications is supplied as standard, along with coarse and fine focusing knobs on both sides for smooth and precise adjustment.
A simple polarising unit (analyser and polariser) is also included, adding further flexibility for examining coatings and reflective surfaces. For digital work, the microscope is delivered with a free OBB-A1515 camera adapter, a C-mount 0.5x adapter with adjustable focus, making it easy to connect a microscope camera.
Delivery also includes a dust cover, eye cups, and multilingual instructions.
Features
-
Metallurgical reflected light microscope for material inspection.
-
5 W LED illumination, dimmable for bright and high-contrast images.
-
Integrated 5-slot filter wheel with blue, green, yellow, grey, and blank filters.
-
Large mechanical stage for reflected light applications.
-
Smooth coarse and fine focusing knobs on both sides.
-
Supplied with a simple polarising unit (analyser and polariser).
-
Free OBB-A1515 C-mount camera adapter for microscope cameras.
-

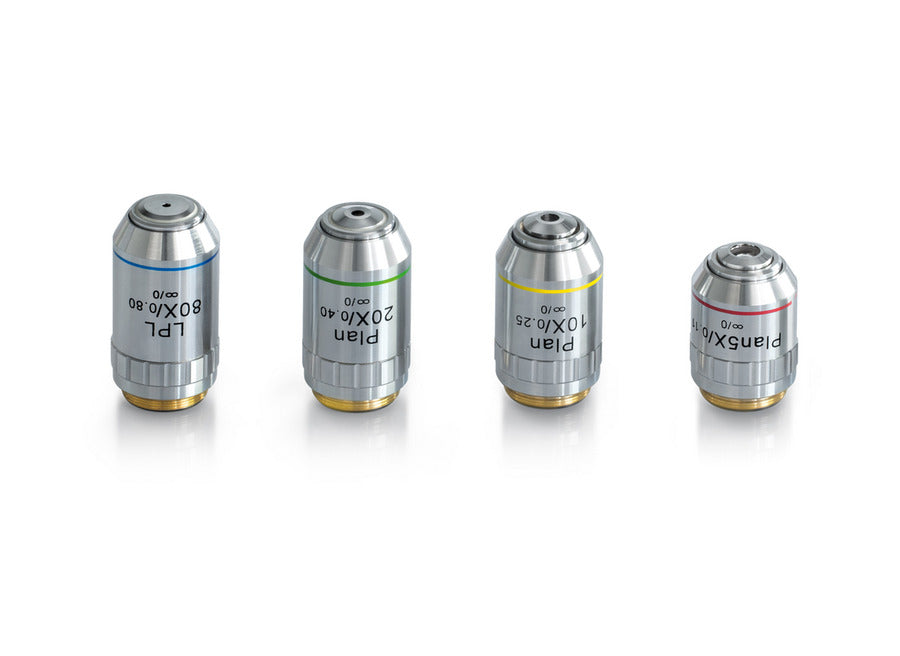

Expandable with additional eyepieces and objectives.
-
Supplied with dust cover, eye cups, and instructions.
Applications
The OKM 173 is used in metallurgy, material testing, and quality assurance. It is suitable for opaque and thick samples such as workpieces, surfaces, fold lines, and coatings.
Technical Data
-
Optical system: Infinity.
-
Tube type: Trinocular.
-
Ocular magnification: 10x.
-
Ocular visual field: 20 mm.
-
Nosepiece positions: 4.
-
Illuminance: Reflected light.
-
Illumination incident: LED, 5 W.
-
Illumination transmitted: None.
-
Focusing: Coaxial coarse and fine drive.
-
Fine focus step: 0.002 mm.
-
Size (W×D×H): 440 × 200 × 460 mm.
Free Included Accessory – OBB-A1515 Camera Adapter
-
Adapter type: C-Mount.
-
Magnification: 0.5x.
-
Focusable: Yes.
-
Supported camera types: Microscope cameras.
-
Net weight: approx. 0.30 kg.
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
