KERN Metallurgical Microscope - OKO 178 - Trinocular - Illumination (transmitted) LED - Objectives 5x,10x,20x,50x + FREE C-mount adapter

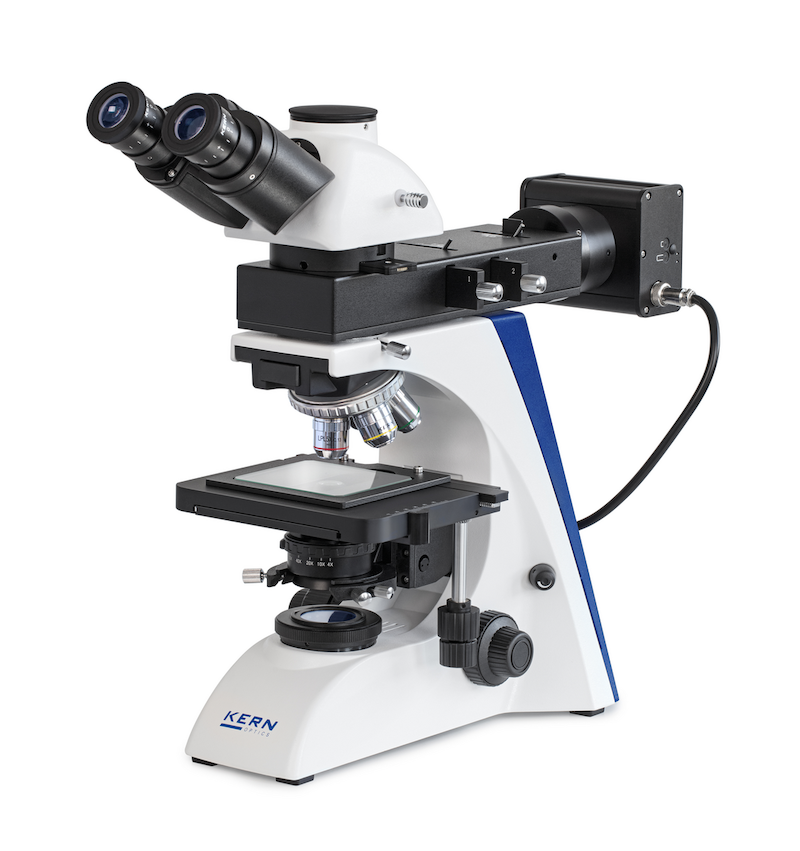

KERN OKO 178
The OKO 178 is a professional metallurgical microscope designed for testing metals and analysing surfaces. It combines LED incident illumination and LED transmitted illumination, making it versatile for different sample types.
The system includes a height-adjustable 1.25 Abbe condenser with centring and a field diaphragm for full Koehler illumination. This ensures precise and uniform lighting across the sample. An open mechanical angle stage is fitted as standard, allowing flexible positioning of workpieces.
A simple polarising unit (analyser and polariser) is also included, useful for examining surface coatings and materials with reflective properties. The OKO 178 can be extended with accessories such as additional eyepieces and objectives for longer working distances.
The microscope is supplied with a free OBB-A1515 camera adapter. This C-mount 0.5x adapter with adjustable focus makes it easy to connect a microscope camera to the trinocular tube for capturing and documenting images.
Delivery also includes the polarising unit, mechanical stage, dust cover, eye cups, and multilingual instructions.
Features
-
Professional metallurgical microscope with reflected and transmitted illumination.
-
5 W LED transmitted and 5 W LED incident light.
-
Koehler illumination with field diaphragm and 1.25 Abbe condenser (centrable).
-
Open mechanical angle stage as standard.
-
Supplied with simple polarising unit (analyser and polariser).
-
Trinocular eyepiece tube for observation and camera use.
-
Free OBB-A1515 camera adapter for microscope cameras.
-
Expandable with further objectives and eyepieces.
-
Supplied with dust cover, eye cups, and instructions.
Applications
The OKO 178 is used in metallurgy, material testing, and quality control. It is designed for opaque and thick samples such as workpieces, surfaces, fold lines, and coatings.
Technical Data
-
Optical system: Infinity.
-
Tube type: Trinocular.
-
Ocular magnification: 10x.
-
Ocular visual field: 22 mm.
-
Standard objectives: 5×, 10×, 20×, 50×.
-
Lens quality: Infinity semi apochromatic.
-
Nosepiece positions: 5.
-
Illuminance: Reflected and transmitted light.
-
Illumination transmitted: LED, 5 W.
-
Illumination incident: LED, 5 W.
-
Condenser: Abbe, 1.25, centreable.
-
Focusing: Coaxial coarse and fine drive.
-
Fine focus step: 0.002 mm.
-
Size (W×D×H): 550 × 200 × 460 mm.
Free Included Accessory - OBB-A1515 Camera Adapter
-
Adapter type: C-Mount.
-
Magnification: 0.5x.
-
Focusable: Yes.
-
Supported camera types: Microscope cameras.
-
Net weight: approx. 0.30 kg.
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
