KERN TVS 10KN100-LD

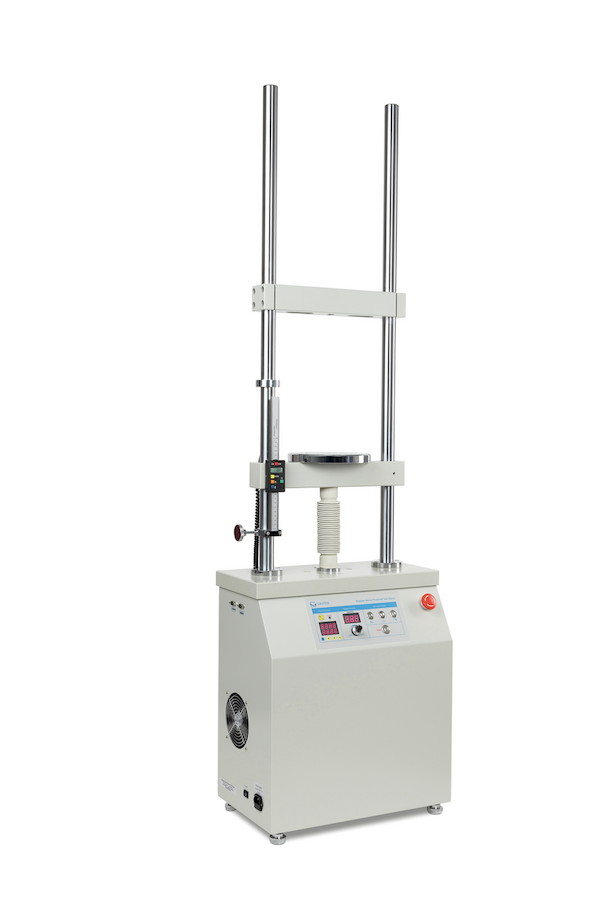

The TVS 10KN100-LD is a high-performance motorised test stand designed for professional tension and compression testing. Supplied as a complete five-in-one package, it includes the electronic test stand, LD length measuring system, interface cable, AFH LD data transfer software, the AFH 12 interface converter, and mounting. This makes it fully equipped for advanced test applications straight out of the box.
One of the most important features of this model is the integrated length measurement system based on a linear potentiometer. It provides a maximum measuring range of 210 mm, readability of 0.01 mm, and accuracy of 0.5% of maximum. Connected to the AFH LD software, it enables detailed force-displacement diagrams to be created on PC, ensuring reliable documentation and analysis for laboratories, industry, and quality control.
The stand is driven by a stepper motor, offering consistent precision even at very low speeds under full load. This motor guarantees smooth movement, accurate positioning, and exact stopping without overrun, even at maximum speed. Users can easily adjust displacement speeds using the clear display. Safety is also a priority, with electronic end switches that protect against exceeding the maximum traverse range.
The two column design provides a large working area and multiple fixing options. This makes it flexible enough to handle a wide range of applications. It is compatible with several KERN SAUTER force gauges, including FC, FH, FK, and FL. For external load cells starting from 1000 N, direct mounting on the traverse is possible. The stand also supports holders for FH devices with external load cells.
Features
-
Maximum force: 10 kN.
-
Traverse distance: 210 mm.
-
Stepper motor drive for precise control.
-
Speed range: 1 to 200 mm/min.
-
Length measuring device with data interface.
-
Electronic end switches for protection.
-
Dimensions: 400×250×1550 mm.
-
Material: metal, lacquered housing.
-
Power supply: 230 V AC, 50 Hz.
Applications
-
Plastics and metal industries.
-
Automotive and medical testing.
-
Packaging and quality control.
-
Research laboratories and teaching.
