KERN Motorised Test Stand - TVM 5000N230NL-LB - Electric - Max. force 5kN - Max. distance 210mm

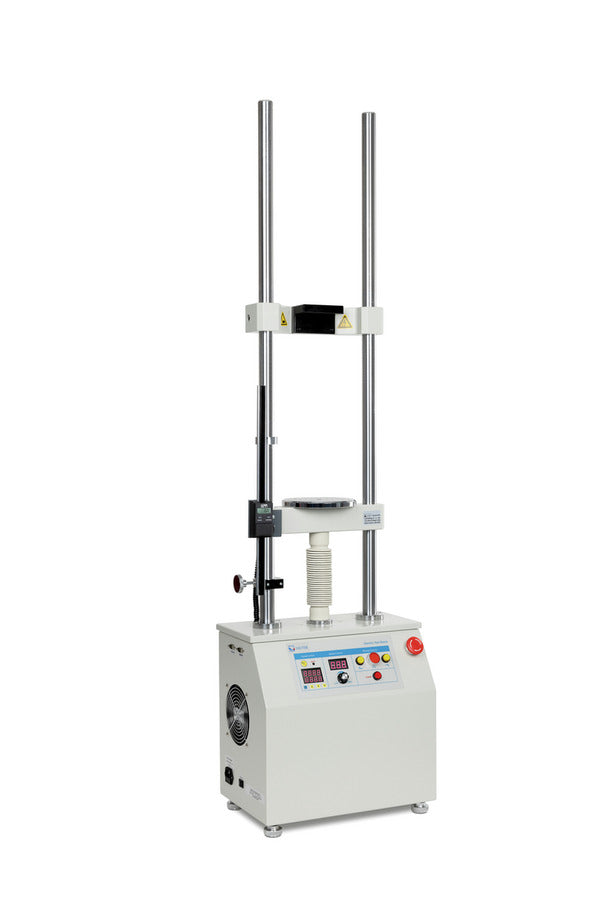

KERN TVM 5000N230NL-LB
This is a high precision (two column) motorised test stand designed for demanding force measurement applications in laboratories, production environments, and quality control. It combines mechanical strength with advanced electronics, making it suitable for both routine and research use.
This model is delivered as a five in one package, including the motorised test stand, digital length measuring device LB, interface cable, AFH FD software, two AFH 12 interface converters, and complete mounting. With the integrated LB digital measuring device, operators can create detailed force displacement diagrams directly on the PC. The system provides a maximum measuring range of 300 mm with a readability of 0,01 mm, ensuring precise displacement tracking throughout the entire test.
The TVM 5000N230NL-LB is equipped with an electric motor that allows controlled application of tension and compression forces up to 5 kN. The motor ensures accurate adjustment of displacement speed and delivers smooth motion for consistent test results. A force controlled automatic stop function is included, which halts testing automatically once the programmed load limit is reached. This safety feature is available when used with a SAUTER FH force gauge. To further protect the equipment and samples, the stand includes electronic end switches that prevent over travel beyond the maximum displacement.
One of the strengths of this test stand is its flexibility in mounting different SAUTER force measuring devices. External load cells from 1000 N upwards can be mounted directly on the traverse, while holders are available for FH series devices with external load cells. This makes the stand highly adaptable for a wide range of testing requirements, from small scale laboratory samples to larger industrial components.
The robust metal housing ensures durability even in challenging environments, while the vertical alignment provides a stable and ergonomic setup for operators. Combined with the supplied software and connectivity, the KERN TVM 5000N230NL-LB offers an all in one solution for force measurement, displacement analysis, and data transfer.
Features
-
Two column motorised test stand for tension and compression applications.
-
Five in one package with digital length measuring device LB and AFH FD software.
-
Maximum generated force: 5 kN.
-
Displacement measuring range: 300 mm with 0,01 mm readability.
-
Force controlled automatic stop when used with SAUTER FH gauge.
-
Electronic end switches prevent over travel.
-

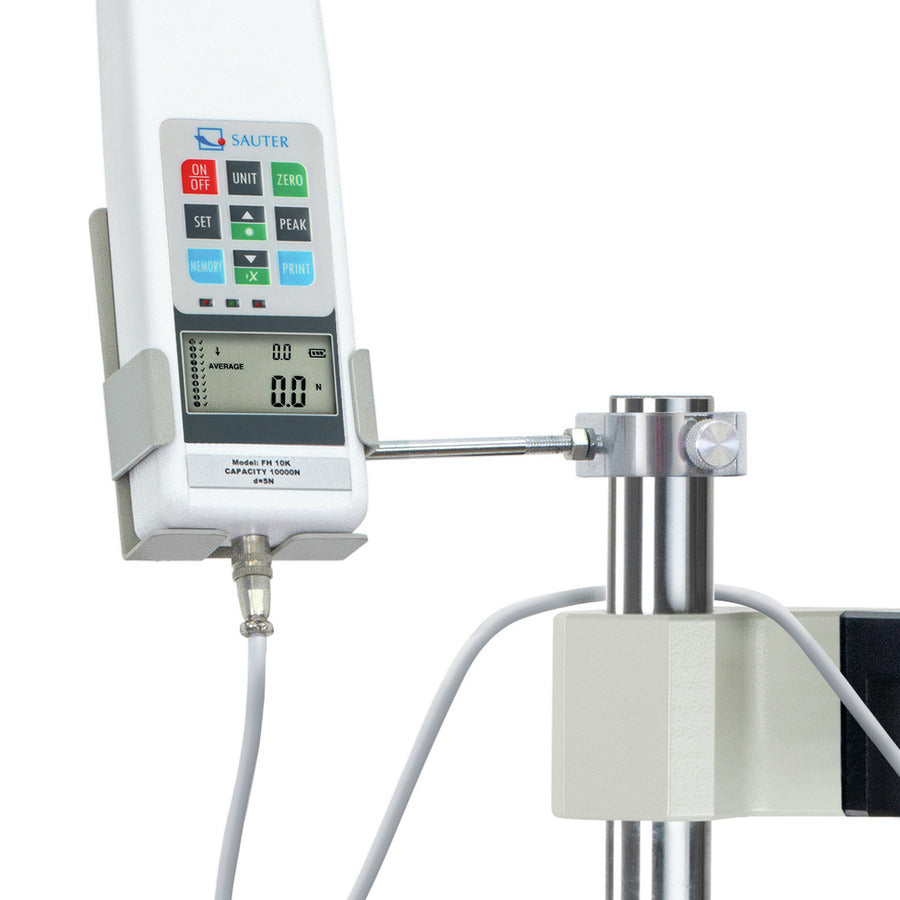

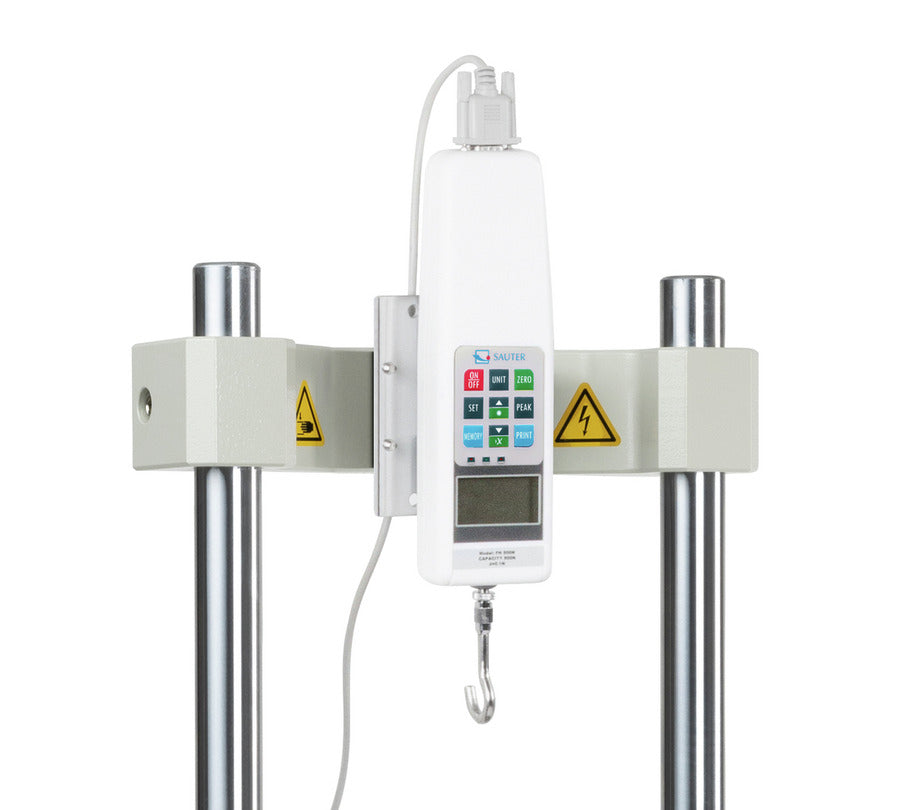

Flexible mounting for SAUTER FC, FH, FK, and FL measuring devices.
-
Rugged metal housing for long term use.
-
Vertical alignment for stable and ergonomic operation.
Technical Data
-
Maximum generated force: 5 kN.
-
Maximum traverse distance: 210 mm.
-
Drive type: Electric motor.
-
Length measuring device: Display and data interface.
-
Power supply: 220 V AC, 50 Hz.
-
Minimum transversal speed: 10 mm/min.
-
Maximum transversal speed: 230 mm/min.
-
Dimensions (W×D×H): 400×256×1535 mm.
-
Housing material: Metal, lacquered.
-
Alignment: Vertical.
