KERN Polarising Microscope - OPO 185 - Trinocular - Illumination (transmitted) LED - Objectives 4x,10x,20x,40x,50x + FREE C-mount adapter
KERN OPO 185

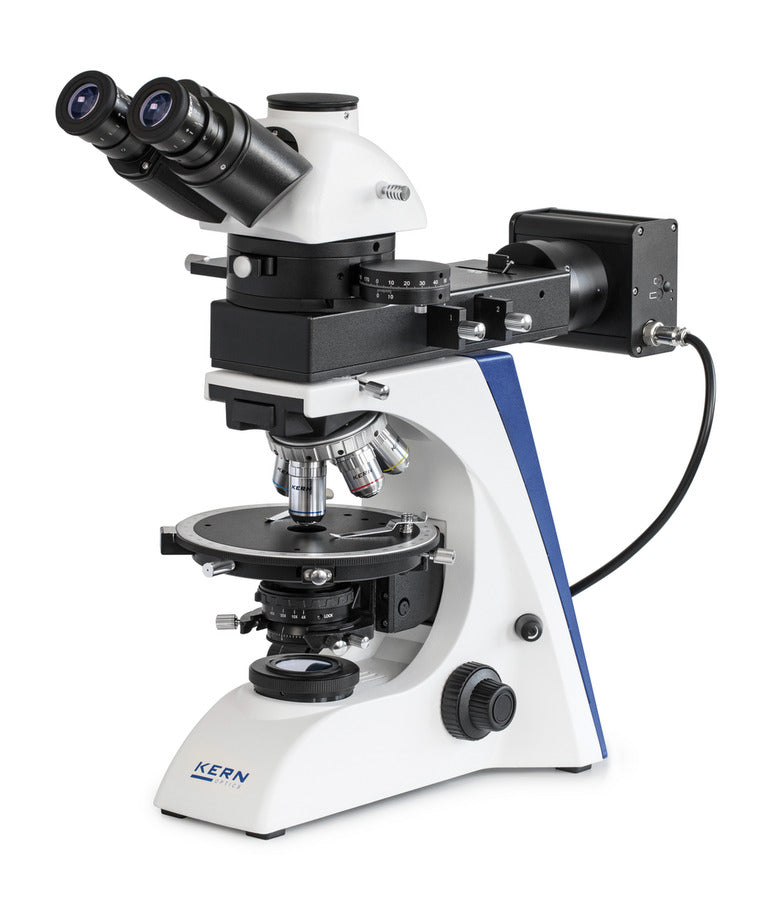

The OPO 185 is a professional polarising microscope designed for the study of minerals, crystals, and isotropic materials. It combines LED incident illumination with LED transmitted illumination, giving flexibility for both opaque and transparent samples.
The microscope is equipped with a swing-out Abbe condenser (0.9/1.25) that can be centred, allowing precise Koehler illumination. A 360° rotating stage with 1° division, 6' fine division, and locking function is supplied as standard, making it possible to carry out detailed polarisation studies.
A wide range of accessories can be added, such as a mechanical stage, additional objectives with long working distance, and filter units. To support digital work, the OPO 185 is supplied with a free OBB-A1515 camera adapter. This C-mount 0.5x adapter with adjustable focus makes it easy to connect a microscope camera to the trinocular tube.
Delivery also includes a dust cover, eye cups, and multilingual user instructions.
Features
-
Professional polarising microscope for mineral and crystal analysis.
-
LED incident and LED transmitted illumination, both 5 W.
-

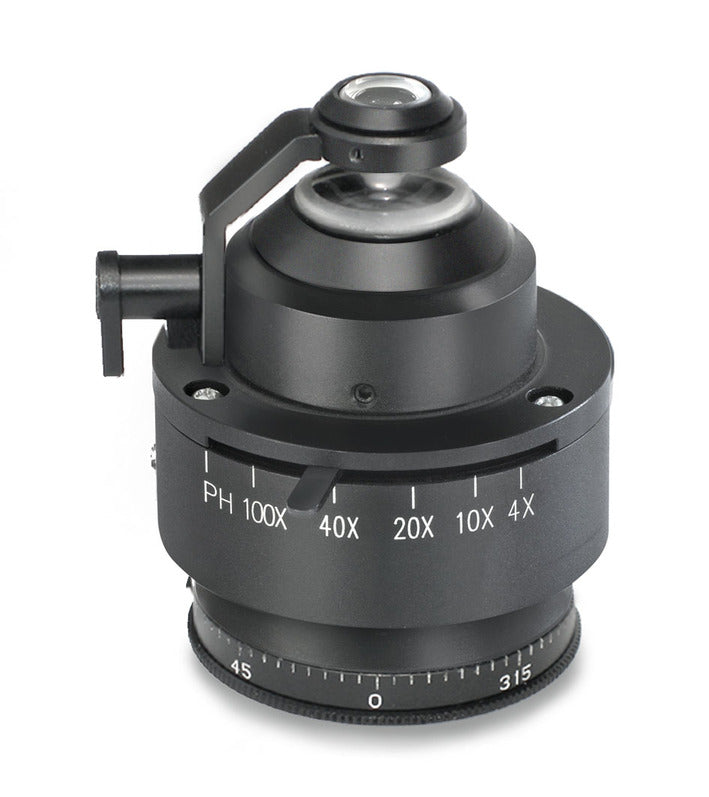

Swing-out Abbe condenser (0.9/1.25) with Koehler illumination.
-

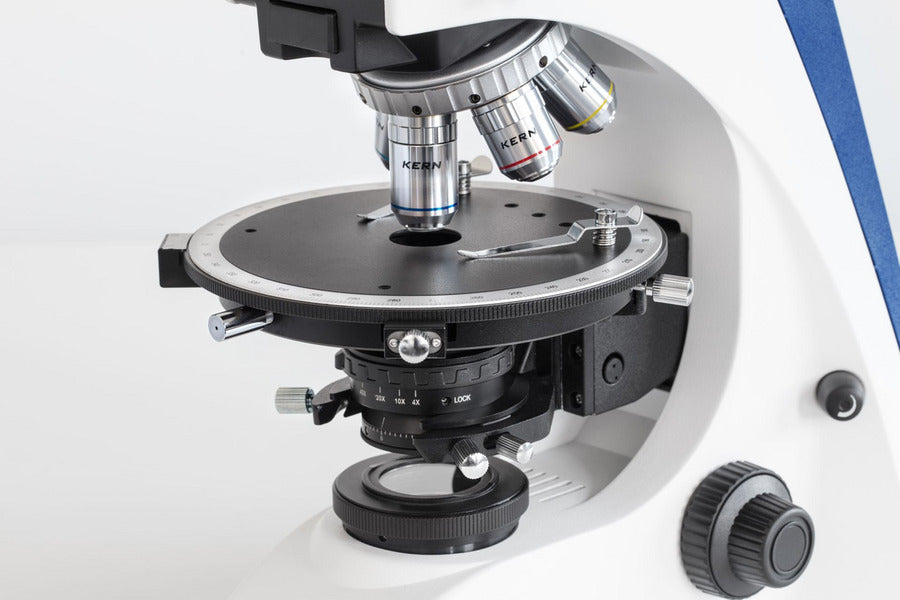

360° rotating stage with 1° division, 6' fine division, and locking function.
-
Wide range of optional accessories available.
-
Free OBB-A1515 C-mount camera adapter for microscope cameras.
-
Supplied with dust cover, eye cups, and instructions.
Applications
The OPO 185 is used in mineralogy, material testing, and crystal observation. It is suitable for more complex samples with polarising properties.
Technical Data
-
Optical system: Infinity.
-
Tube type: Trinocular.
-
Ocular magnification: 10x.
-
Ocular visual field: 20 mm.
-
Standard objectives: 4×, 10×, 20×, 40×, 50×.
-
Nosepiece positions: 5.
-
Illuminance: Reflected and transmitted light.
-
Illumination transmitted: LED, 5 W.
-
Illumination incident: LED, 5 W.
-
Condenser: Abbe, swing-out, 0.9 / 1.25, centreable.
-
Focusing: Coaxial coarse and fine drive.
-
Fine focus step: 0.002 mm.
-
Size (W×D×H): 500 × 200 × 500 mm.
Free Included Accessory - OBB-A1515 Camera Adapter
-
Adapter type: C-Mount.
-
Magnification: 0.5x.
-
Focusable: Yes.
-
Supported camera types: Microscope cameras.
-
Net weight: approx. 0.30 kg.
