KERN Ultrasonic Thickness Gauge - TO 100-0.01EE - Range 3mm - 100mm - Sound Velocity 200m/s - 19999 m/s - Frequency 5MHz
KERN TO 100-0.01EE

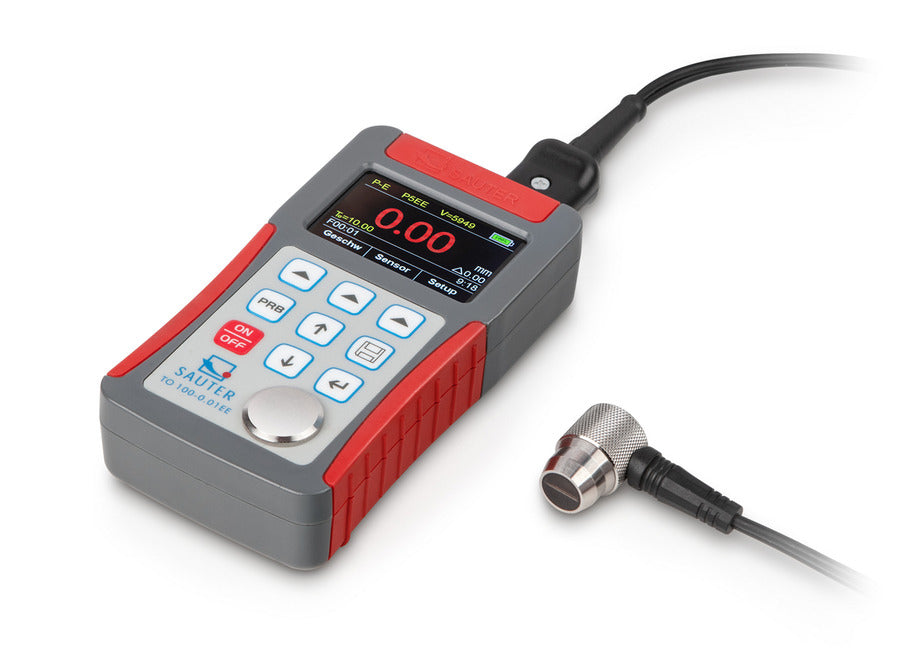

The TO 100-0.01EE is a premium ultrasonic thickness gauge designed for accurate, non-destructive measurement of material thickness. It uses new NT ultrasonic technology with automatic sensor adjustment and V-path correction for improved accuracy and faster display speed.
This device supports two measuring modes:
-
Pulse-Echo mode (up to 600 mm).
-
Echo-Echo mode (up to 100 mm), which allows measurement through coatings such as paint or anti-corrosion layers without needing to remove them.
It can be used on metals, plastics, ceramics, composites, epoxy, and glass. For high-precision work, the resolution can be switched between 0.1 mm and 0.01 mm.
The device features a colour TFT display with adjustable brightness, large memory for up to 100 datasets with 100 values each, and multiple calibration options for reliable results. Additional functions include scan mode, DIFF mode, limit alarms, and multilingual menus.

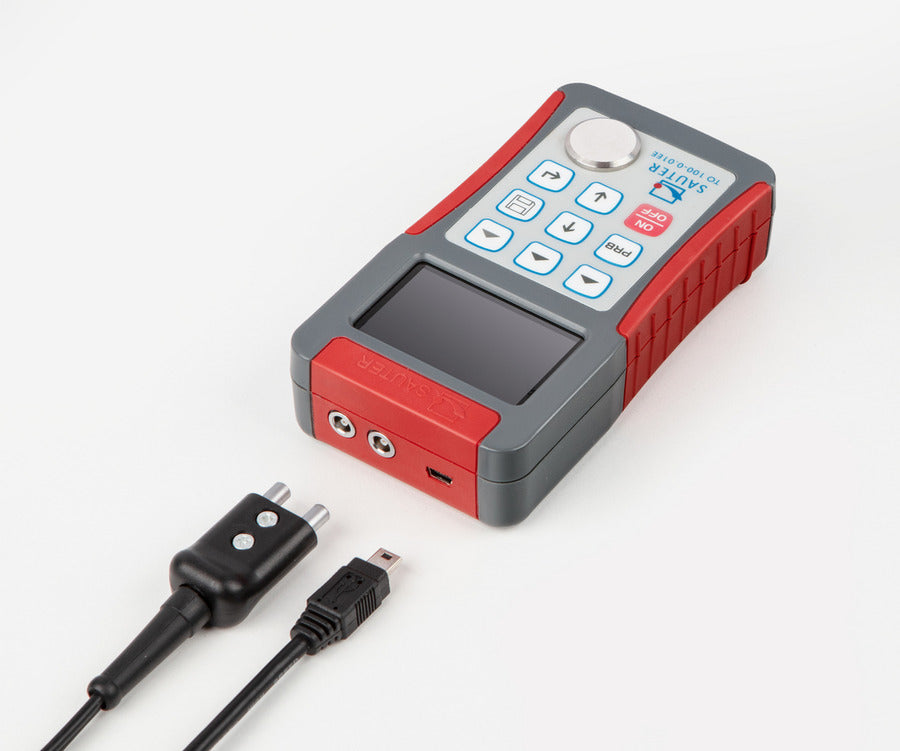

Supplied with an external measuring probe (Ø 10 mm), ultrasound gel, operating instructions, batteries, and a robust carrying case.
Features:
-
Premium ultrasonic thickness gauge with NT technology and V-path correction.
-
Pulse-Echo mode (0.7 – 600 mm) and Echo-Echo mode (3 – 100 mm).
-
Measures thickness through coatings without removing them.
-
High-precision mode with 0.01 mm readability.
-

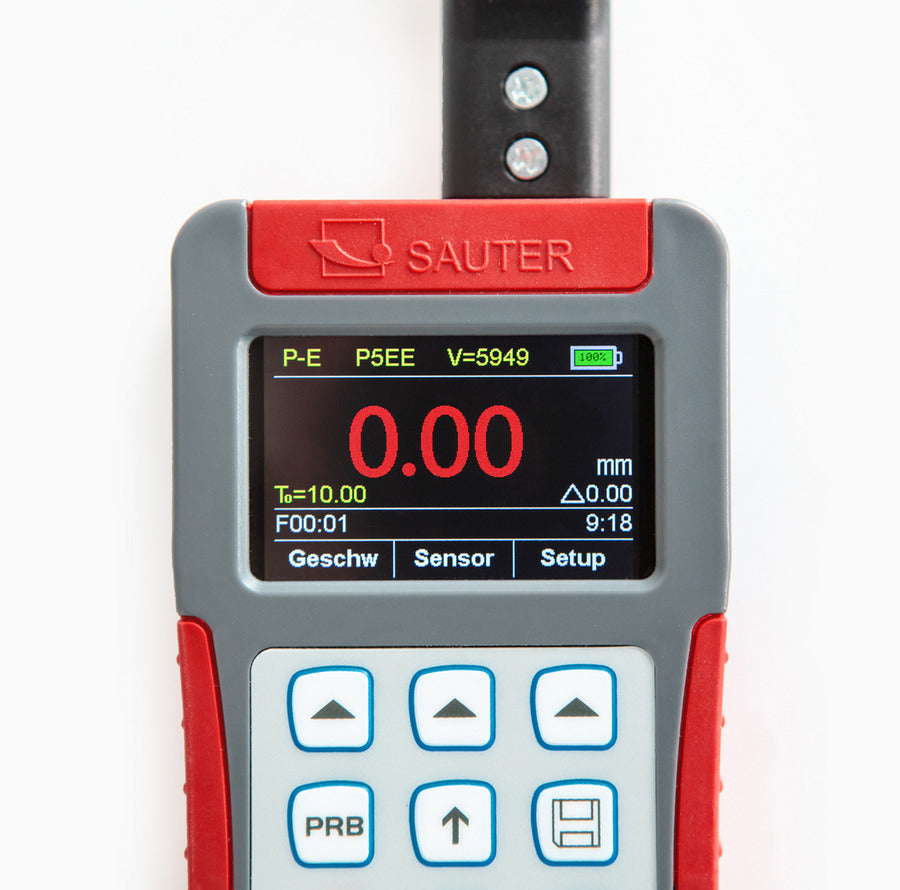

Large colour TFT display (320×240 px) with adjustable brightness.
-
Internal memory for 100 datasets with 100 values each.
-
3 calibration modes: 0-point, 1-point, and 2-point precision adjustment.
-
Measurement modes: Single, Scan, and DIFF.
-
Limit alarm with acoustic and visual signal.
-
Menu languages: DE, EN, FR, ES, IT.
-
Date and time stamp for stored measurements.
-
USB interface for data transfer.
-

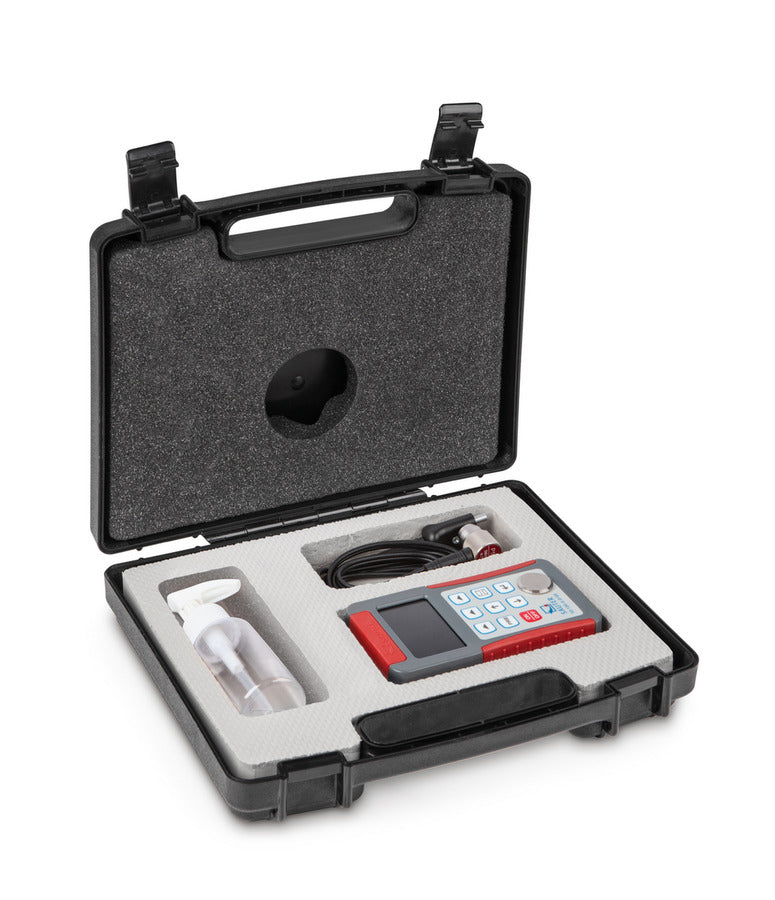

Delivered in a robust carrying case with probe, gel, batteries, and manual.
Technical Data:
-
Measuring range (Pulse-Echo): 0.7 – 600 mm.
-
Measuring range (Echo-Echo): 3 – 100 mm.
-
Readability: 0.01 mm.
-
Tolerance (% of Max): 0.4%.
-
Units: mm, inch.
-
Speed of sound: 200 – 19999 m/s.
-
Probe frequency: 5 MHz.
-
Battery: 2×1.5 V AA.
-
Material housing: Plastic.
-
Dimensions (W×D×H): 31×69×130 mm.
-
Interfaces: USB.
-
Cable length: 1 m.
**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
