KERN Video Microscope - OIV 345 - LCD - Illumination (incident) LED - Magnification 0,7x -5x
KERN OIV 345

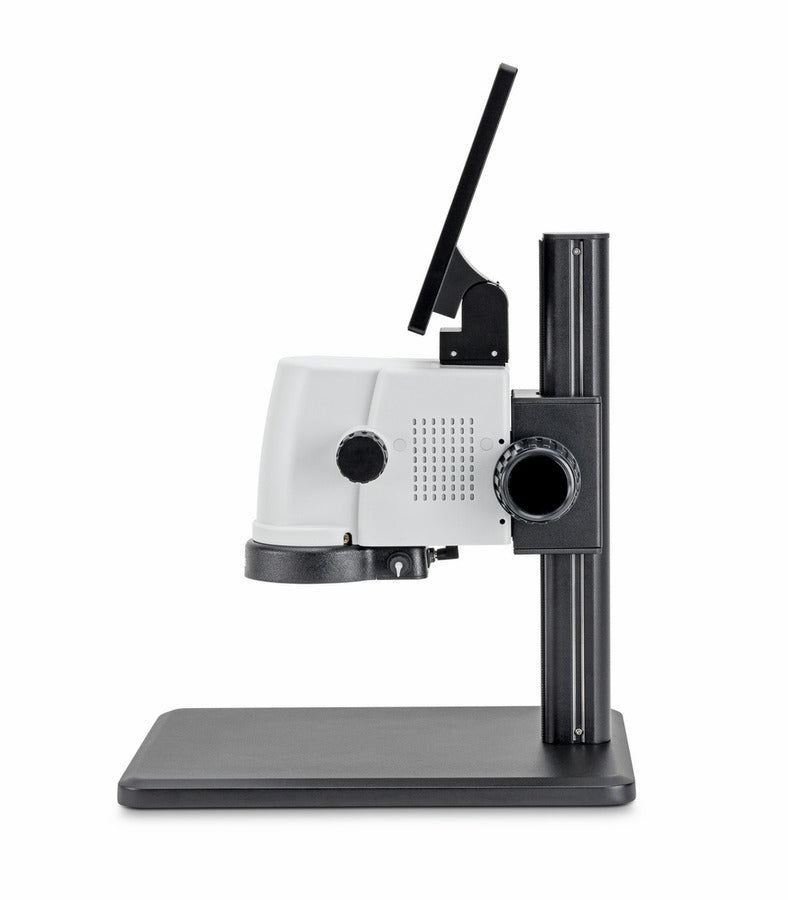

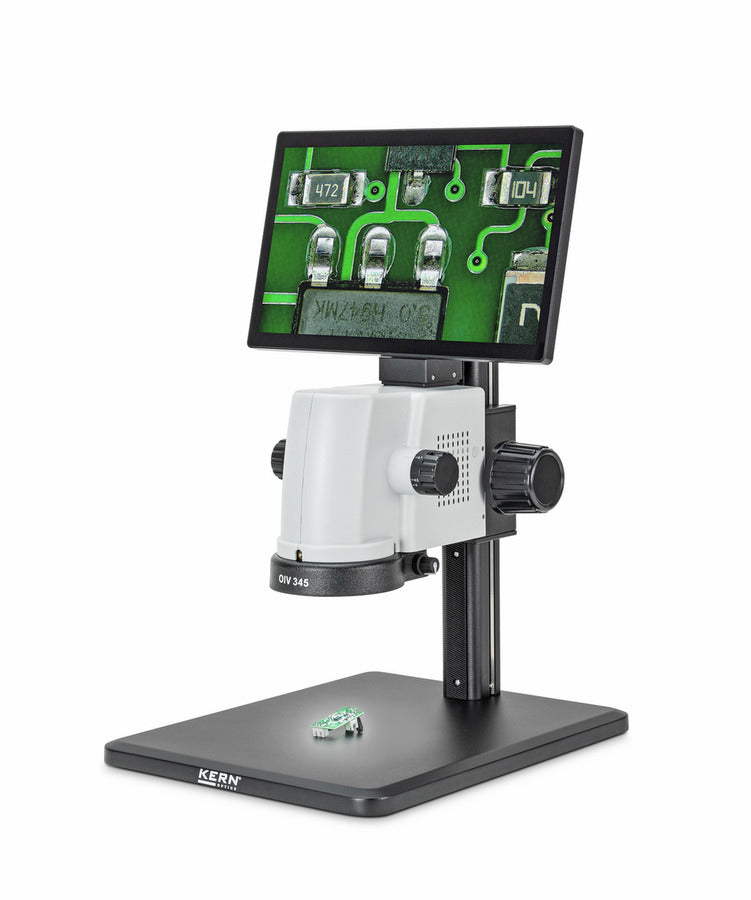

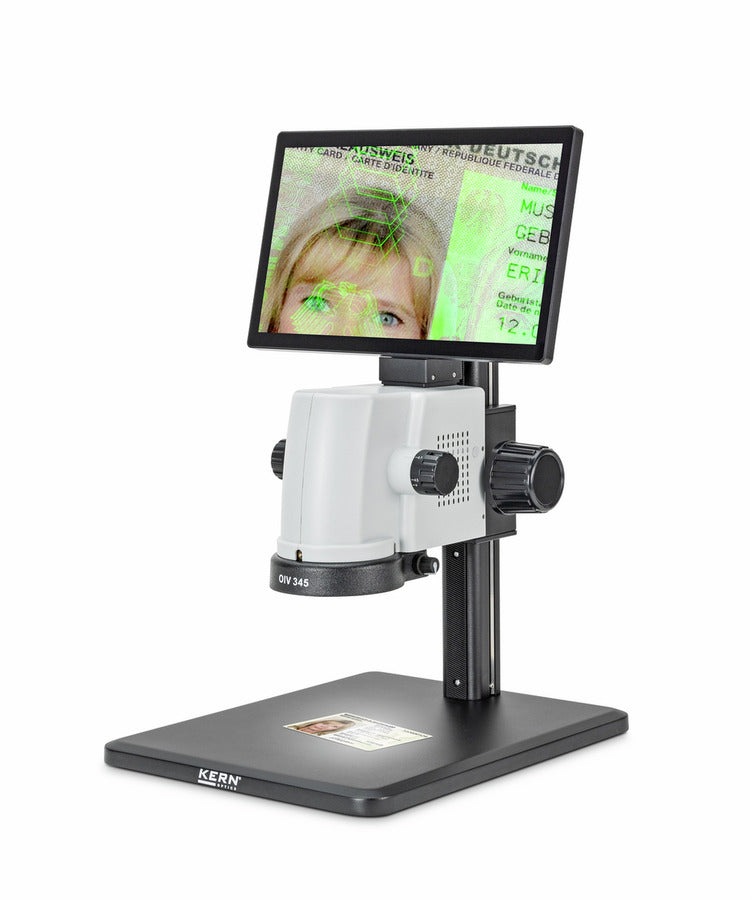

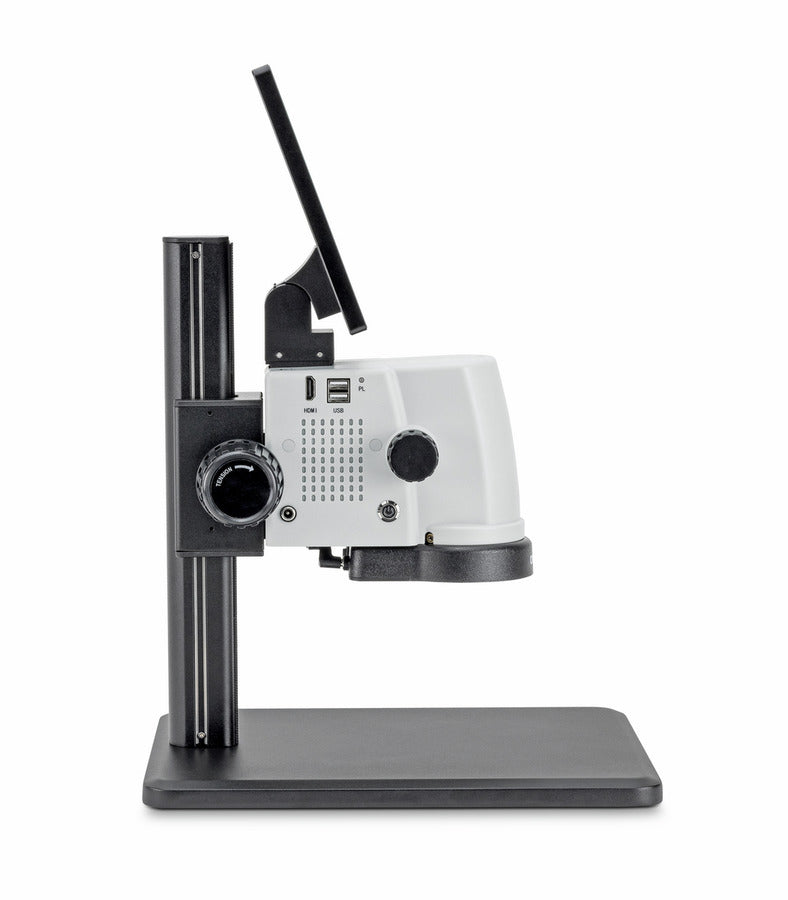

The OIV 345 is a video microscope designed for clear and simple digital stereo microscopy. It uses an axial optical system that lets you view samples directly on the built in HD display.
The LED ring light provides bright and even lighting, making it easy to observe and record samples. Its large working area is ideal for monitoring, checking, and documenting parts in industrial or laboratory use.
The optical zoom system offers clear focus throughout the entire range from 0.7x to 4.5x. The built in 5 MP camera delivers smooth live images with accurate colors. You can view your samples directly on the 12-inch HD screen made from toughened glass, which is easy to clean.
The included software and wireless USB mouse make it simple to record images, videos, and measurements. Files can be saved directly or viewed on a computer through the USB connection. It also supports an HDMI output, allowing you to connect another monitor and view two displays in real time.

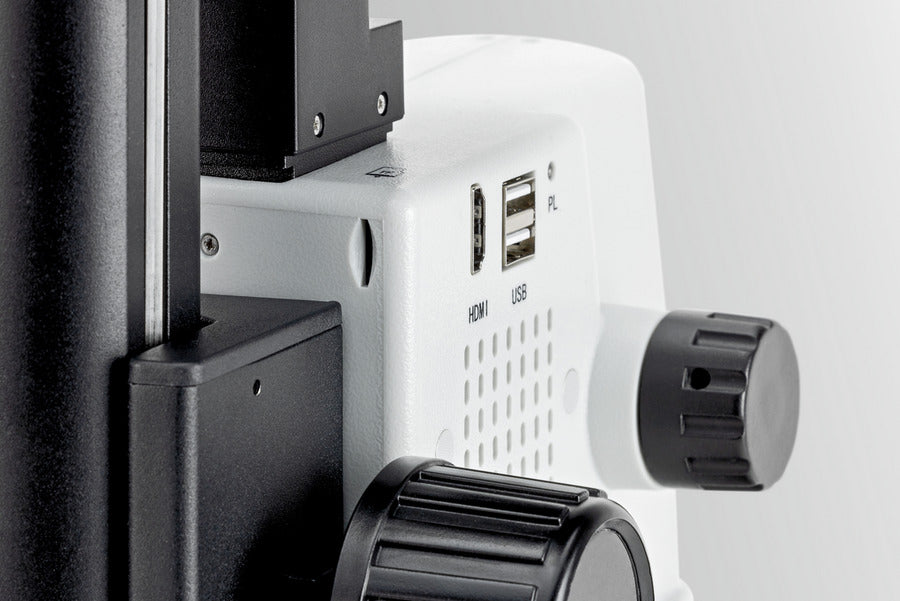

The zoom wheels feature click stops for precise magnification control, helping with consistent calibration and documentation. The microscope includes HDMI, USB 2.0, and MicroSD ports for easy data transfer and storage.
A 32 GB USB stick, a wireless mouse, and a dust cover are included, along with multi-language instructions.
Technical Data
-
Optical system: Axial
-
Tube type: Display
-
Magnification ratio: 6.4:1
-
Zoom [Min]: 0.7x
-
Zoom [Max]: 4.5x
-
Illuminance: Reflected light
-
Illumination type incident light: LED
-
Illumination intensity incident light: 3 W
-
Focusing mechanism: Coarse drive
-
Display type: LCD
-
Display screen size: 12"
-
Display resolution: 1920×1080 HD
-
Camera - Sensor type: Sony CMOS
-
Camera - Sensor size: 1/2.8"
-
Camera - Resolution: 5 MP
-
Camera - Framerate: 60 fps
-
Interfaces: USB 2.0, HDMI, MicroSD card slot
-
Working distance: 100 mm
-
Sample height [Max]: 110 mm
-
Stand type: Mechanical
-
Dimension (W×D×H): 320×260×450 mm
-
System requirements CPU: Intel Core i3 or higher, AMD Ryzen 5 or higher
-
System requirements RAM: 8 GB or more
-
System requirements SSD storage: 128 GB SSD or more
-
System requirements graphics card: NVIDIA GeForce RTX 3060, AMD Radeon RX 6600
-
System requirements screen: 20" HD or larger
-
System requirements clock speeds: from 2.8 GHz


**All our products are brand new, shipped in the original packaging, and include manufacturer warranty**
