Zevadent - Optimal 09
Optimal 09

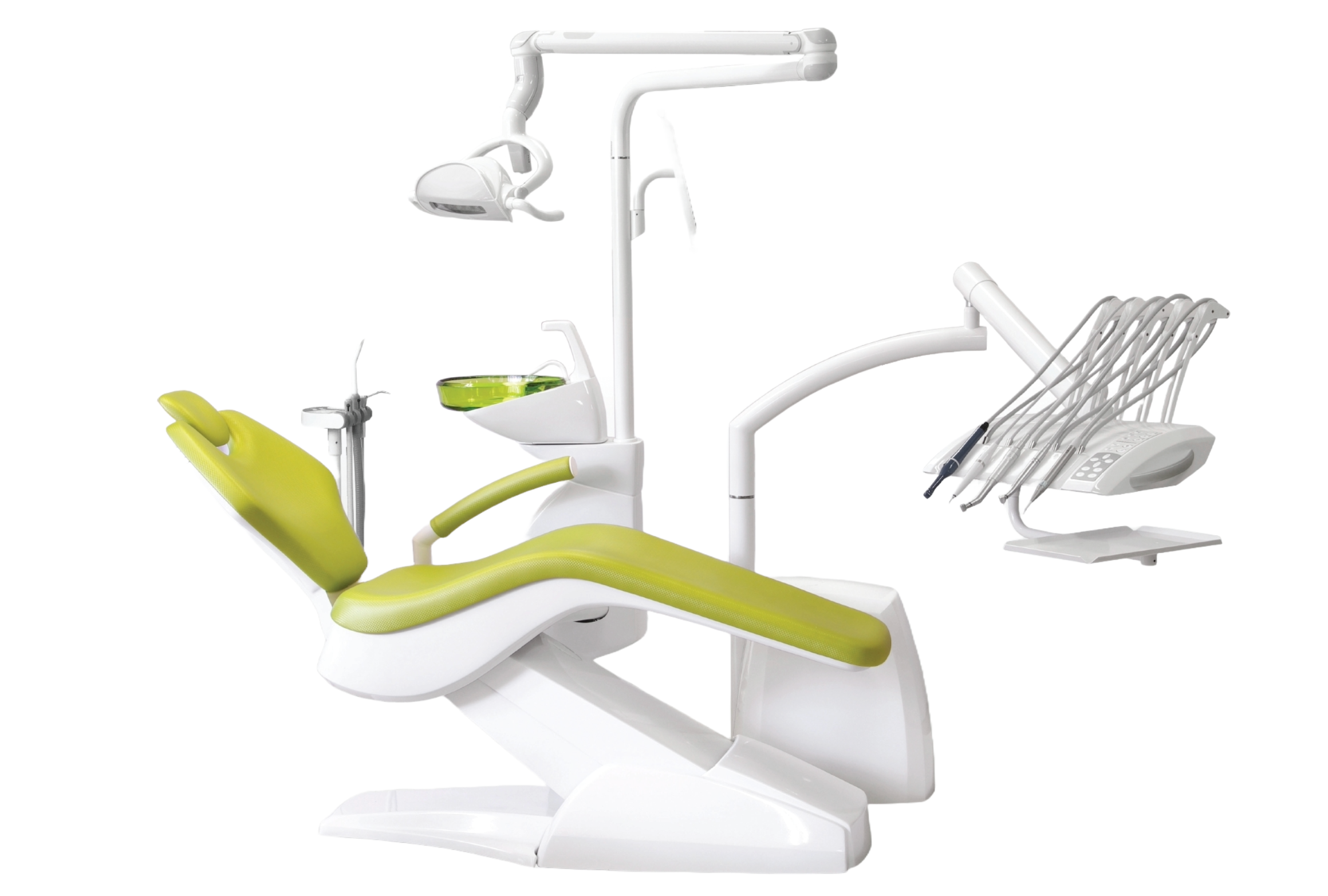

This dental treatment chair has 4 programmable positions and 3 default positions, plus an adjustable headrest with a safety lock. The power box, dentist table arm, lamp arm, and cuspidor block are all attached to the base of the chair. This keeps everything close and easy to reach, both for the dentist and the patient.
The cuspidor block is made from hardened mineral glass. It is strong, scratch resistant, and comes in different colors. The lamp arm can hold an LCD screen or tray tables if needed. An amalgam separator can also be added.
Powered Chair
The Electromechanically powered chair comes with 4 programmable and 3 default positions, an adjustable headrest with safety detent. The power box, pantographic arm of the dentist’s table, operating lamp, and cuspidor block are all attached to the base of the chair, to ensure easy access and maximal comfort of the dentist and patients.
Made out of hardened mineral glass, the cuspidor block comes in variety of colors and is scratch resistant. Pantographic arm of lamp can be equipped with LCD screen and tray tables.
We provide the option for an amalgam separator.

Dentist Table
The Dentist’s table can be equipped with up to 6 instruments. It comes with 3 function syringe, turbine hand pieces Midwest with light, and micro motor with light.
Optional equipment includes second micro motor with light or turbine, ultrasonic scaler with light, and polymerization lamp.

Assistant Unit
The Assistant’s table includes a simple foil keyboard for controlling the chair, programming the bowl rinsing and glass filling, as well as a 3-function syringe and suction hose
Optional equipment includes- high volume (HVE) and low volume suction hoses, polymerization lamp, and intraoral camera. Suction hose jets are removable for disinfection or sterilization purposes.

Unit
The Multifunctional foot control (VFC) allows you to easily regulate the speed of the micro motor and the intensity of the ultrasonic scaler.
The Optimal 09 unit can carry an LCD monitor with intraoral camera.
Technical Information
-
Supply voltage: 230 V (±10 %)
-
Network frequency: 50 to 60 Hz
-
LED lamp: 17 V / 30 W / min. 40000 Lx
-
Max power at 230 V / 50 Hz: 250 VA
-
Protection class: I
-
Electric shock protection: type B
-
Classification: no measuring function / non sterile
-
Kit weight: 155 kg (±5 %)
-
Max tray load: 2 kg
-
Max chair load: 200 kg
-
Water inlet pressure: 0.3 to 0.6 MPa
-
Air inlet pressure: 0.45 to 0.8 MPa
Extra Options
-
water heater
-
LED x ray viewer
-
right side tilting armrest
-
multifunction foot control with 2 pedals
-
memory foam upholstery
-
protective seat pad
-
extra memory foam pillow
