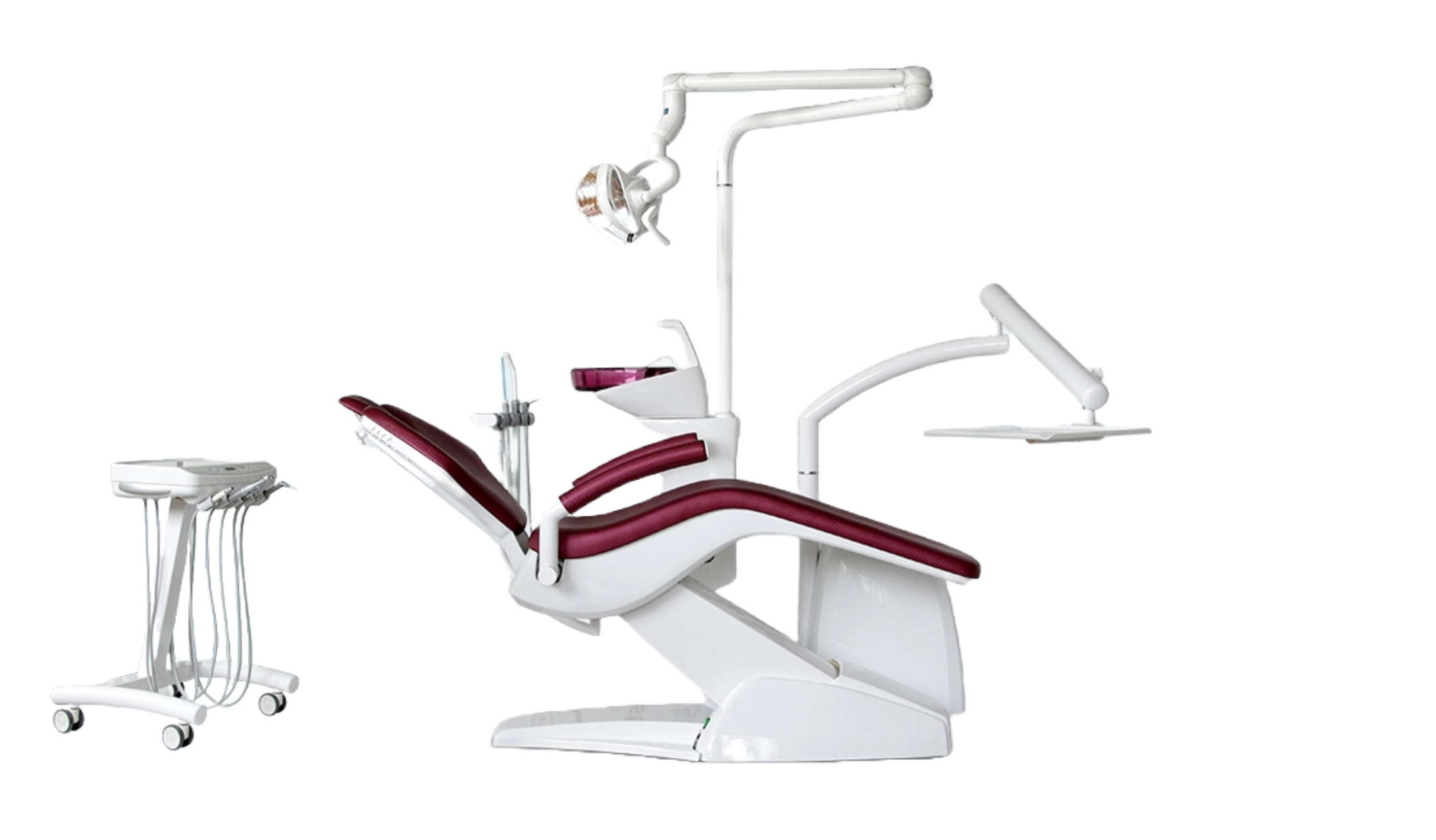

Optimal 09C
This treatment chair is the complete version of the Optimal line. It is made for orthodontics and surgery clinics that need more comfort, more control, and more working space. It has 7 memory positions and can be adjusted even for very tall patients over 200 cm. The rotary cuspidor matches the upholstery color and gives the unit a clean look.
Electromechanically powered chair
The chair is powered electromechanically and includes 4 programmable positions and 3 default positions. It comes with an adjustable headrest with safety detent. All key elements are attached to the base of the chair. This includes the power box, the pantographic arm of the dentist table, the lamp, and the cuspidor block. This setup keeps the working area open and easy to access.
The cuspidor block is made from hardened mineral glass. It is scratch resistant and available in multiple colors. The lamp arm can hold an LCD screen and tray tables if needed. An amalgam separator can also be added.
Wheeled cart with dentist table
The dentist table is placed on an external wheeled cart with adjustable height. It can hold up to 6 instruments. The standard setup includes a 3 function syringe, turbine hand pieces Midwest with light, and a micro motor with light.
Optional additions include a second micro motor or turbine, an ultrasonic scaler with light, and a polymerisation lamp.

Assistant table
The Assistant’s table includes a simple foil keyboard for controlling the chair, programming the bowl rinsing and glass filling, as well as a 3 function syringe and suction hose.
Optional equipment includes high volume (HVE) and low volume suction hoses, polymerisation lamp, and intraoral camera. Suction hose jets are removable for disinfection or sterilisation purposes.

Unit
The Multifunctional foot-control (VFC) allows you to easily regulate the speed of the micro-motor and the intensity of the ultrasonic scaler.
The Optimal 09 C unit can carry an LCD monitor with intraoral camera.

Additional options
-
Water heater.
-
LED X ray viewer.
-
Right side tilting arm rest.
-
Multifunction foot control with two pedals.
-
Comfort upholstery with memory foam.
-
Protective pad for the seat.
-
Extra memory foam pillow.
Technical information
-
Supply voltage: 230 V (plus or minus 10 percent).
-
Network frequency: 50 to 60 Hz.
-
LED lamp: 17 V / 30 W / minimum 40 000 Lx.
-
Max power at 230 V and 50 Hz: 250 VA.
-
Protection class: I.
-
Electric shock protection: type B.
-
Classification: no measuring function and non sterile.
-
Kit weight: 155 kg (plus or minus 5 percent).
-
Max tray load: 2 kg.
-
Max chair load: 200 kg.
-
Water inlet pressure: 0.3 to 0.6 MPa.
-
Air inlet pressure: 0.45 to 0.8 MPa.
| Features | OPTIMAL 09L | OPTIMAL 09 | OPTIMAL 09C |
|---|---|---|---|
| Version type | Light version | Standard version | Complete version |
| Doctor table | Basic | Standard | Premium extended |
| Assistant arm | Basic | Standard | Advanced |
| Lamp | Basic LED | Standard LED | Premium LED with sensor |
| Water unit | Basic unit | Standard unit | Full multifunction unit |
| Instrument package | Basic set | Standard set | Full set |
